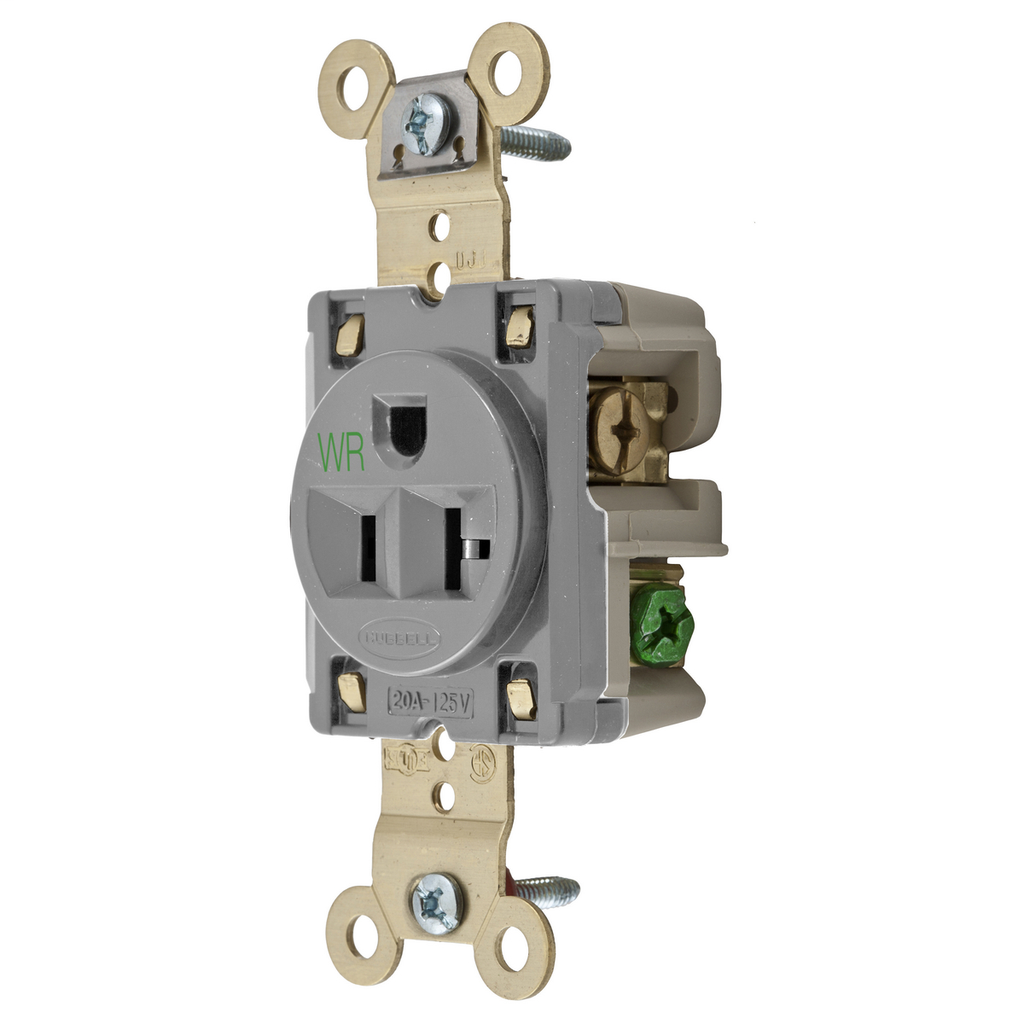

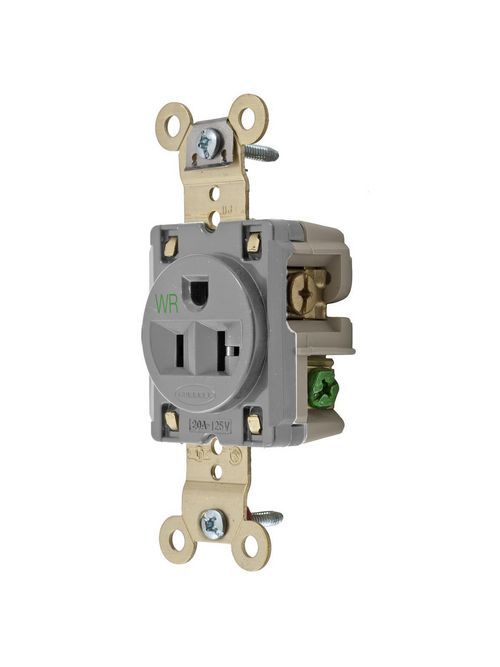

HWDK HBL5361GRYWR WR RCPT, SING, SB
$31.47/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5361GRYWR
North Coast Part # 822443

Features

  • Weather-resistance complies with national electrical code requirements
  • Back wired ground terminal allows faster, easier installation
  • Finder Groove Face
  • Weather Resistant- Self Grounding

Performance

  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Environmental - Flammability - UL 94 V-2 or better
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Industry Standard(s)

  • Fed. Spec. W-C-600
  • UL Listed to UL498 File No. E2186
  • NEMA® WD-6 Compliant
  • Certified to CSA 22.2, No. 42 File 285

Specifications

  • Amperage Rating: 20 A
  • Application: Extra Heavy Duty Specification Grade
  • Carton Quantity: 10 EA
  • Color: Gray
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Dimensions: 3.28 in x 1.63 in x 1.19 in
  • Display Size: Standard Sized Product
  • Environmental Conditions: Weather Resistant
  • Height: 1.19 in
  • Horsepower - Maximum: 1
  • Item Type: Single
  • Length: 3.28 in
  • Material - Mounting Hardware: Screw Mounting
  • Minimum Order Quantity: 1 EA
  • Nema Rating: 5-20R
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Single Phase
  • SAP Material Group 5: A10
  • Series: Extra Heavy Duty
  • Style: Finder Groove Face
  • Type: Weather Resistant
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W
  • Weight: 0.2 lb
  • Width: 1.63 in
  • Wire Size: #12 AWG to #10 AWG
  • EU RoHS Indicator: No
  • Each - Length: 4.160 in
  • Each - Height: 1.540 in
  • Each - Width: 1.790 in
  • Size: 3.28 in x 1.63 in x 1.19 in
  • Special Features: Weather Resistant- Self Grounding
  • Standard: Certified to CSA 22.2, No. 42 File 285 || Fed. Spec. W-C-600 || NEMA® WD-6 Compliant || UL Listed to UL498 File No. E2186

Overview

UPC 78358532065
GTiN 00783585320656
Length 3.28 in
Width 1.790 in
Size Standard Sized Product
Color Gray
Voltage 125 Volt
Type Weather Resistant
Material Thermoplastic
Product Series Extra Heavy Duty
Applications Heavy Duty Industrial
Height 1.540 in
Weight 0.2 lb
Wire Size 14-12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
