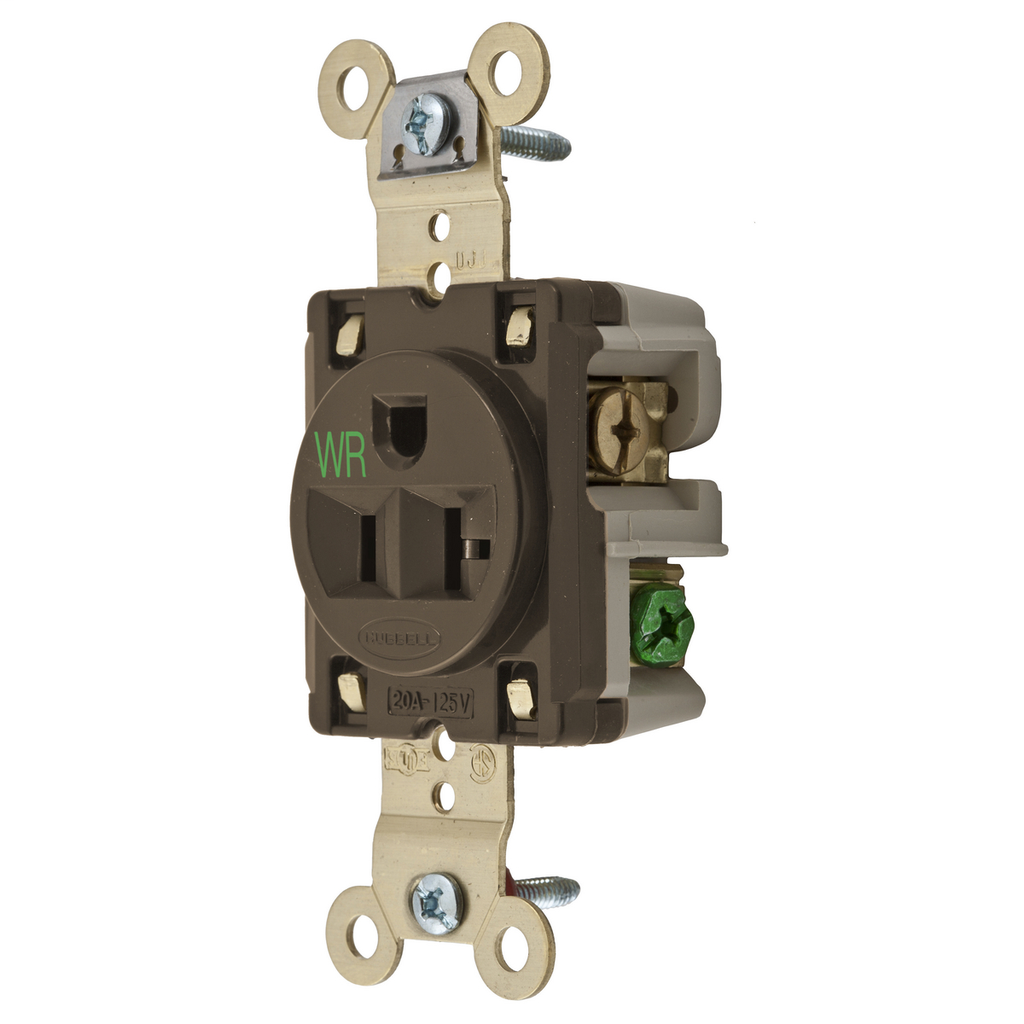

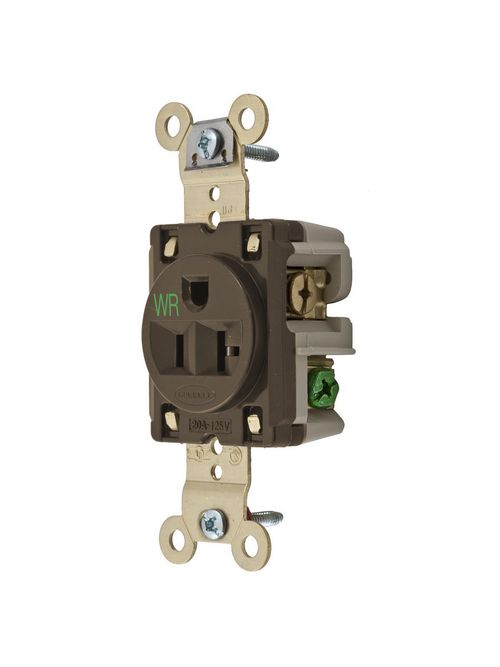

HCI HBL5361WR WR RCPT, SING, SB, HD
$31.47/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5361WR
North Coast Part # 681001

Features

  • Weather-resistance complies with national electrical code requirements
  • Back wired ground terminal allows faster, easier installation
  • Finder Groove Face

Specifications

General

  • Application: Extra Heavy Duty Specification Grade
  • Color: Brown
  • Environmental Conditions: Weather Resistant
  • Horsepower - Maximum: 1
  • Item Type: Single
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Extra Heavy Duty
  • Style: Finder Groove Face
  • Type: Single Receptacle
  • UPC: 783585320632

Dimensions

  • Dimensions: 3.28 in x 1.63 in x 1.19 in
  • Display Size: Standard Sized Product
  • Height: 1.19 in
  • Length: 3.28 in
  • Weight: 0.2 lb
  • Width: 1.63 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 | Fed. Spec. W-C-602 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358532063
GTiN 00783585320632
Length 3.28 in
Width 1.63 in
Size Standard Sized Product
Color Brown
Voltage 125 Volt
Type Single Receptacle
Material Thermoplastic
Product Series Extra Heavy Duty
Applications Extra Heavy Duty
Height 1.19 in
Weight 0.2 lb
Wire Size 14-12 AWG
Wattage 2,500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard No. 42 File 285,NEMA WD-6,Fed. Spec. W-C-602,CSA 22.2,UL498 File No. E2186,UL
