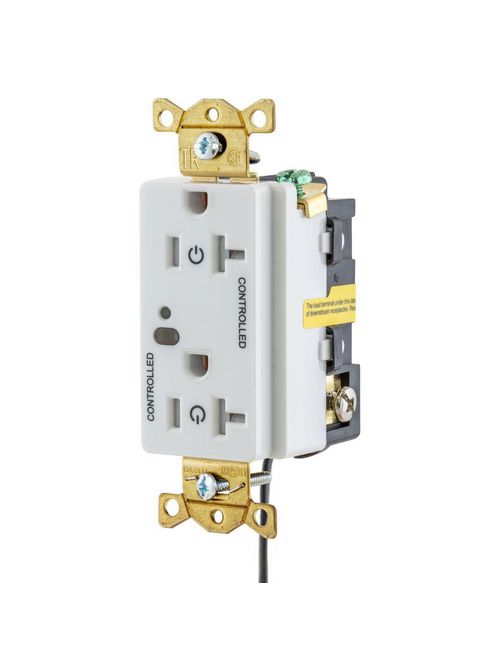

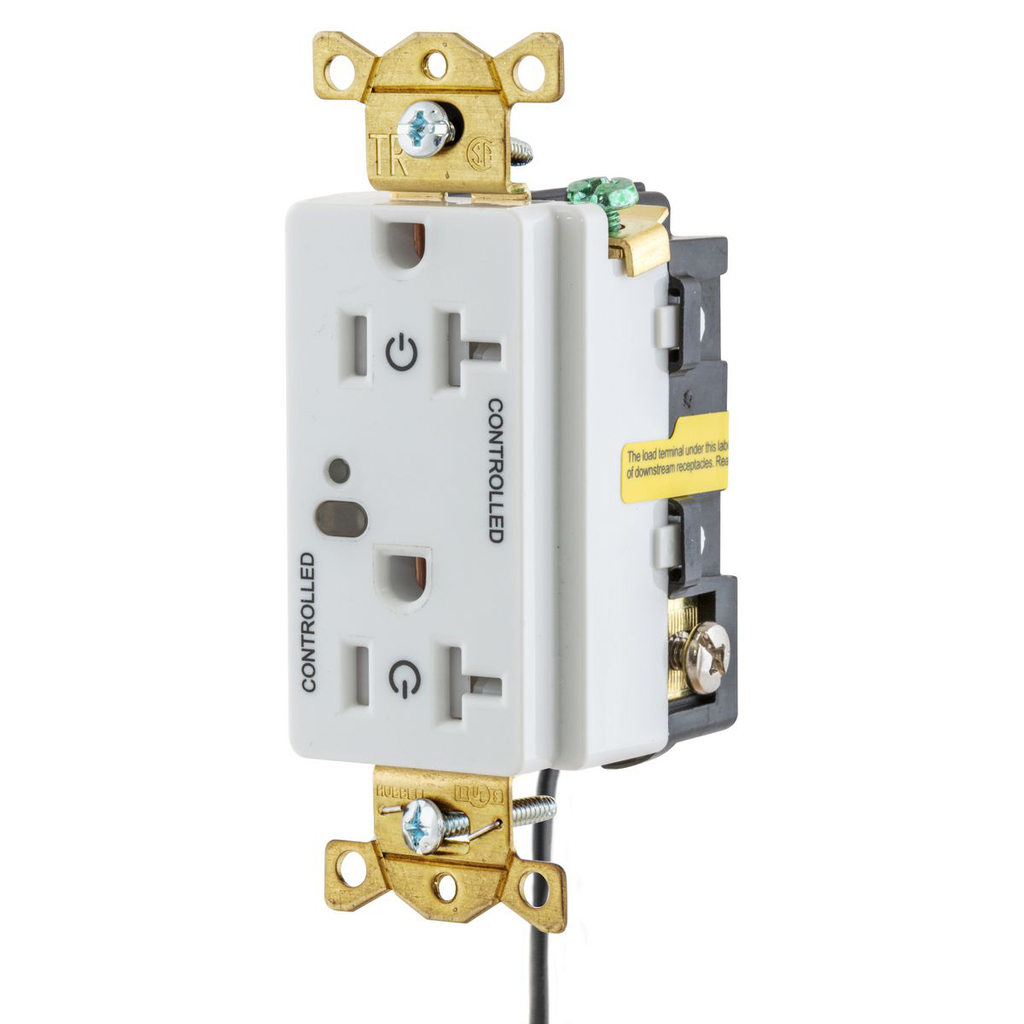

HWDK HBL5362LC2W LOAD CTRL DR, FULL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$102.34/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5362LC2W
North Coast Part # 1687688

Features

  • Designed for Automatic Receptacle (plug load) Control
  • Half controlled face and downstream control
  • Low voltage wire control
  • Tamper Resistant… NOT Plug Resistant®

Performance

  • Mechanical: Terminal Accomodation #14-10 AWG stranded or solid copper conductor only
  • Electrical: Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Indentification: Terminals identified in accordance with UL498 and CSA (Brass, White, Green)
  • Dielectric Voltage: Withstands 2,000V minimum
  • Operating Location: Indoor Use Only
  • Operating Temperature 0° to 40°C (32° to 104°F) Relative Humidity (non-condensing) 0% to 95% (w/o impact)
  • Environmental:Flammabilty: UL94V-2

Industry Standard(s)

  • cULus 498B SA UL File No. E481574
  • NEMA WD-6 Compliant
  • Artcile 130.5(d)
  • Fed. Spec. WC596G
  • Complies with:NEC Section 406.3 (E), ASHRAE 90.1 Section 8.4.2,California Title 24

Specifications

  • Amperage Rating: 20 A
  • Application: Logic Load Control Receptacles
  • Carton Quantity: 10 EA
  • Color: White
  • Connectivity: Back Wired
  • Current / Amperage Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Display Size: Standard Sized Product
  • Minimum Order Quantity: 1 EA
  • Nema Rating: 5-20R
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: 0° to 40°C (32° to 104°F) Relative Humidity(non-condensing) 0% to 95% (w/o impact)
  • SAP Material Group 5: A50
  • Series: Switched Receptacles
  • Style: Wired
  • Type: Fully Controlled
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Weight: 0.4 lb
  • Wire Size: #14 AWG to #10 AWG
  • EU RoHS Indicator: Contact Manufacturer
  • Each - Length: 4.750 in
  • Each - Height: 1.900 in
  • Each - Width: 2.200 in

Overview

UPC 78358542777
GTiN 00783585427775
Length 4.750 in
Width 2.200 in
Size Standard Product
Color White
Voltage 125 Volt
Type Fully Controlled
Material Thermoplastic
Product Series Switched Receptacles
Applications Logic Load Control Receptacles
Height 1.900 in
Weight 0.4 lb
Wire Size 14-10 AWG
Wattage 2506 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Duplex
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry unless protected by additional means
