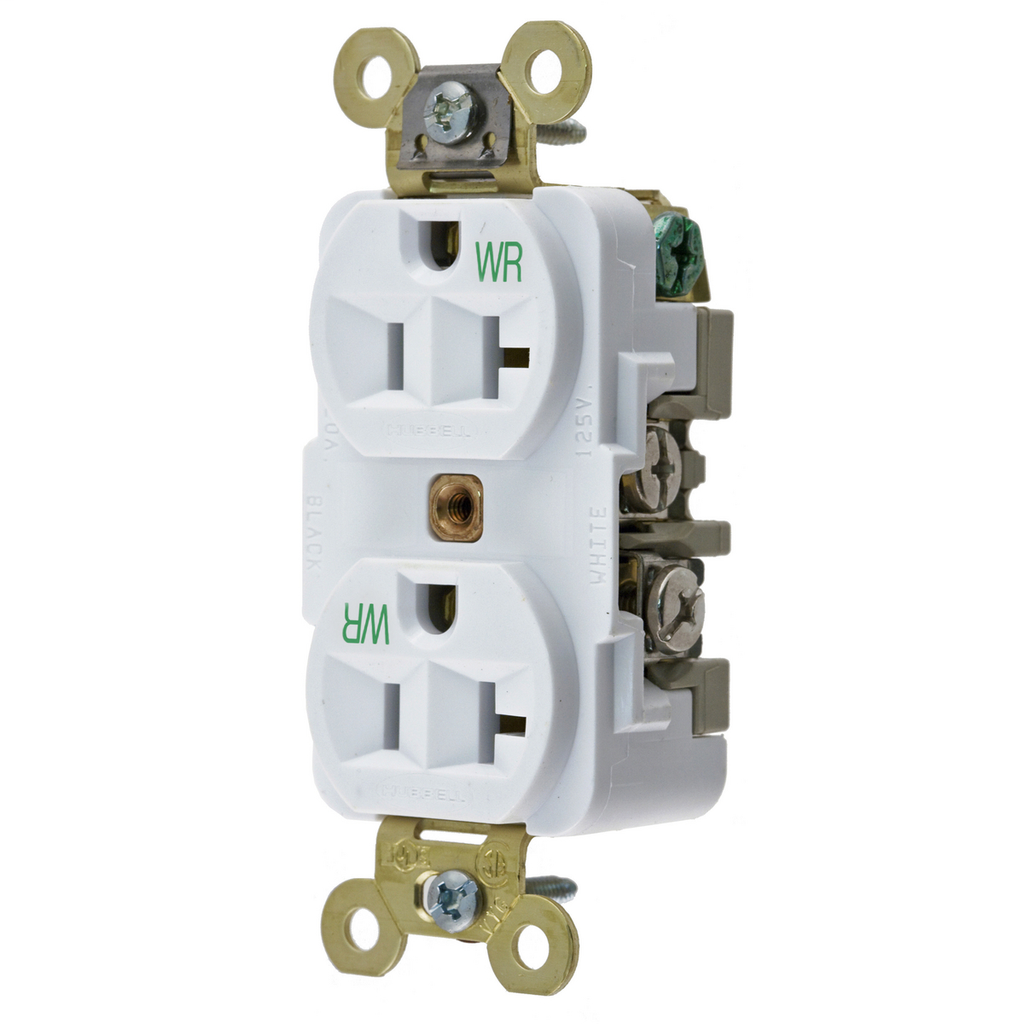

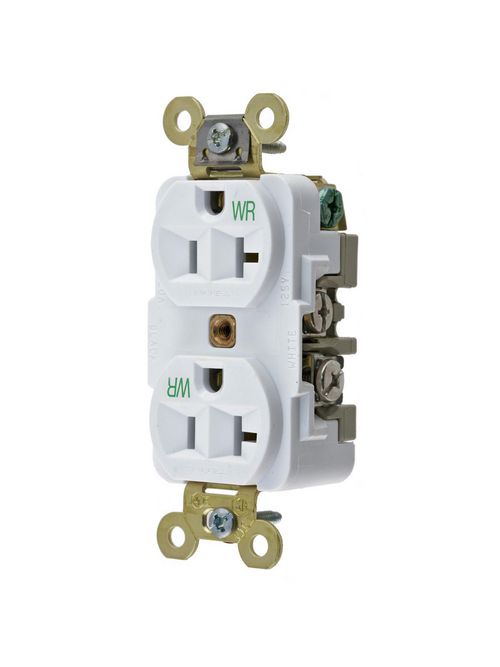

HWDK HBL5362WWR WR RCPT, DUP, SB, H

Features

• Weather-resistance complies with national electrical code requirements
• Finder Groove Face
• One-piece brass integral ground strap
• Deep body design with circuit ID face
• Weather Resistant- Self Grounding

Performance

• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)

Industry Standard(s)

• Certified to CSA 22.2, No. 42 File 285
• NEMA® WD-6 Compliant
• Fed. Spec. WC596
• UL Listed to UL498 File No. E2186

Specifications

• Amperage Rating: 20 A
• Application: Extra Heavy Duty Specification Grade
• Carton Quantity: 10 EA
• Color: White
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Dimensions: 3.28 in x 1.65 in x 1.19 in
• Display Size: Standard Sized Product
• Environmental Conditions: Weather Resistant
• Height: 1.19 in
• Horsepower - Maximum: 1
• Item Type: Traditional Duplex
• Length: 3.28 in
• Material - Mounting Hardware: Screw Mounting
• Minimum Order Quantity: 1 EA
• Nema Rating: 5-20R
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Phase: Single Phase
• SAP Material Group 5: A10
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Weather Resistant
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125 V
• Wattage: 2500 W
• Weight: 0.25 lb
• Width: 1.65 in
• Wire Size: #12 AWG to #10 AWG
• EU RoHS Indicator: No
• Each - Length: 4.160 in
• Each - Height: 1.540 in
• Each - Width: 1.790 in
• Size: 3.28 in x 1.65 in x 1.19 in
• Special Features: Weather Resistant- Self Grounding
• Standard: Certified to CSA 22.2, No. 42 File 285 || Fed. Spec. WC596 || NEMA® WD-6 Compliant || UL Listed to UL498 File No. E2186
