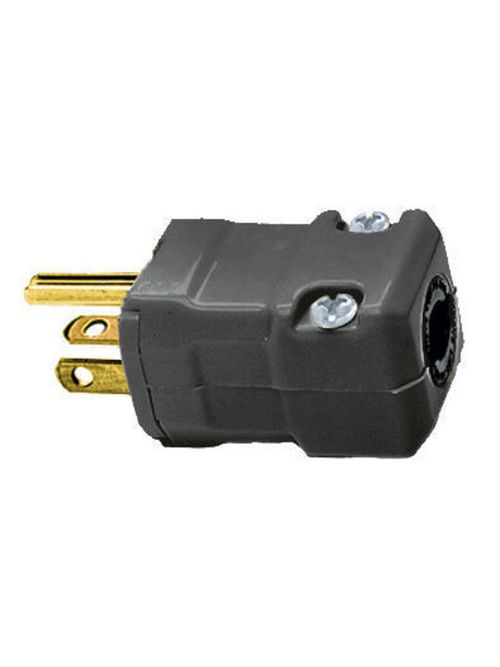

HCI HBL5364VBK VALISE PLUG, 20A 125
Product image thumbnail 0
Product image thumbnail 1
$22.17/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5364VBK
North Coast Part # 13845

Features

  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring

Specifications

General

  • Application: Industrial/Commercial Grade
  • Color: Black
  • Horsepower - Maximum: 1
  • Item Type: Valise
  • Material: Polycarbonate
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical:Current Interrupting: Certified for current interrupting at full rated current | Dielectric Voltage: Withstands 2,000V minimum | Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only | Terminal Identification: Terminals identified in accordance with UL 498 and CSA | Environmental :Flammability: UL 94 HB or better | IP Suitability: IP20 | Operating Temperatures: Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Valise
  • Style: Standard
  • Type: Plugs
  • UPC: 783585019222

Dimensions

  • Weight: 0.15 lb

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No 42 File 280C | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-20P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501922
GTiN 00783585019222
Length 2.910 in
Width 1.600 in
Size Standard Sized
Color Black
Voltage 125 Volt
Type Industrial/Commercial Grade
Material Composite
Conductor Size 12 - 10 AWG
Product Series Valise
Cord Type All Portable
Applications Industrial/Commercial
Mounting Type Cord
Height 1.600 in
Weight 0.15 lb
Wire Size 18-12 AWG
Wattage 2000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Grounding
TC Connection Terminal Screws
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Valise
Standard C22.2 No 42 File 280C,CSA,NEMA WD-6,UL,UL498 File E1706
