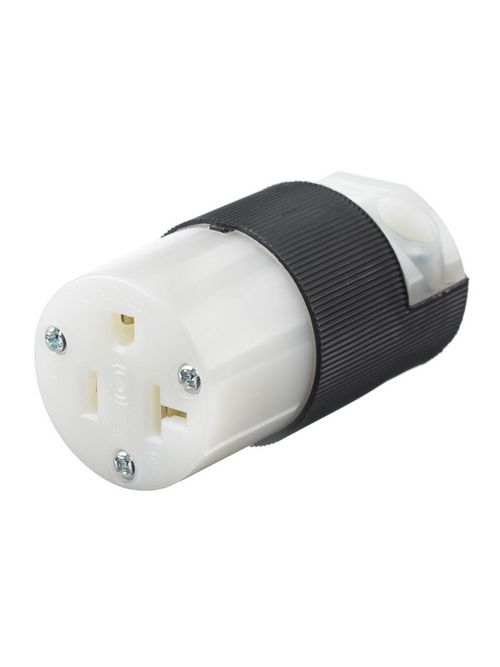

Hubbell Wiring Devices HBL5369C 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Black and White Straight Blade Connector Body
Product image thumbnail 0
Product image thumbnail 1
$45.36/ea
In Stock | 238 available at 21 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5369C
North Coast Part # 118079

Features

  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Fast lead assembly screws
  • Beveled housing prevents snagging

Specifications

General

  • Application: Industrial/Commercial Grade
  • Color: Black, White
  • Cord Range: 0.250"-0.655" (6.4-16.6)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Insulation: Insulated Body
  • Item Type: Insulgrip Plug
  • Material: Polycarbonate
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 HB or better | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Insulgrip
  • Style: Standard
  • Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Type: Connector Body
  • UPC: 783585174259

Dimensions

  • Dimensions: 2.78 in x 1.41 in x 1.53 in
  • Display Size: Standard
  • Height: 1.53 in
  • Length: 2.78 in
  • Weight: 0.15 lb
  • Width: 1.41 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Conductor Range: #18 AWG to #10 AWG
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No. 42 File 280 | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10
> View Substitutes (1)

Categories

Overview

UPC 78358517425
GTiN 00783585174259
Length 2.78 in
Width 1.41 in
Size 2.78 in x 1.41 in x 1.53 in
Color Black and White
Voltage 125 Volt
Type Standard
Material Composite
Number of Conductors 3
Conductor Size 14-12 AWG
Product Series Insulgrip
Applications Industrial/Commercial
Height 1.53 in
Weight 0.15 lb
Connection Type Screw Terminal
Temperature Rating -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 2
TC Connection Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Insulgrip
Standard C22.2 No. 42 File 280,CSA,NEMA WD-6,UL,UL498 File E1706
Environmental Conditions Indoor Dry Unless Protected By Additional Means
