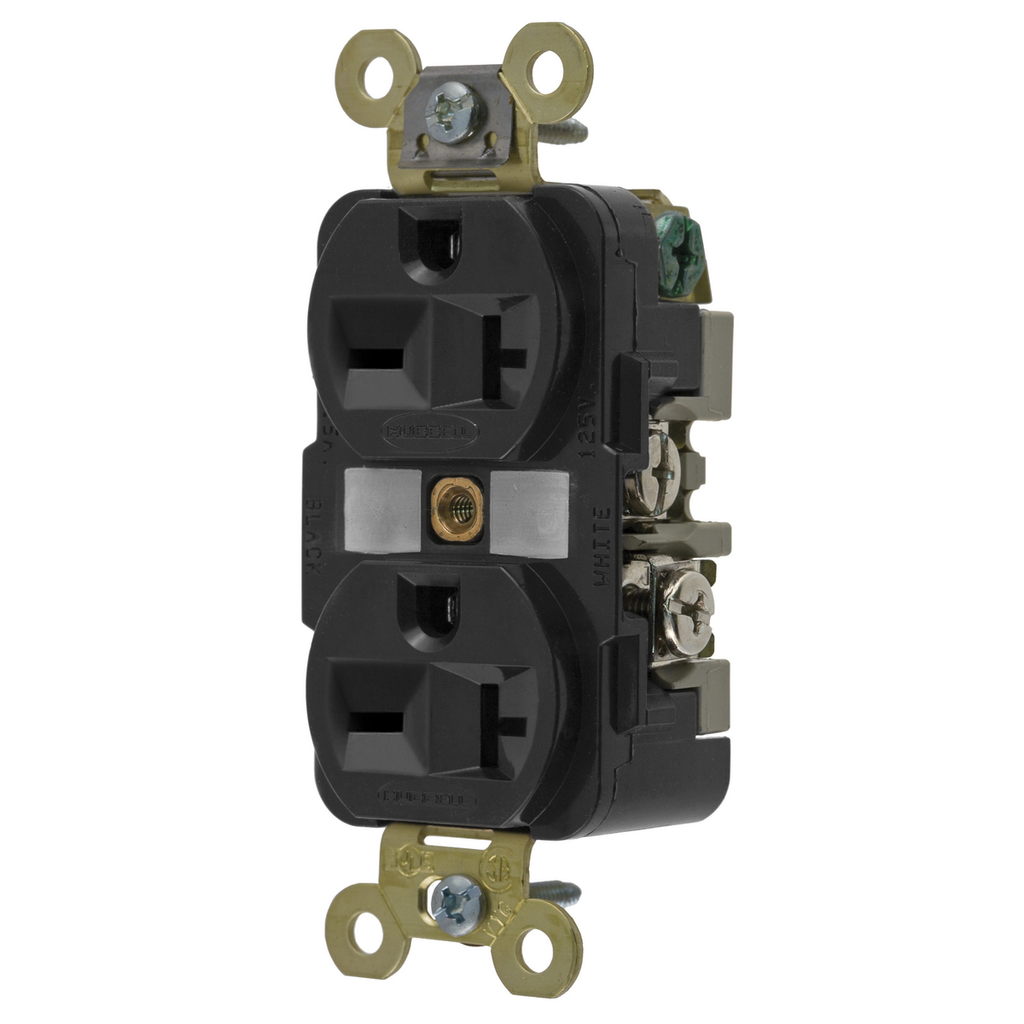

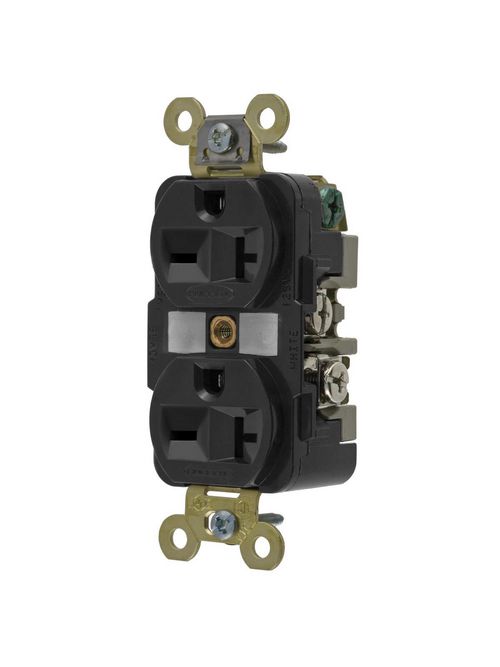

HWDK HBL5462BK DUP RCPT, IND GRD, 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$57.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5462BK
North Coast Part # 490467

Features

  • Deep nylon body design delivers increased impact resistance
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID face
  • Self Grounding

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.65 in x 1.19 in
  • Each - Height: 1.540 in
  • Each - Length: 4.160 in
  • Each - Width: 1.790 in
  • Height: 1.19 in
  • Horsepower - Maximum: 2
  • Industry Standard(s): Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Extra Heavy Duty
  • Color: Black
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 6-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.65 in x 1.19 in
  • Special Features: Self Grounding
  • Standard: Certified to CSA 22.2, No. 42 File 285; Guide RTRT Fed Spec WC596G; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
  • Type: Standard Duplex
  • Voltage Rating: 250 V
  • Wattage: 5000 W
  • Wire Size: #14 AWG to #10 AWG
  • Voltage Rating Description: 250 V
  • Width: 1.65 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358535773
Item Long Description Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Black, Single Pack
GTiN 00783585357737
Length 3.28 in
Width 1.65 in
Size 3.28 in x 1.65 in x 1.19 in
Color Black
Voltage 250 Volt
Type Extra Heavy Duty
Material Thermoplastic/Composite
Conductor Size 14 - 12 AWG
Product Series Extra Heavy Duty
Applications Extra Heavy Duty
Mounting Type Screw
Height 1.19 in
Grade Industrial
Weight 0.25 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wired
Wattage 5000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Back and Side Wired Screw Terminals
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard CSA 22.2,Guide RTRT Fed Spec WC596G,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
