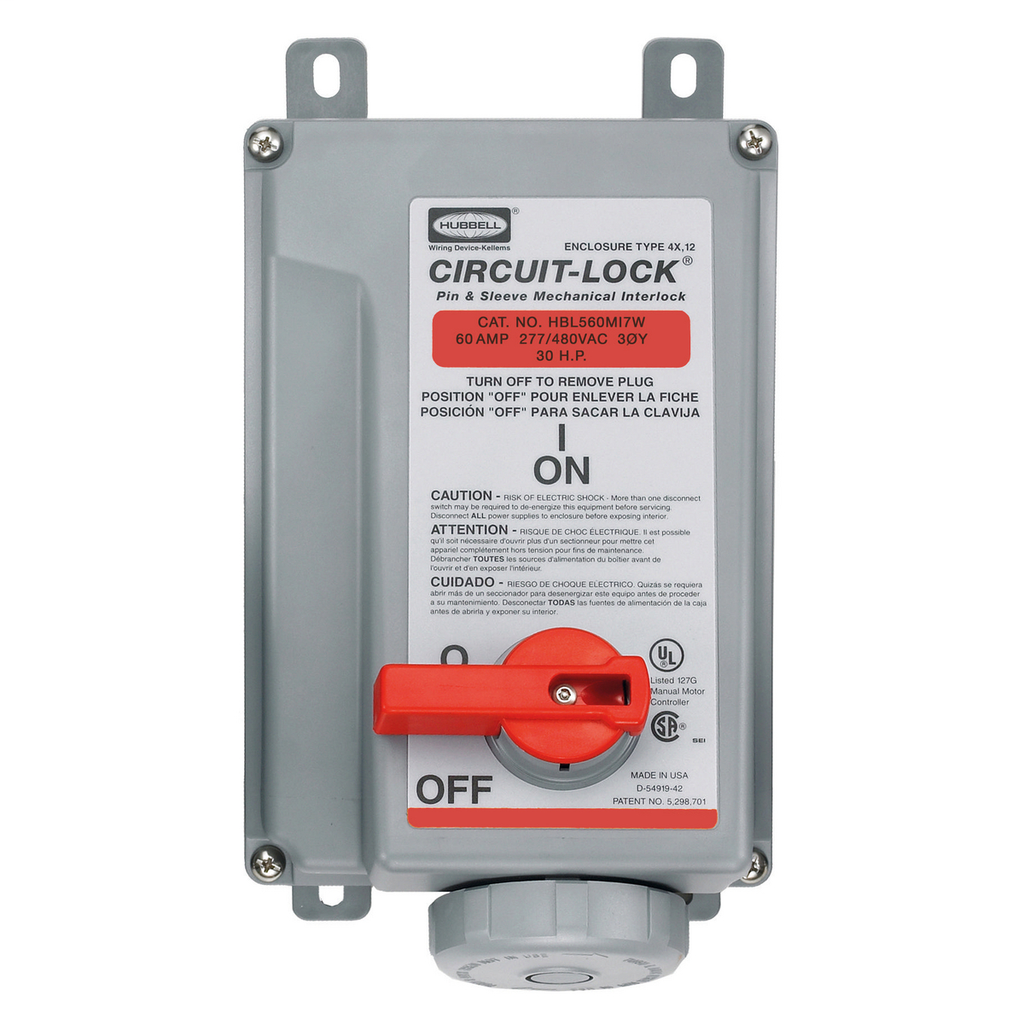

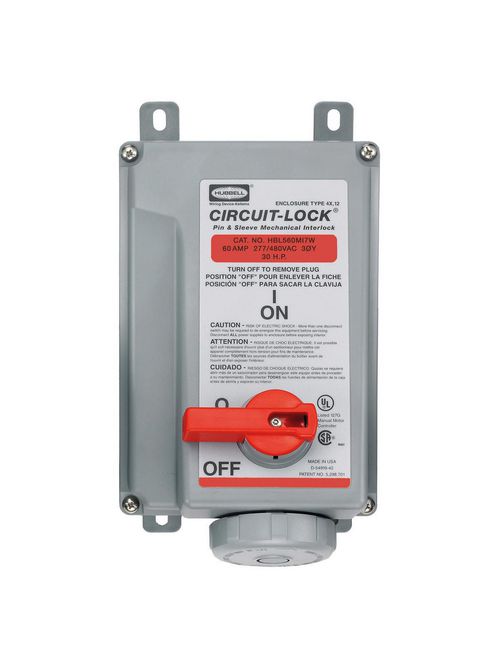

HCI HBL560MI7W PS, IEC, MECHINT, 4P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,322.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL560MI7W
North Coast Part # 331614

Features

  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 60 A
  • Each - Height: 7.300 in
  • Each - Length: 14.700 in
  • Each - Width: 8.700 in
  • Industry Standard(s): UL Listed
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 60 A
  • Application: High Ampacity Watertight Connections
  • Color: Red
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Phase: Three Phase
  • Special Features: Watertight
  • Standard: UL Listed
  • Type: Mechanical Interlock
  • Voltage Rating: 3 Phase Y 277/480 VAC
  • Wattage: 28800
  • Wire Size: #8 AWG to #2 AWG
  • Voltage Rating Description: 3 Phase Y 277/480 VAC

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358540616
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws
GTiN 00783585406169
Length 14.700 in
Width 8.700 in
Size Standard Sized Product
Color Red
Voltage 480 Volt
Type Mechanical Interlock
Material Thermoplastic
Product Series Unfused Circuit,Lock
Applications High Ampacity Watertight Connections
Height 7.300 in
Wire Size 8-2 AWG
Wattage 28800 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 60 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand IEC 309 Pin and Sleeve Devices
Standard UL
Environmental Conditions Watertight
