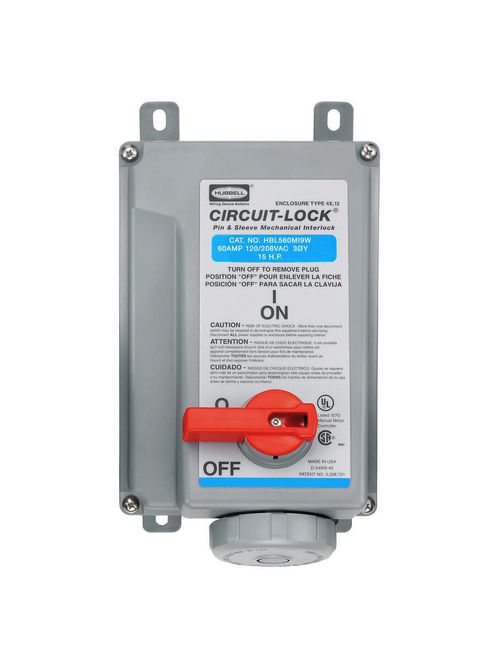

HCI HBL560MI9W PS, IEC, MECHINT, 4P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,322.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL560MI9W
North Coast Part # 65135

Features

  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 60 A
  • Each - Height: 7.200 in
  • Each - Length: 14.500 in
  • Each - Width: 8.700 in
  • Industry Standard(s): UL Listed
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Show Add To ProjectList: Yes
  • Amperage Rating: 60 A
  • Application: High Ampacity Watertight Connections
  • Color: Blue
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Phase: Three Phase
  • Special Features: Watertight
  • Standard: UL Listed
  • Type: Mechanical Interlock
  • Voltage Rating: 3 Phase Y 120/208 VAC
  • Wattage: 12480
  • Wire Size: #8 AWG to #2 AWG
  • Voltage Rating Description: 3 Phase Y 120/208 VAC

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358540617
Item Long Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws
GTiN 00783585406176
Length 14.500 in
Width 8.700 in
Size Standard Sized Product
Color Blue
Voltage 208 Volt
Type Single, IEC 309 Pin and Sleeve Device, Standard, 4-Pole, 5-Wire
Material Thermoplastic
Product Series Lock,Unfused Circuit
Applications For High Ampacity Watertight Connections
Height 7.200 in
Wire Size 8-2 AWG
Wattage 12480 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 60 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand IEC 309 Pin and Sleeve Devices
Terminal Type Screw
Standard UL
Connection Type Pressure Screw
Environmental Conditions Watertight
