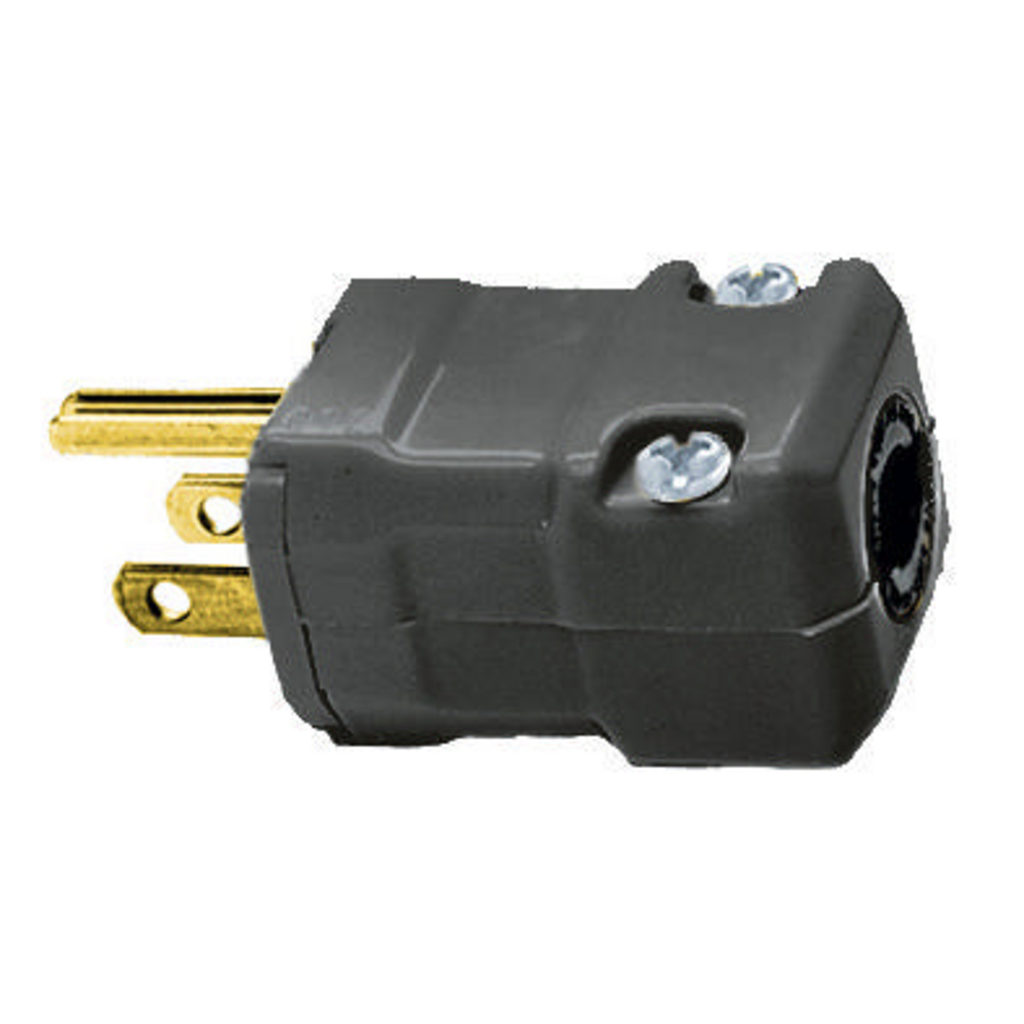

Hubbell Wiring Devices HBL5965VBLK 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Black Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$14.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5965VBLK
North Coast Part # 935

Features

  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 1.87 in x 1.12 in x 1.87 in
  • Each - Height: 1.600 in
  • Each - Length: 2.910 in
  • Each - Width: 1.600 in
  • Height: 1.87 in
  • Horsepower - Maximum: 2.00
  • Industry Standard(s): CSA Certified to C22.2 No 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
  • Length: 1.87 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Industrial/Commercial Grade
  • Color: Black
  • NEMA Rating: 5-15P
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 1.87 in x 1.12 in x 1.87 in
  • Standard: CSA Certified to C22.2 No 42 File 280C; NEMA® WD-6 Compliant; UL Listed to UL498 File E1706
  • Type: Plugs
  • Voltage Rating: 125 VAC
  • Wire Size: #18 AWG to #12 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.12 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358501308
Item Long Description Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black, Single Pack.
GTiN 00783585013084
Length 1.87 in
Width 1.12 in
Size 1.87 in x 1.12 in x 1.87 in
Color Black
Voltage 125 Volt
Type Standard Sized
Material Composite
Conductor Size 16-10 AWG
Product Series Valise
Cord Type Portable
Applications Industrial/Commercial
Mounting Type Surface
Height 1.87 in
Weight 0.1 lb
Wire Size 18-12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Yes
TC Connection Terminal Screws
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Valise
Standard C22.2 No 42 File 280C,CSA,NEMA WD-6,UL,UL498 File E1706
