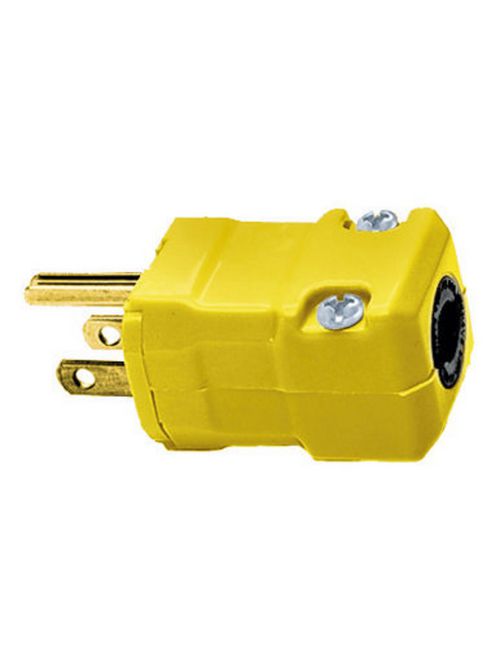

Hubbell Wiring Devices HBL5965VY 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Yellow Nylon Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
$13.70/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL5965VY
North Coast Part # 125196

Features

  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring

Specifications

General

  • Application: Industrial/Commercial Grade
  • Horsepower - Maximum: 2
  • Item Type: Valise
  • Material: Polycarbonate
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 HB or better | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Valise
  • Style: Standard
  • Type: Plugs
  • UPC: 783585013091

Dimensions

  • Dimensions: 1.88 in x 1.88 in x 2.55 in
  • Height: 2.55 in
  • Length: 1.88 in
  • Weight: 0.1 lb
  • Width: 1.88 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No 42 File 280C | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-15P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501309
GTiN 00783585013091
Length 1.88 in
Width 1.88 in
Size 1.88 in x 1.88 in x 2.55 in
Color Yellow
Voltage 125 Volt
Type Plugs
Material Polycarbonate
Conductor Size 16-10 AWG
Product Series Valise
Cord Type All Portable
Applications Industrial/Commercial Grade
Mounting Type Cord
Height 2.55 in
Weight 0.1 lb
Wire Size 18-12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 15 A
Environmental Conditions Indoor Dry unless protected by additional means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Valise
Standard C22.2 No 42 File 280C,CSA,NEMA WD-6,UL,UL498 File E1706
