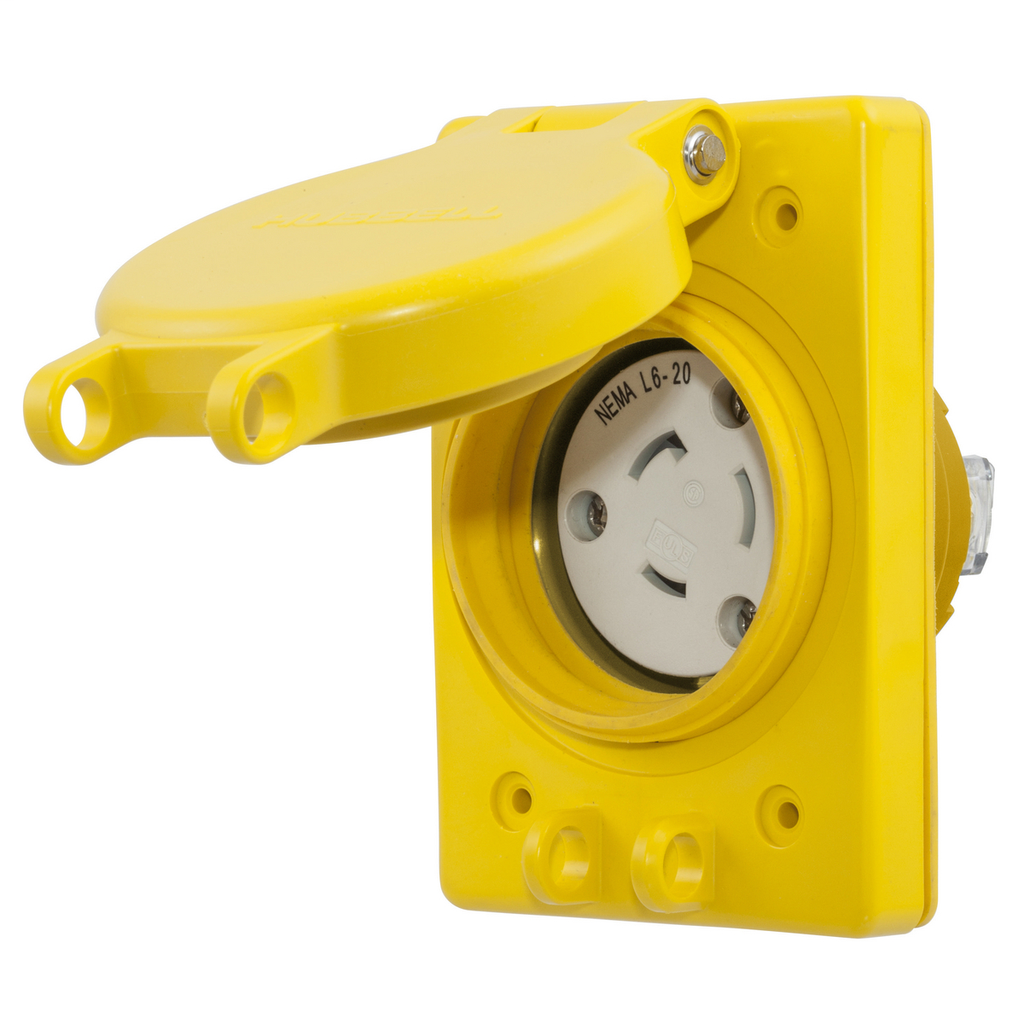

HCI HBL67W48 WATERTIGHT RECEP ASSY,
Product image thumbnail 0
Product image thumbnail 1
$146.47/ea
In Stock | 14 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL67W48
North Coast Part # 1095520

Features

  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

General

  • Color: Yellow
  • Item Type: 20A Watertight Twist-Lock® Receptacle
  • Number Of Poles: 2-Pole
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498 | Electrical - Dielectric Voltage - 2500V AC | Electrical - Max Working Voltage - As marked | Electrical - Temperature Rise - 30°C max per UL498 at rated current | Environmental - UV resistance - All exposed materials are UV stabilized | Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P | Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
  • Type: Receptacle
  • UPC: 783585433158

Dimensions

  • Dimensions: 4.56 in x 3.10 in x 2.92 in
  • Height: 2.92 in
  • Length: 4.56 in
  • Width: 3.10 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): IP69K In Use | Meets NEMA WD-1, WD-6 And ANSI Standards
  • Nema Rating: L6-20R

Logistics

  • Carton Quantity: 5

Overview

UPC 78358543315
GTiN 00783585433158
Length 4.56 in
Width 3.10 in
Size 4.56 in x 3.10 in x 2.92 in
Color Yellow
Voltage 250 Volt
Type Receptacle
Material PBT
Conductor Size 18-8 AWG
Applications Industrial/Commercial
Mounting Type Flush
Height 2.92 in
Grade Industrial
Wire Size 18 AWG-8 AWG
Wattage 5000 Watt
Temperature Rating -40 to 60 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
Contact Material Nickel Plated Brass
TC Connection Screw Terminals
Dielectric Strength 2500 VAC
Current 20 A
Blade Dimensions 4.56 in L x 3.1 in W x 2.92 in H
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Environmental Conditions Watertight
