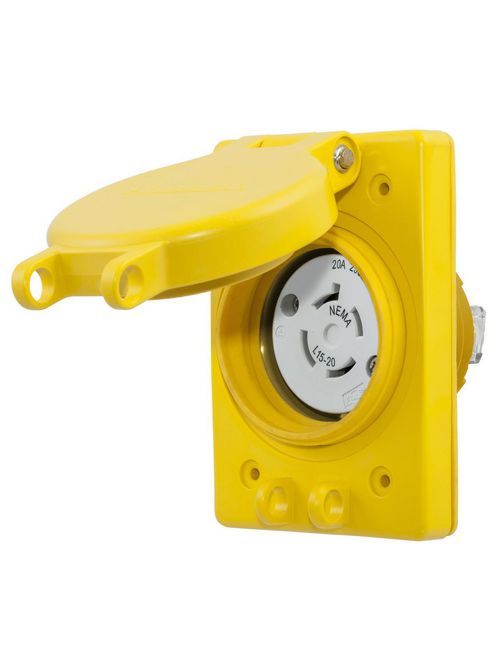

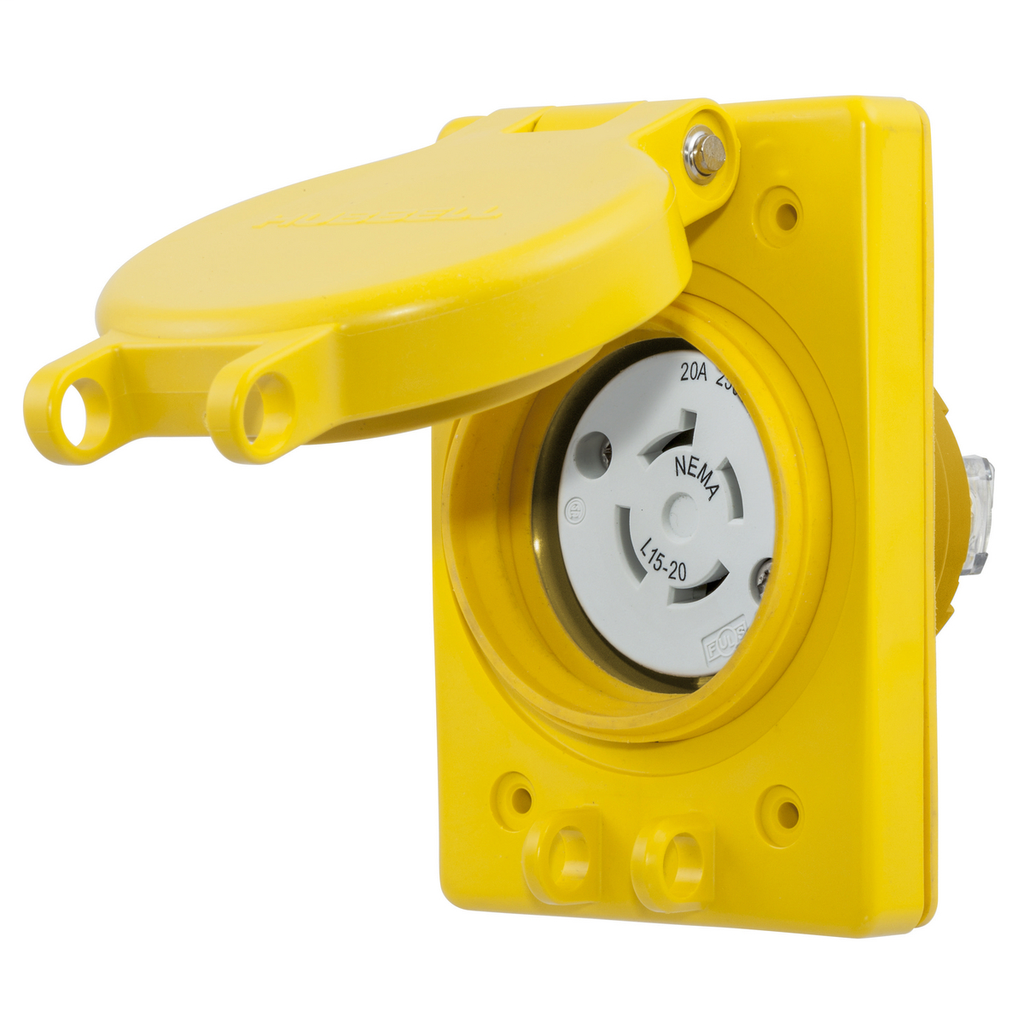

WATERTIGHT RECEP ASSY,NEMA L15-20
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$157.72/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL67W75
North Coast Part # 1098086

Features

  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 4.56 in x 3.10 in x 2.92 in
  • Each - Height: 3.418 in
  • Each - Length: 5.168 in
  • Each - Width: 3.168 in
  • Height: 2.92 in
  • Industry Standard(s): IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
  • Length: 4.56 in
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
  • Amperage Rating: 20 A
  • Color: Yellow
  • NEMA Rating: L15-20R
  • Number of Poles: 3-Pole
  • Number of Wires: 4-Wire
  • Size: 4.56 in x 3.10 in x 2.92 in
  • Standard: IP69K In Use; Meets NEMA WD-1, WD-6 And ANSI Standards
  • Type: Receptacle
  • Voltage Rating: 3 Phase 250 VAC
  • Wire Size: #18 AWG to #8 AWG
  • Voltage Rating Description: 3 Phase 250 VAC
  • Width: 3.10 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783585433189
Length 4.56 Inch
Width 3.10 in
Size 4.56 in x 3.10 in x 2.92 in
Color Yellow
Voltage 250 Volt
Type Receptacle
Material PBT
Conductor Size 18-8 AWG
Applications Industrial/Commercial
Mounting Type Flush
Height 2.92 Inch
Grade Industrial
Wire Size 18-8 AWG
Wattage 2500 Watt
Temperature Rating -40 to 60 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Contact Material Nickel Plated Brass
TC Connection Screw Terminals
Dielectric Strength 2500 VAC
Current 20 A
Blade Dimensions 4.56 in L x 3.1 in W x 2.92 in H
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock
Product UPC 78358543318
Standard ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Environmental Conditions Watertight
Country of Origin China
