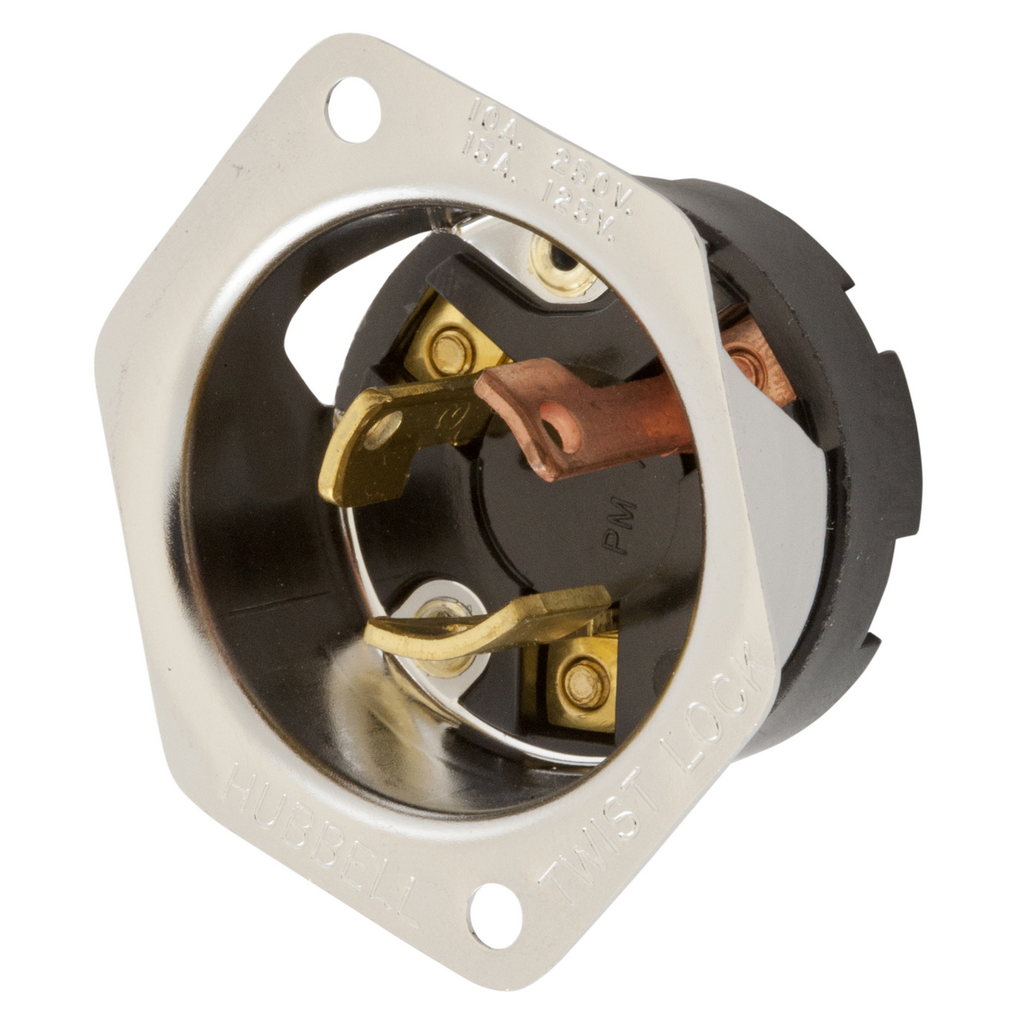

HWDK HBL7556G LKG FLG INLT, 2P3W, 1
$45.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7556G
North Coast Part # 64218

Features

  • Heat resistant thermoset construction
  • Stainless steel casing
  • #5-40 terminal screws
  • Mounting screws included

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 10A/15A Grounding Stainless Steel Flanged Inlet
  • Material: Stainless Steel
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #12 AWG solid or stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Flanged Inlet
  • UPC: 783585237657

Dimensions

  • Dimensions: 2.31 in x 2.31 in x 1.13 in
  • Display Size: Standard Sized Product
  • Height: 1.13 in
  • Length: 2.31 in
  • Weight: 0.1 lb
  • Width: 2.31 in

Electrical Ratings

  • Amperage Rating: 10/15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 10/15 A
  • Current Rating: 10 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250/125 V
  • Voltage Rating Description: 250/125 V
  • Wattage: 3750 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #16 AWG to #12 AWG

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523765
GTiN 00783585237657
Length 2.31 in
Width 2.31 in
Size 2.31 in x 2.31 in x 1.13 in
Color Black
Voltage 125 Volt
Type Flanged Inlet
Material Stainless Steel
Applications Extra Heavy Duty Industrial
Height 1.13 in
Weight 0.1 lb
Wire Size 16 AWG-12 AWG
Wattage 3,750 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 10 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock Devices
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
