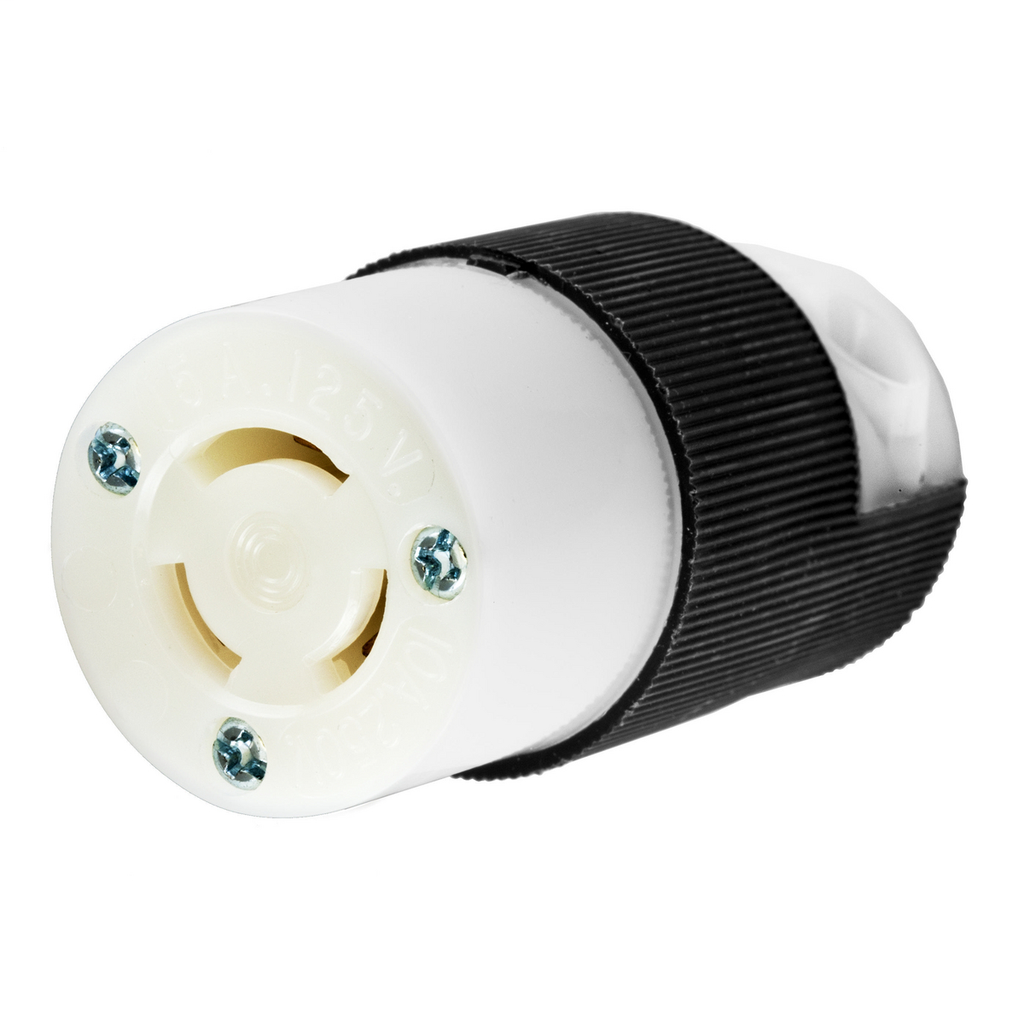

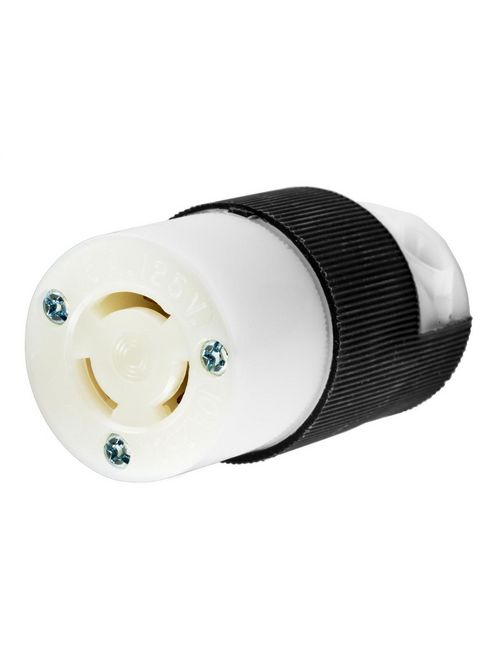

Hubbell Wiring Devices HBL7565C 10 Amp 250 Volt 3-Pole 3-Wire Black and White Nylon Locking Connector
$45.87/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7565C
North Coast Part # 64873

Features

  • Ribbed nylon housing provides secure, impact and chemical resistant grip
  • Superior cord grip design protects terminations from excess strain
  • Integral VARI-SIZE insert accomodates a wide range of cord diameters

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.230"-0.720"(5.8-18.3)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 10A/15A Non-Grounding Insulgrip® Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Connector Body
  • UPC: 783585178608

Dimensions

  • Dimensions: 1.53 in x 1.53 in x 2.78 in
  • Display Size: Standard
  • Height: 2.78 in
  • Length: 1.53 in
  • Weight: 0.2 lb
  • Width: 1.53 in

Electrical Ratings

  • Amperage Rating: 10/15 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 10/15 A
  • Current Rating: 10 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 250/125 V
  • Voltage Rating Description: 250/125 V

Conductor Related

  • Cable Range: 0.230 - 0.720 in
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498

Logistics

  • Carton Quantity: 10

Overview

UPC 78358517860
GTiN 00783585178608
Length 1.53 in
Width 1.53 in
Size Standard
Color Black and White
Voltage 125 Volt
Type Insulgrip, Standard, Insulated Body, Straight Angled, Gland Nut, Heavy Duty
Material Plastic
Number of Conductors 3
Conductor Size 14-12 AWG
Applications For Industrial Use
Height 2.78 in
Weight 0.2 lb
Connection Type Pressure Screw
Temperature Rating 75 C Maximum Continuous, -40 C Minimum Continuous without Impact, -25 C Minimum Continuous with Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 3
TC Connection Pressure Screw Terminal
Current 10 A
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
