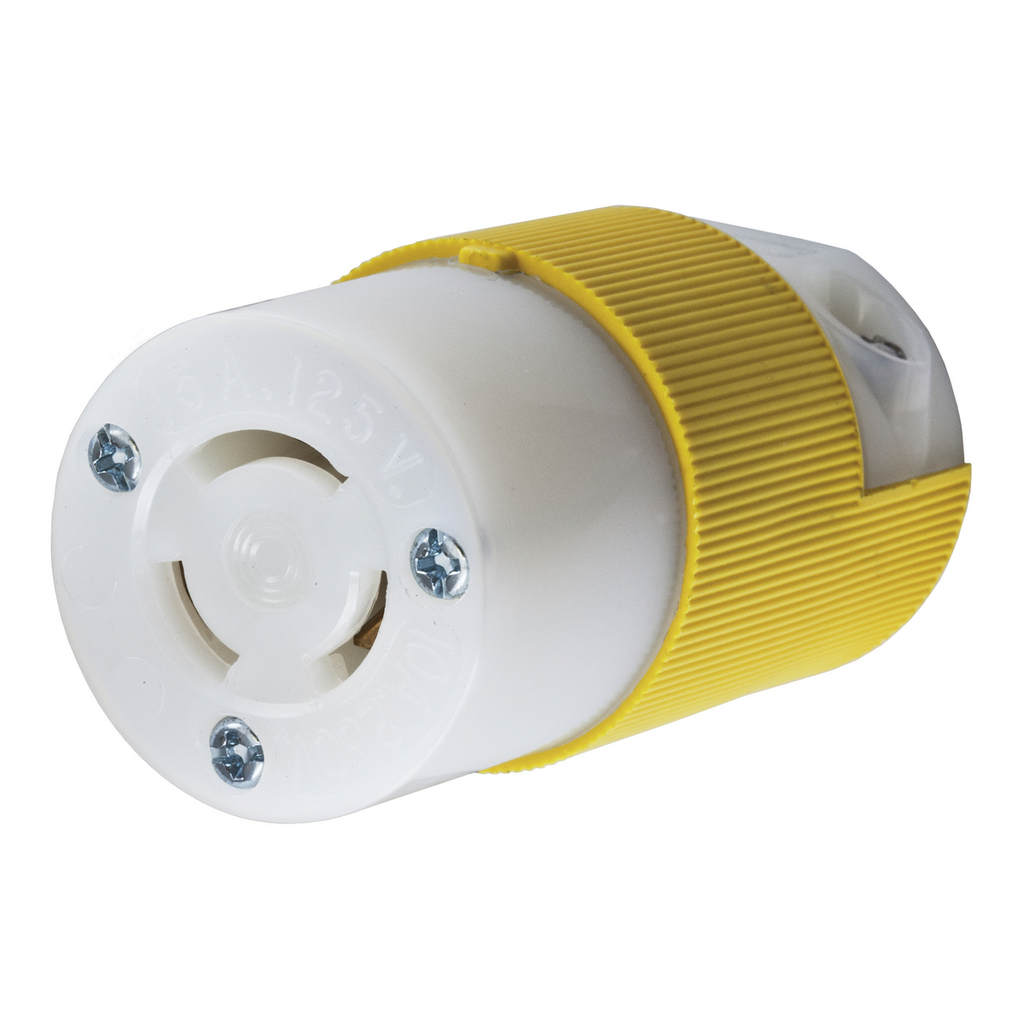

Hubbell Wiring Devices HBL7565CY 10 Amp 250 VAC 15 Amp 125 Volt 3-Pole 3-Wire Locking Connector
$56.84/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7565CY
North Coast Part # 18724

Features

  • Ribbed nylon housing provides secure, impact and chemical resistant grip
  • Superior cord grip design protects terminations from excess strain
  • Integral VARI-SIZE insert accomodates a wide range of cord diameters

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Yellow
  • Cord Range: 0.230"-0.720"(5.8-18.3)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 10A/15A Insulgrip® Connector
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • UPC: 783585178653

Dimensions

  • Dimensions: 1.53 in x 1.53 in x 2.78 in
  • Display Size: Standard
  • Height: 2.78 in
  • Length: 1.53 in
  • Weight: 0.2 lb
  • Width: 1.53 in

Electrical Ratings

  • Amperage Rating: 10 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 10 A
  • Current Rating: 10 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 250/125 V
  • Voltage Rating Description: 250/125 V

Conductor Related

  • Number Of Wires: 3-Wire Non-Grounding
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358517865
GTiN 00783585178653
Length 1.53 in
Width 1.53 in
Size 1.53 in x 1.53 in x 2.78 in
Color Yellow
Voltage 125 Volt
Type Insulgrip
Material Nylon
Number of Conductors 3-Wire Non-Grounding
Applications Heavy Duty Industrial
Height 2.78 in
Weight 0.2 lb
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Screw Terminal
Current 10 A
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
