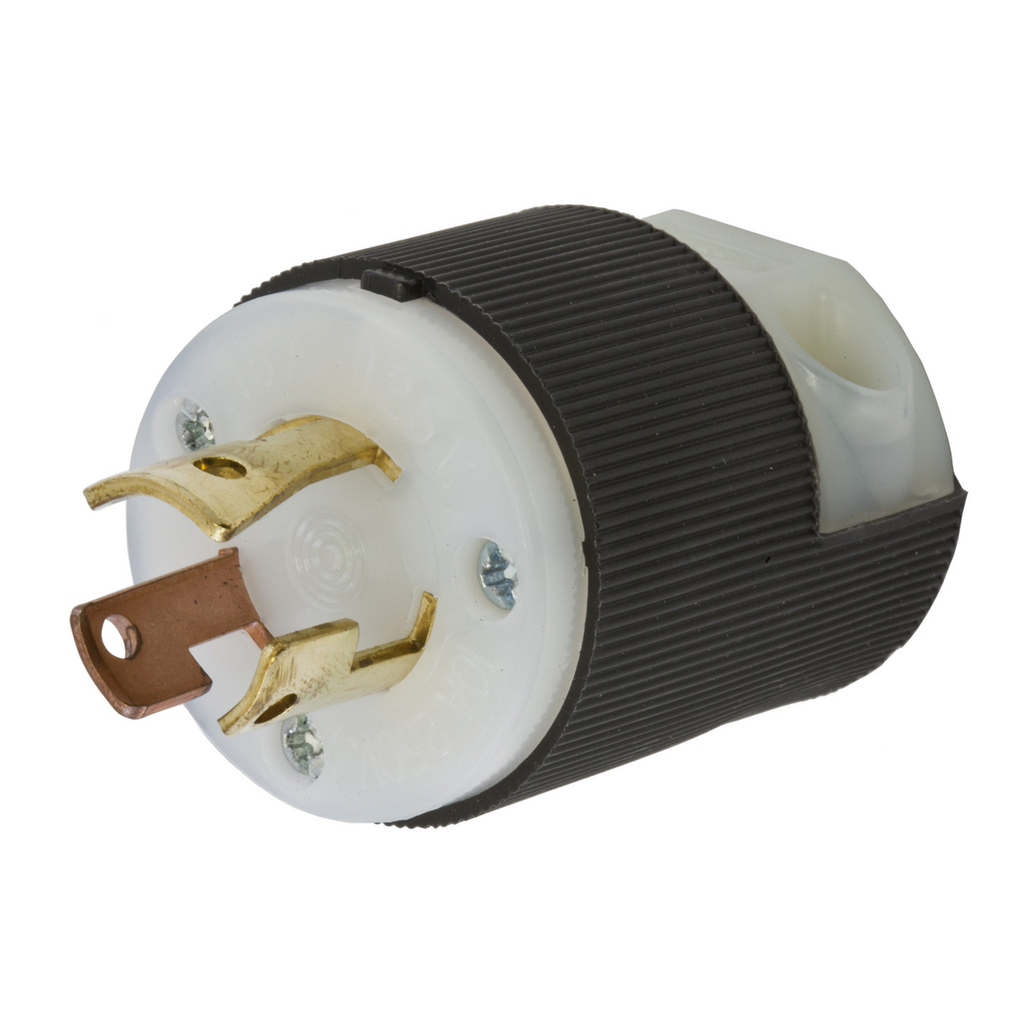

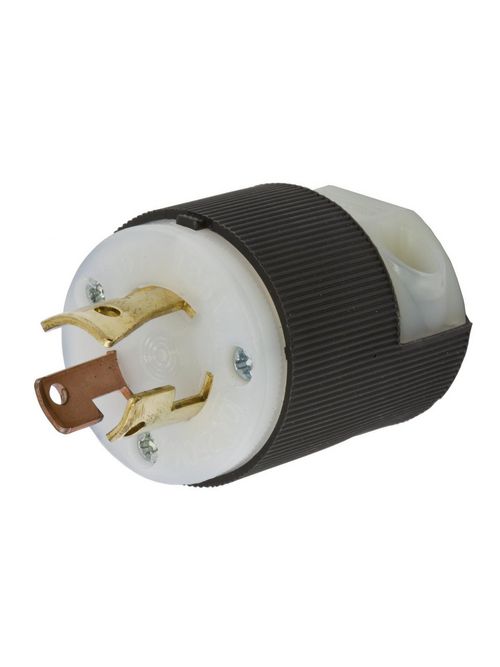

Hubbell Wiring Devices HBL7567C 10 Amp 250 VAC 3-Pole 3-Wire Non-NEMA Black/White Nylon Locking Plug
$28.45/ea
In Stock | 21 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7567C
North Coast Part # 65054

Features

  • Individually molded face for each blade configuration keeps debris out of plug interior
  • Ribbed nylon housing is impact and chemical resistant
  • Roomy wiring chamber provides ample space for wiring

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.230"-0.720"(5.8-18.3)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: 10A/15A Insulgrip® Plug
  • Listings: Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585178752

Dimensions

  • Dimensions: 1.53 in x 1.53 in x 1.97 in
  • Display Size: Standard Sized
  • Height: 1.97 in
  • Length: 1.53 in
  • Weight: 0.15 lb
  • Width: 1.53 in

Electrical Ratings

  • Amperage Rating: 10 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 10 A
  • Current Rating: 10 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250/125 V
  • Voltage Rating Description: 250/125 V
  • Wattage: 1875 W

Conductor Related

  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire Non-Grounding
  • Wire Size: #18 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec.W-C-596
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358517875
GTiN 00783585178752
Length 1.53 in
Width 1.53 in
Size Standard Sized
Color Black/White
Voltage 125 Volt
Type Insulgrip, Standard Sized, Straight Angled
Material Composite
Cord Type Portable
Applications Extra Heavy Duty Industrial Application
Mounting Type Cord
Height 1.97 in
Weight 0.15 lb
Wire Size 14 AWG
Wattage 1,875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding No
TC Connection Screw Terminal
Current 10 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec.W-C-596
