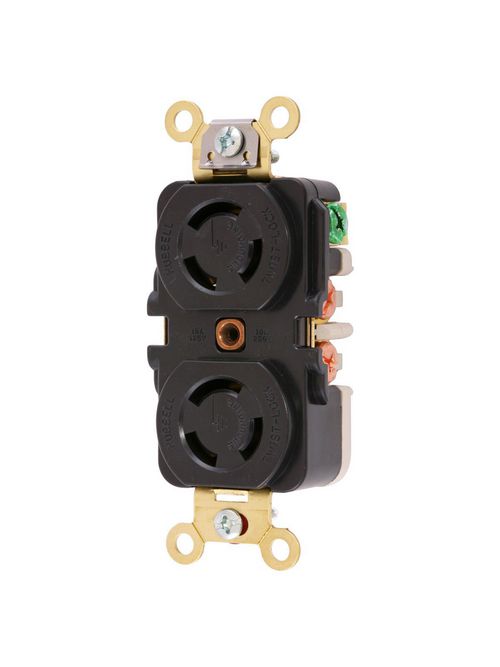

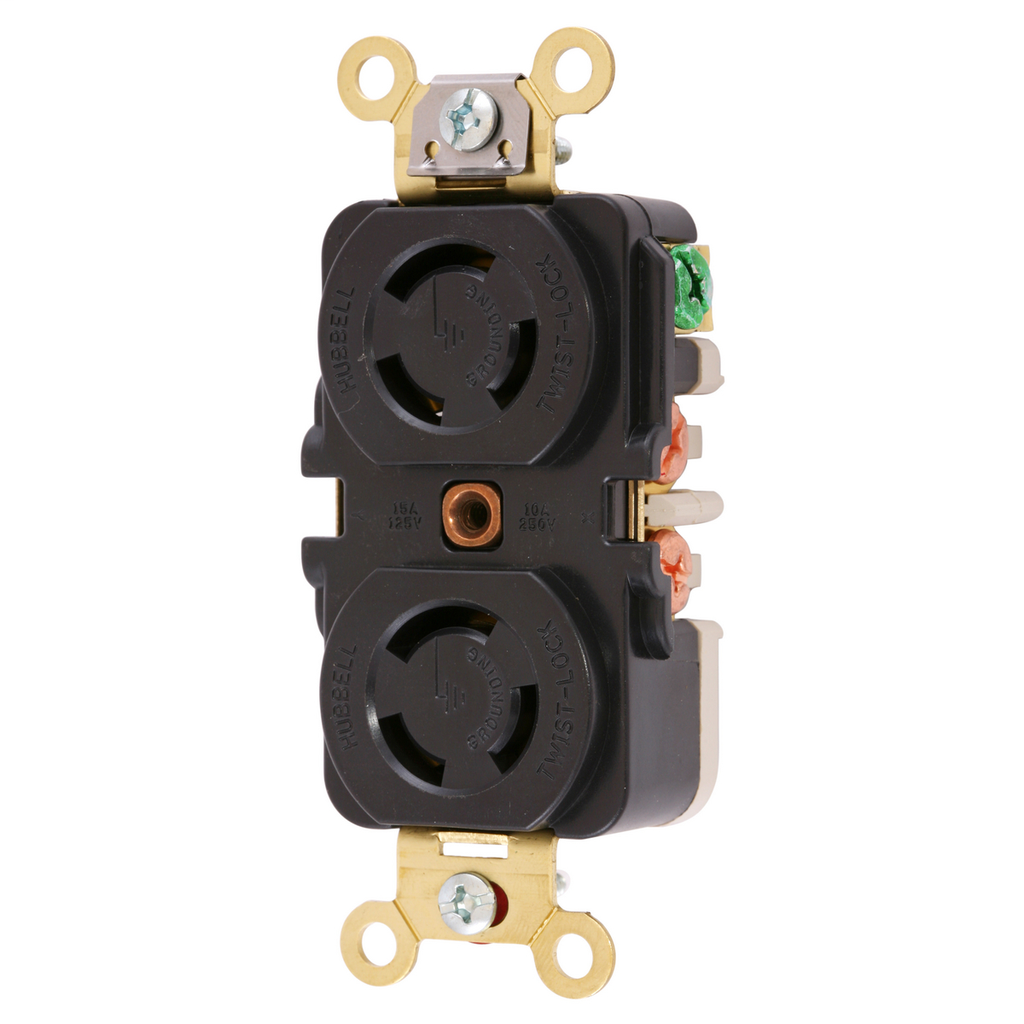

Hubbell Wiring Devices HBL7580G 10 Amp 250 VAC 2-Pole 3-Wire Non-NEMA Black Duplex Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$61.78/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7580G
North Coast Part # 66360

Features

  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • Single point break-off tabs
  • Mounting strap tabs lock the body and base together
  • Standard

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 10/15 A
  • Dimensions: 3.29 in x 1.7 in x 1.17 in
  • Each - Height: 1.540 in
  • Each - Length: 4.160 in
  • Each - Width: 1.790 in
  • Height: 1.17 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
  • Length: 3.29 in
  • Performance: Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG -#10 AWG solid or stranded copper wire only.;Mechanical - Terminal Accommodation - #18-#10 AWG solid or stranded copper wire.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 10/15 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.29 in x 1.7 in x 1.17 in
  • Special Features: Standard
  • Standard: Certified to CSA C22.2 No.42; Fed. Spec. W-C-596; Listed to UL 498
  • Type: Receptacle
  • Voltage Rating: 250/125 V
  • Wattage: 3750 W
  • Wire Size: #18 AWG to #10 AWG
  • Voltage Rating Description: 250/125 V
  • Width: 1.7 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358500236
Item Long Description Locking Devices, Twist-Lock, Industrial, Duplex Flush Receptacle, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non- NEMA, Screw Terminal, Black RTP.
GTiN 00783585002361
Length 3.29 in
Width 1.7 in
Size 3.29 in x 1.7 in x 1.17 in
Color Black
Voltage 125 Volt
Type Receptacle
Material Thermoplastic
Applications Heavy Duty Industrial
Height 1.17 in
Weight 0.3 lb
Wire Size 18-10 AWG
Wattage 3750 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 10 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock Devices
Standard CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
