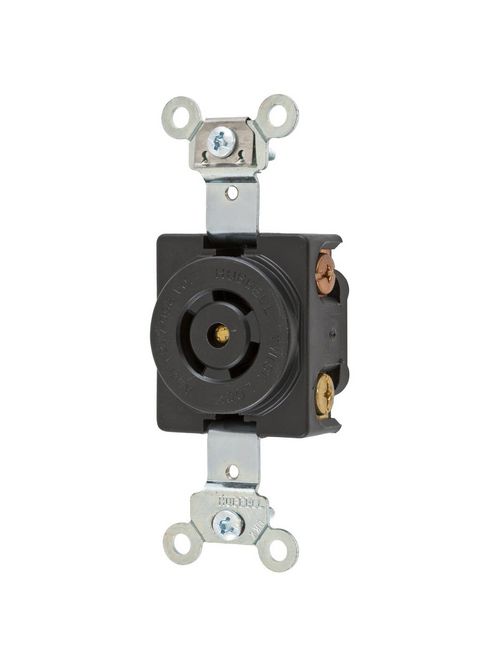

HCI HBL7582G LKG RCPT, MDGT, 2P3W,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$47.21/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7582G
North Coast Part # 66584

Features

  • Thermoset construction offers high heat resistance
  • High performance copper alloy contacts
  • Corrosion resistant zinc plated steel one-piece mounting strap
  • Standard

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 10/15 A
  • Dimensions: 3.31 in x 1.53 in x 1.25 in
  • Each - Height: 1.540 in
  • Each - Length: 4.160 in
  • Each - Width: 1.790 in
  • Height: 1.25 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
  • Length: 3.31 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG -#10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 10/15 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.31 in x 1.53 in x 1.25 in
  • Special Features: Standard
  • Standard: Certified to CSA C22.2 No.42; Fed. Spec. W-C-596; Listed to UL 498
  • Type: Receptacle
  • Voltage Rating: 250/125 V
  • Wattage: 3750 W
  • Wire Size: #18 AWG to #10 AWG
  • Voltage Rating Description: 250/125 V
  • Width: 1.53 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358523772
Item Long Description Locking Devices, Twist-Lock, Industrial, Single Flush Receptacle, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non- NEMA, Screw Terminal, Black Phenolic.
GTiN 00783585237725
Length 3.31 in
Width 1.53 in
Size Standard
Color Black
Voltage 125 Volt
Type Receptacle
Material Thermoplastic
Applications Heavy Duty Industrial
Height 1.25 in
Weight 0.25 lb
Wire Size 18-10 AWG
Wattage 3750 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 10 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Conductor Size 14 AWG
Mounting Type Screw
Standard CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
