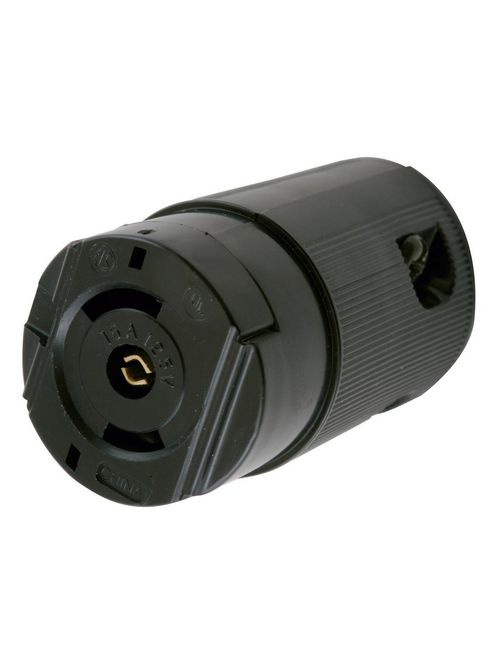

Hubbell Wiring Devices HBL7593V 15 Amp 125 Volt 2-Pole 3-Wire NEMA ML-2R Black Locking Connector Body
Product image thumbnail 0
Product image thumbnail 1
$26.12/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7593V
North Coast Part # 67559

Features

  • Fully insulated, abuse resistant nylon housing
  • Insulation displacement terminals reduce wiring time
  • Insulation displacement terminal

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black
  • Cord Range: 0.300"-0.430"(7.6-10.9)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 15A Midget Twist-Lock® Valise® Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Connector Body
  • UPC: 783585237763

Dimensions

  • Dimensions: 1.19 in x 1.19 in x 1.98 in
  • Display Size: Midget Locking
  • Height: 1.98 in
  • Length: 1.19 in
  • Weight: 0.10 lb
  • Width: 1.19 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Insulation Displacement
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Cable Range: 0.281 - 0.421 in
  • Conductor Range: #14 AWG to #12 AWG
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #14 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Listed to UL 498
  • Nema Rating: ML-2R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523776
GTiN 00783585237763
Length 1.19 in
Width 1.19 in
Size 1.19 in x 1.19 in x 1.98 in
Color Black
Voltage 125 Volt
Type Female, Midget Locking
Material Composite
Number of Conductors 3
Conductor Size 14-12 AWG
Applications Heavy Duty Industrial
Height 1.98 in
Weight 0.10 lb
Temperature Rating -25 to 75 C with Impact, -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 2
TC Connection Insulation Displacement
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Valise
Standard CSA C22.2 No.42,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
