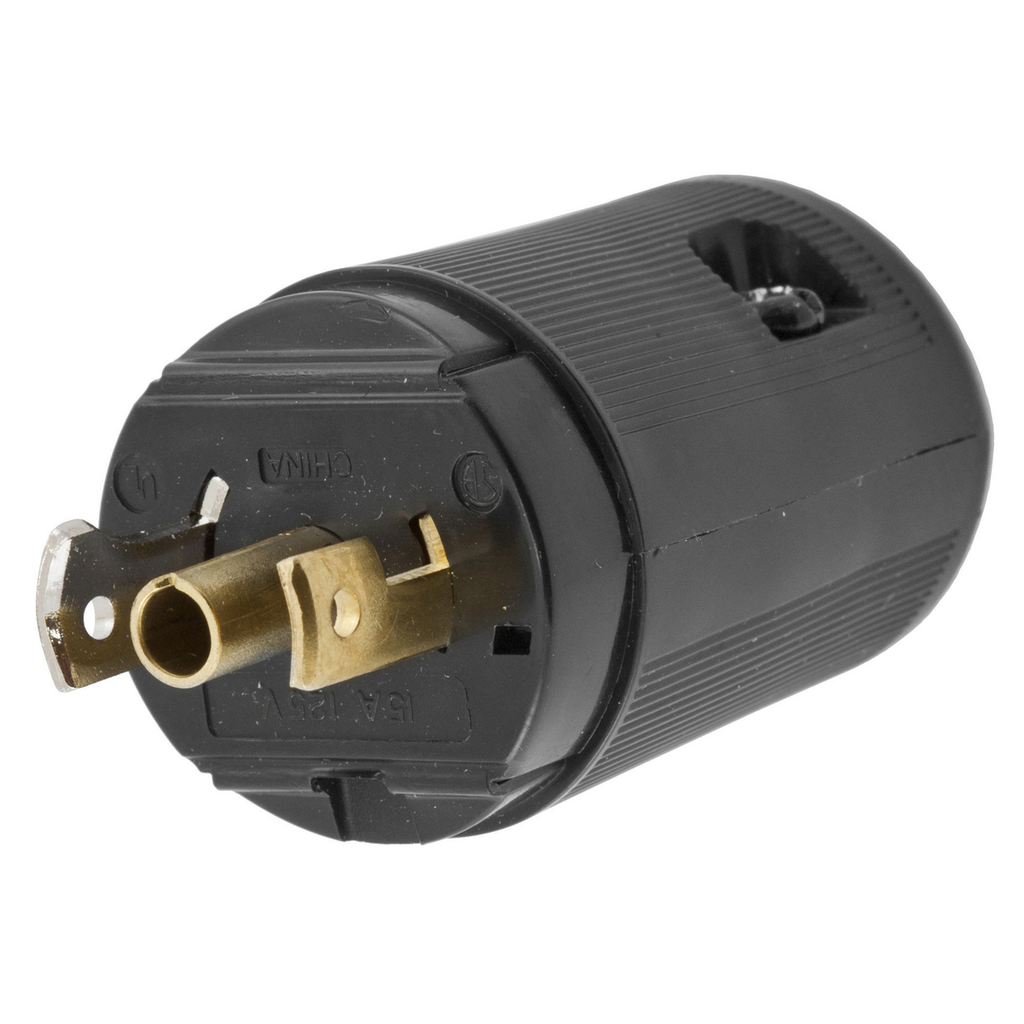

Hubbell Wiring Devices HBL7594V 15 Amp 125 Volt 2-Pole 3-Wire NEMA ML-2P Black Locking Plug
$20.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7594V
North Coast Part # 67676

Features

  • Fully insulated, abuse resistant nylon housing
  • Insulation displacement terminals reduce wiring time
  • Insulation displacement terminal
  • Totally insulated body adds extra measure of safety

Specifications

General

  • Application: Industrial/Commercial
  • Color: Black
  • Cord Range: 0.300"-0.430"(7.6-10.9)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: 15A Midget Twist-Lock® Valise® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585237787

Dimensions

  • Dimensions: 1.19 in x 1.19 in x 1.61 in
  • Display Size: Midget Locking
  • Height: 1.61 in
  • Length: 1.19 in
  • Weight: 0.05 lb
  • Width: 1.19 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Insulation Displacement
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Cable Range: 0.300 - 0.430 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #14 AWG

Certifications and Compliance

  • Industry Standard(s): Fed.Spec.W-C-596
  • Nema Rating: ML-2P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523778
GTiN 00783585237787
Length 1.19 in
Width 1.19 in
Size 1.19 in x 1.19 in x 1.61 in
Color Black
Voltage 125 Volt
Type Midget, Standard
Material Nylon
Conductor Size 18-14 AWG
Cord Type Portable
Applications For Industrial/Commercial
Mounting Type Surface, Cord
Height 1.61 in
Weight 0.05 lb
Wire Size 18-14 AWG
Wattage 1,875 Watt
Temperature Rating -40 to 75 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Dielectric Strength 2000 V
Current 15 A
Blade Dimensions 1-3/61 in dia x 1.61 in H
Cord Size 0.3 - 0.43 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Valise
Standard Fed.Spec.W-C-596
