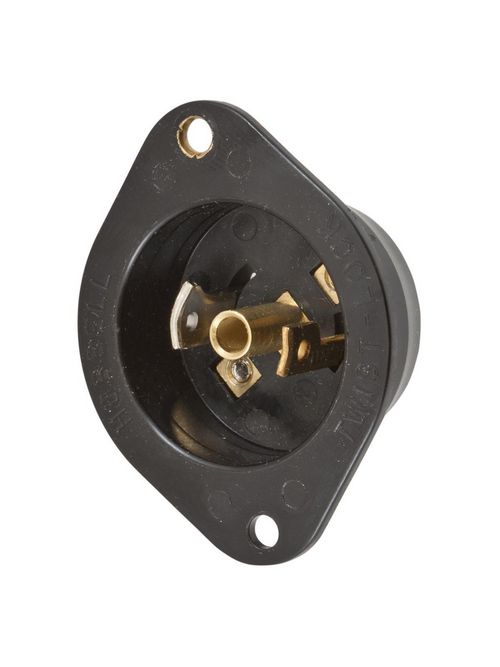

Hubbell Wiring Devices HBL7595N 15 Amp 125 Volt 2-Pole 3-Wire NEMA ML-2P Black Nylon Flanged Inlet
Product image thumbnail 0
Product image thumbnail 1
$18.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7595N
North Coast Part # 67695

Features

  • Fully Insulated nylon casing with integral flange
  • Black color blends in with equipment

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 15A Midget Twist-Lock® Flanged Inlet
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Flanged Inlet
  • UPC: 783585237800

Dimensions

  • Dimensions: 2.00 in x 1.63 in x 0.94 in
  • Display Size: Midget Locking
  • Height: 0.94 in
  • Length: 2.00 in
  • Weight: 0.05 lb
  • Width: 1.63 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #14 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Listed to UL 498
  • Nema Rating: ML-2P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523780
GTiN 00783585237800
Length 2.00 in
Width 1.63 in
Size 2.00 in x 1.63 in x 0.94 in
Color Black
Voltage 125 Volt
Type Midget, Locking
Material Thermoplastic
Applications Heavy Duty Industrial
Height 0.94 in
Weight 0.05 lb
Wire Size 18-14 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Conductor Size 14 AWG
Mounting Type Screw
Standard CSA C22.2 No.42,UL 498
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
