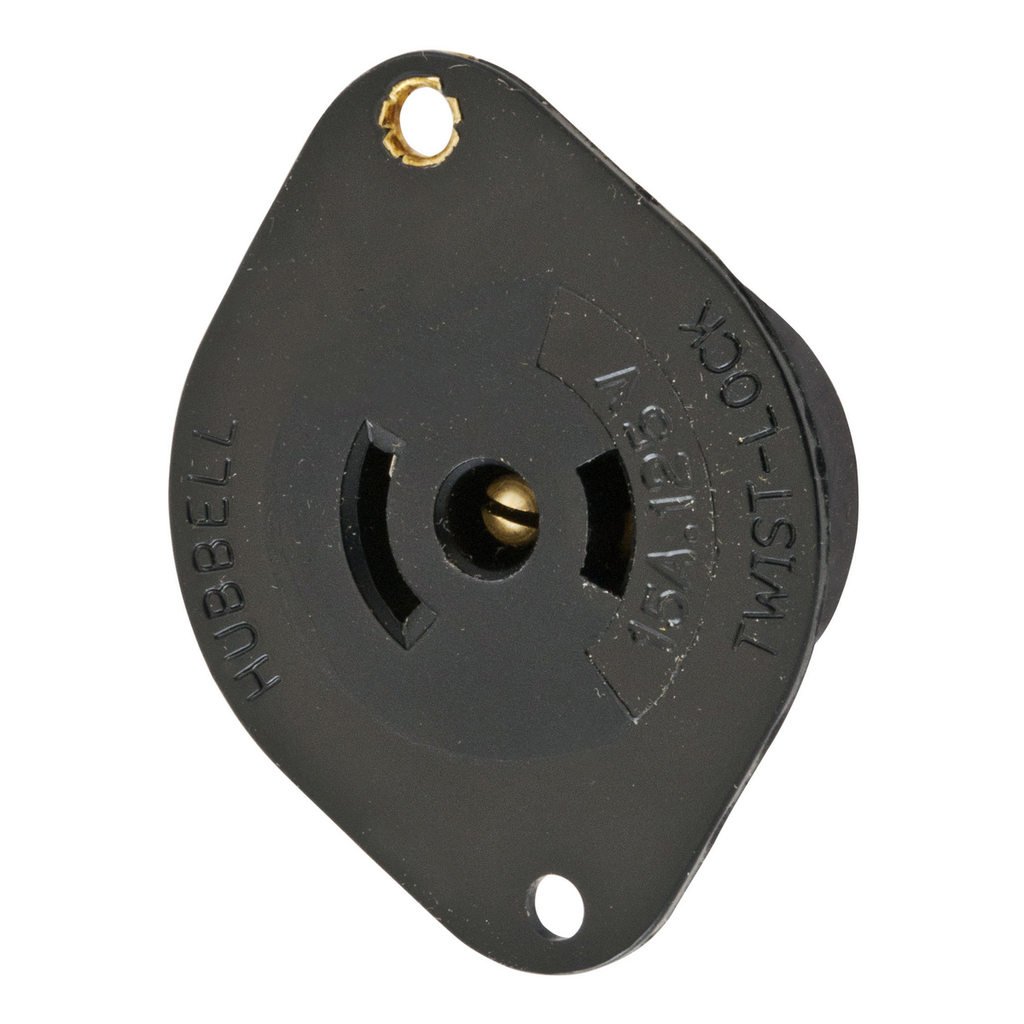

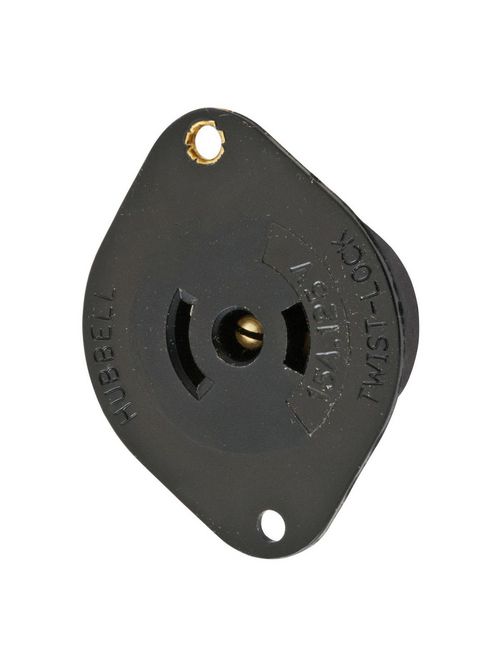

Hubbell Wiring Devices HBL7596N 15 Amp 125 VAC 2-Pole 3-Wire NEMA ML-2R Black Nylon Flanged Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$22.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL7596N
North Coast Part # 67828

Features

  • Fully Insulated nylon casing with integral flange
  • Black color blends in with equipment
  • Standard

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 2.06 in x 1.62 in x 0.92 in
  • Each - Height: 1.540 in
  • Each - Length: 2.420 in
  • Each - Width: 2.420 in
  • Height: 0.92 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Listed to UL 498
  • Length: 2.06 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: ML-2R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 2.06 in x 1.62 in x 0.92 in
  • Special Features: Standard
  • Standard: Certified to CSA C22.2 No.42; Listed to UL 498
  • Type: Flanged Receptacle
  • Voltage Rating: 125 V
  • Wattage: 1875 W
  • Wire Size: #18 AWG to #14 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.62 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358523782
Item Long Description Locking Devices, Midget Twist-Lock, Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML- 2R, Screw Terminal, Black Nylon Flange.
GTiN 00783585237824
Length 2.06 in
Width 1.62 in
Size 2.06 in x 1.62 in x 0.92 in
Color Black
Voltage 125 Volt
Type Flanged Receptacle
Material Nylon
Applications Heavy Duty Industrial
Height 0.92 in
Weight 0.05 lb
Wire Size 18-14 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock Devices
Standard CSA C22.2 No.42,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
