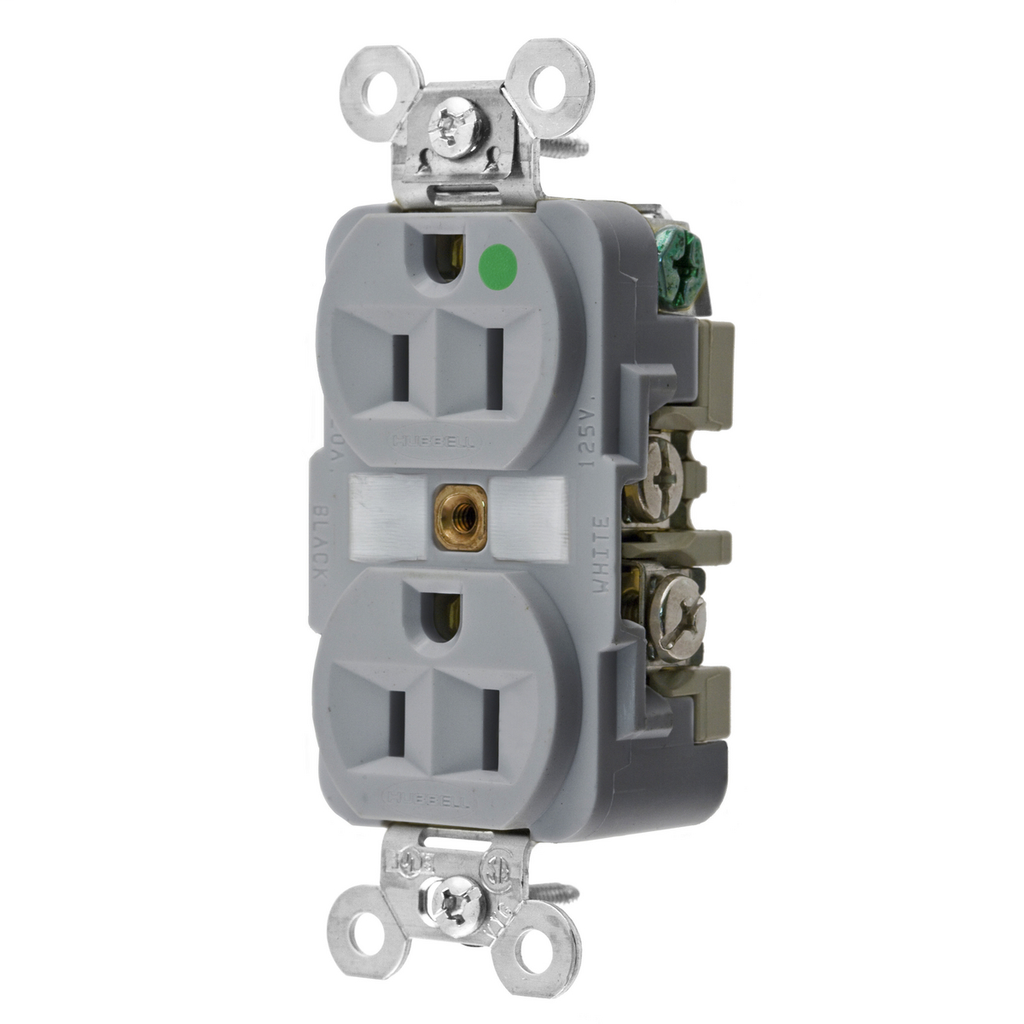

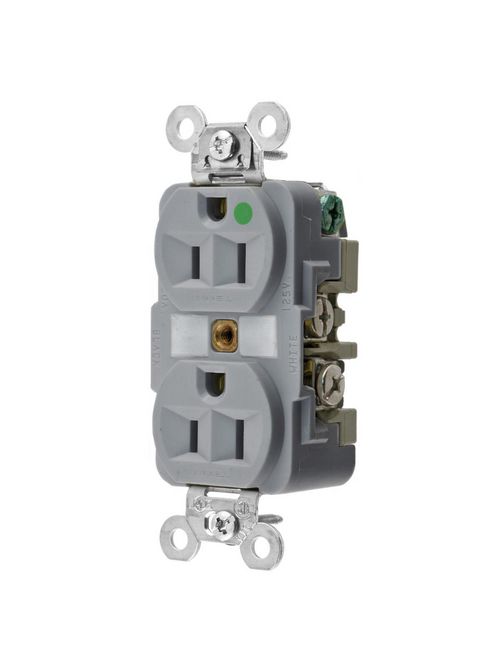

Hubbell Wiring Devices HBL8200GY 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Gray Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$34.08/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL8200GY
North Coast Part # 68591

Features

  • Deep body design with circuit ID face
  • Patented ground contact provides redundant grounding
  • Unique bypass contact design

Specifications

General

  • Application: Extra Heavy Duty Hospital Grade
  • Color: Gray
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Traditional Duplex
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Hospital Grade
  • Style: Thermoplastic polyester face
  • Type: Duplex Receptacle
  • UPC: 783585435640

Dimensions

  • Dimensions: 3.28 in x 1.65 in x 1.19 in
  • Display Size: Standard Sized Product
  • Height: 1.19 in
  • Length: 3.28 in
  • Weight: 0.25 lb
  • Width: 1.65 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358543564
GTiN 00783585435640
Length 3.28 in
Width 1.65 in
Size Standard Sized
Color Gray
Voltage 125 Volt
Type Extra Heavy Duty
Material Nylon
Conductor Size 14 - 12 AWG
Product Series Hospital Grade
Applications Extra Heavy Duty, Hospitals
Mounting Type Screw, Recessed/Flush
Height 1.19 in
Grade Hospital
Weight 0.25 lb
Wire Size 14-12 AWG
Connection Type Back and Side Wired
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Self
TC Connection Back and Side Wired Terminal Screws
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Standard NEMA WD-6,UL498 File No. E2186,No. 42 File 285,C22.2,CSA,UL,Fed. Spec. W-C-596
