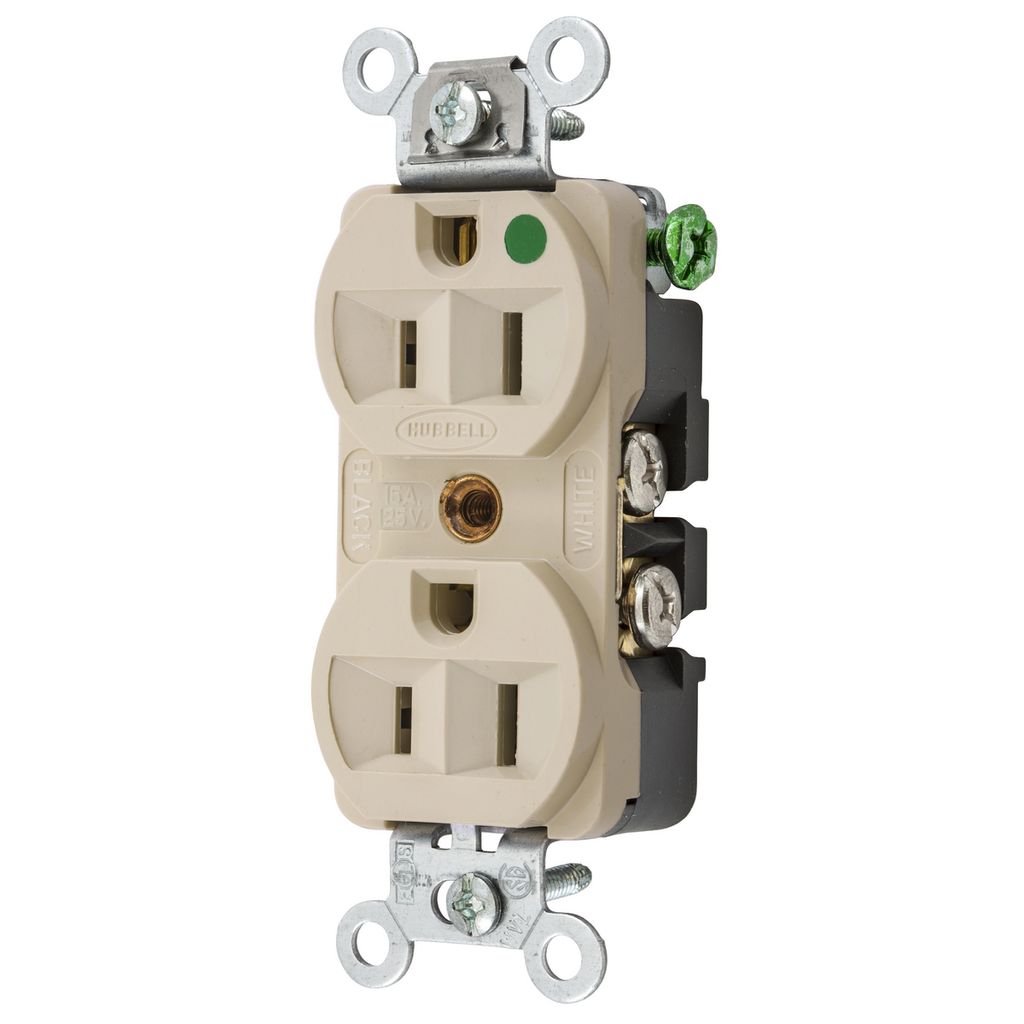

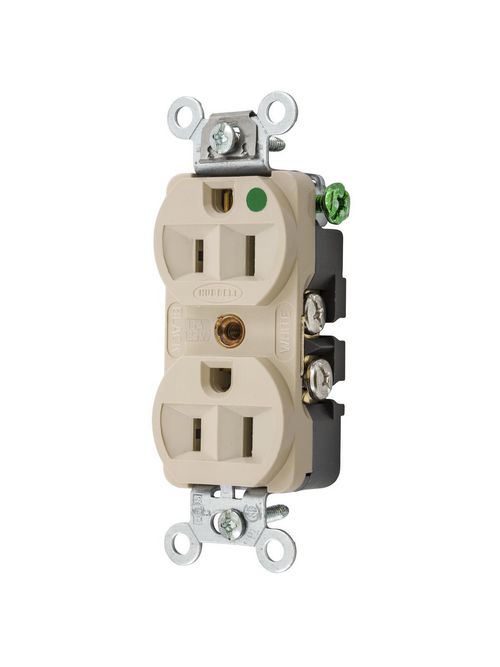

Hubbell Wiring Devices HBL8200HI 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$29.02/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL8200HI
North Coast Part # 68519

Features

  • Slender/compact design
  • Impact-resistant finder groove face
  • Triple wipe contacts

Specifications

General

  • Application: Slender/Compact Hospital Grade
  • Color: Ivory
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Traditional Duplex
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Hospital Grade
  • Style: Finder Groove Face
  • Type: Receptacle
  • UPC: 783585015835

Dimensions

  • Dimensions: 3.28 in x 1.33 in x 1.05 in
  • Display Size: Slender/Compact
  • Height: 1.05 in
  • Length: 3.28 in
  • Weight: 0.25 lb
  • Width: 1.33 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501583
GTiN 00783585015835
Length 3.28 in
Finish Matte
Width 1.33 in
Size Slender/Compact
Color Ivory
Voltage 125 Volt
Type Receptacle
Material Thermoplastic
Conductor Size 14-12 AWG
Product Series Hospital Grade
Applications Slender/Compact Hospital Grade
Mounting Type Screw, Flush
Height 1.05 in
Grade Compact Hospital
Weight 0.25 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wire
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired Screw Terminals
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
