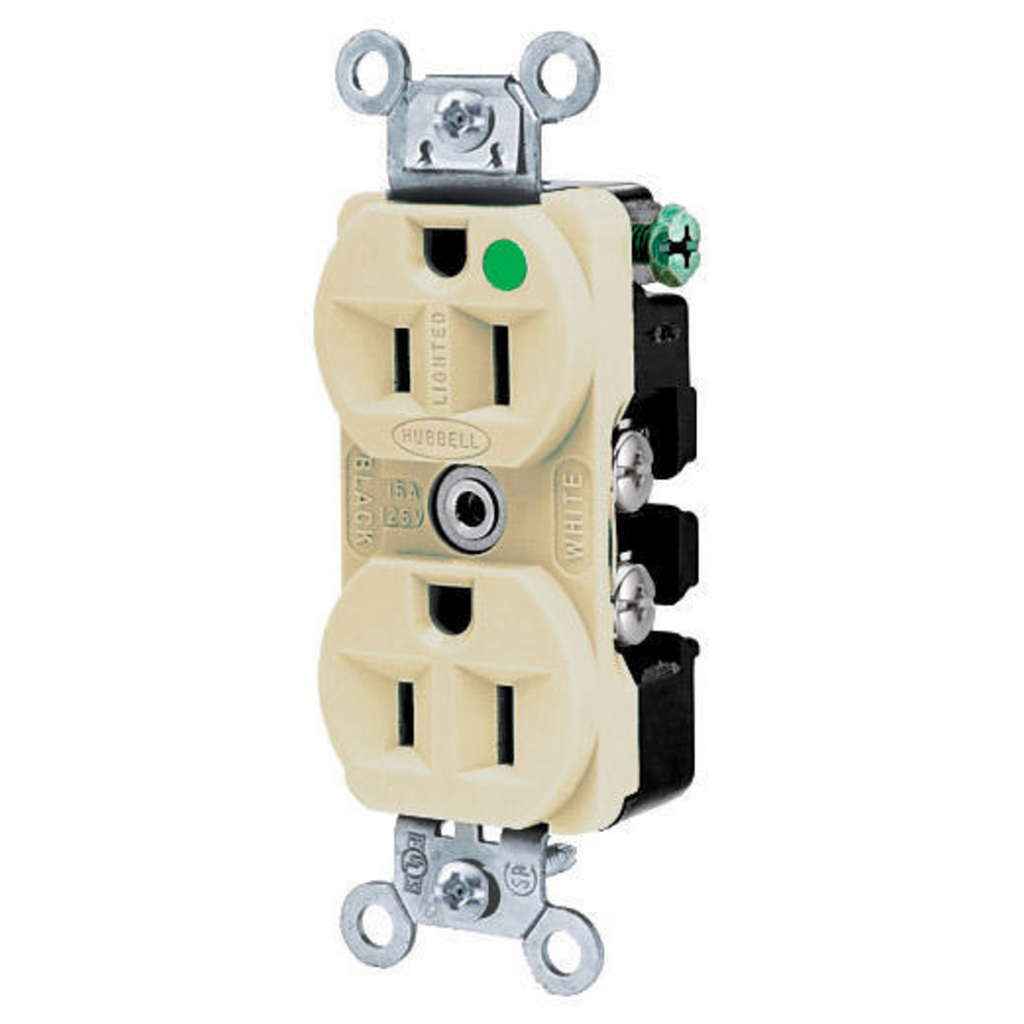

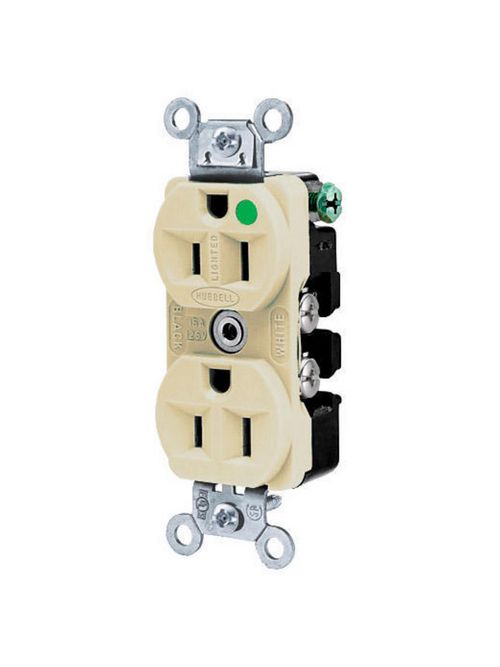

Hubbell Wiring Devices HBL8200ILI 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Straight Blade Duplex Receptacle
$54.45/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL8200ILI
North Coast Part # 153217

Features

  • Slender/compact design
  • Impact-resistant finder groove face
  • Triple wipe contacts
  • Entire face illuminated by two LEDs

Specifications

General

  • Application: Extra Heavy Duty Hospital Grade
  • Color: Ivory
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Traditional Duplex
  • Material: Polycarbonate
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Hospital Grade
  • Style: Finder Groove Face
  • Type: Receptacle
  • UPC: 783585016450

Dimensions

  • Dimensions: 3.28 in x 1.33 in x 1.05 in
  • Display Size: Standard Sized Product
  • Height: 1.05 in
  • Length: 3.28 in
  • Weight: 0.2 lb
  • Width: 1.33 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501645
GTiN 00783585016450
Length 3.28 in
Width 1.33 in
Size 3.28 in x 1.33 in x 1.05 in
Color Ivory
Voltage 125 Volt
Type Illuminated Face, Extra Heavy Duty
Material Nylon
Conductor Size 14 - 12 AWG
Product Series Hospital Grade
Applications Extra Heavy Duty, Hospitals
Mounting Type Screw, Recessed/Flush
Height 1.05 in
Grade Hospital
Weight 0.2 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wired
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Self
TC Connection Back and Side Wired Screw Terminals
Current 15 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
