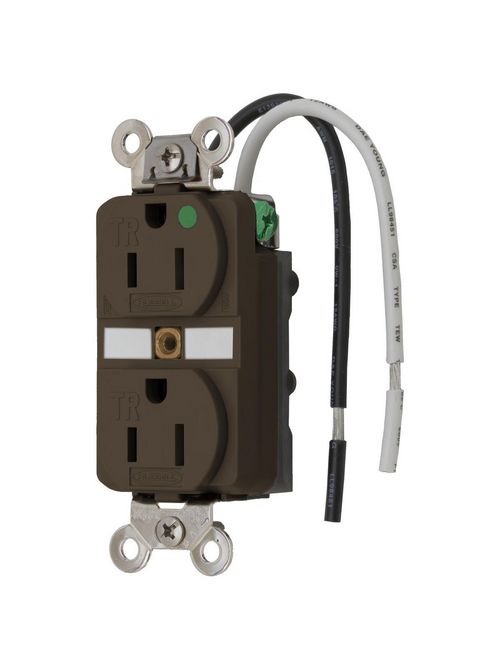

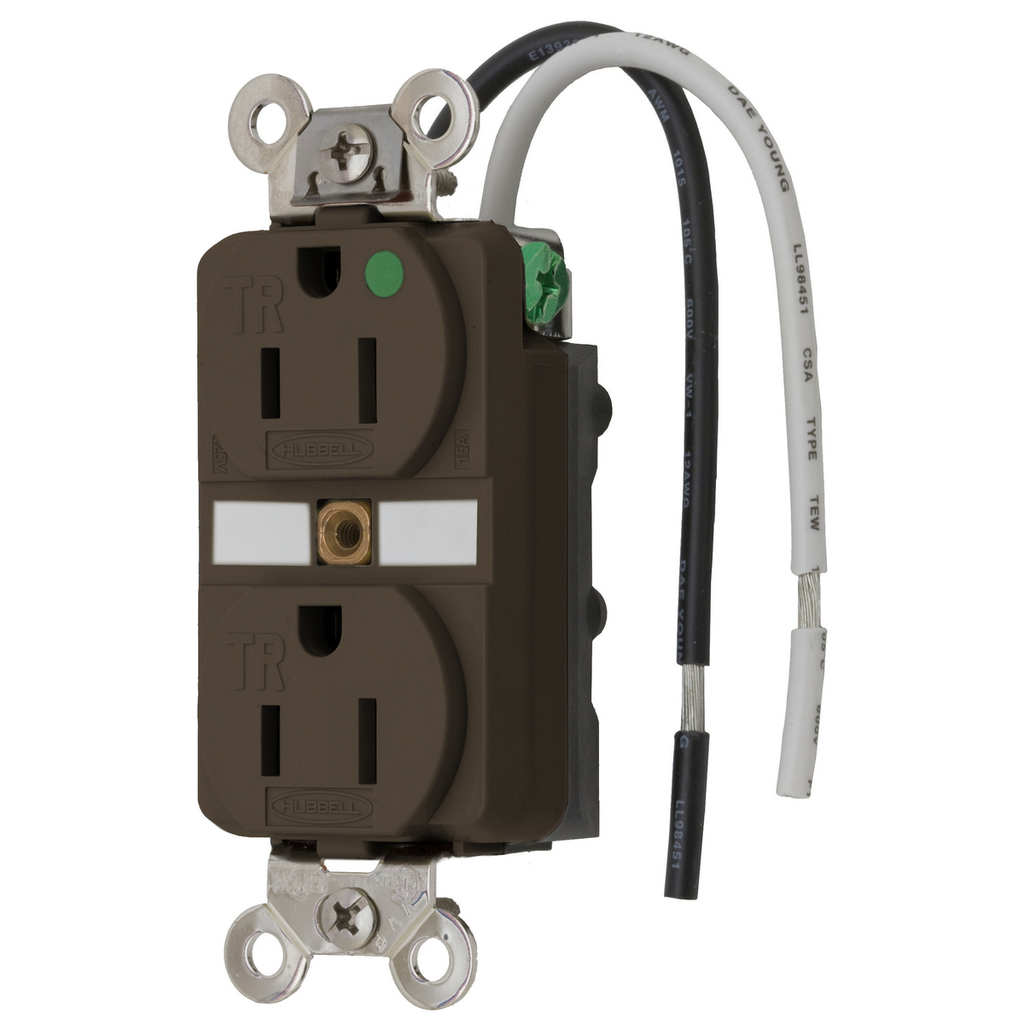

HWDK HBL8200SGA DUP RCPT, TAMP-RES,
Product image thumbnail 0
Product image thumbnail 1
$45.38/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL8200SGA
North Coast Part # 160834

Features

  • Unique tamper-resistant contact mechanism prevents injury
  • Integral wire leads for fast installation and no exposed live parts
  • One-piece nickel-plated brass ground strap
  • I.D. marking surface helps in quick circuit identification

Specifications

General

  • Application: Extra Heavy Duty Hospital Grade
  • Color: Brown
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Traditional Duplex
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94V-0 and UL 94-5 VA | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Ground Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Hospital Grade
  • Style: Tamper Resistant
  • Type: Receptacle
  • UPC: 783585152226

Dimensions

  • Dimensions: 3.29 in x 1.65 in x 1.27 in
  • Display Size: Standard Sized Product
  • Height: 1.27 in
  • Length: 3.29 in
  • Weight: 0.3 lb
  • Width: 1.65 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Wire Leads
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358515222
GTiN 00783585152226
Length 3.29 in
Width 1.65 in
Size Standard
Color Brown
Voltage 125 Volt
Type Traditional, Tamper-Resistant
Material Thermoplastic
Product Series Hospital Grade
Applications Extra Heavy Duty Hospital Grade
Height 1.27 in
Weight 0.3 lb
Wire Size 14-12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired Terminal Screws
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Conductor Size 14-12 AWG
Mounting Type Screw
Standard CSA,No. 42 File 285,Fed. Spec. W-C-596,C22.2,UL,UL498 File No. E2186,NEMA WD-6
Connection Type Back and Side Wired
Wire Length 6 in
