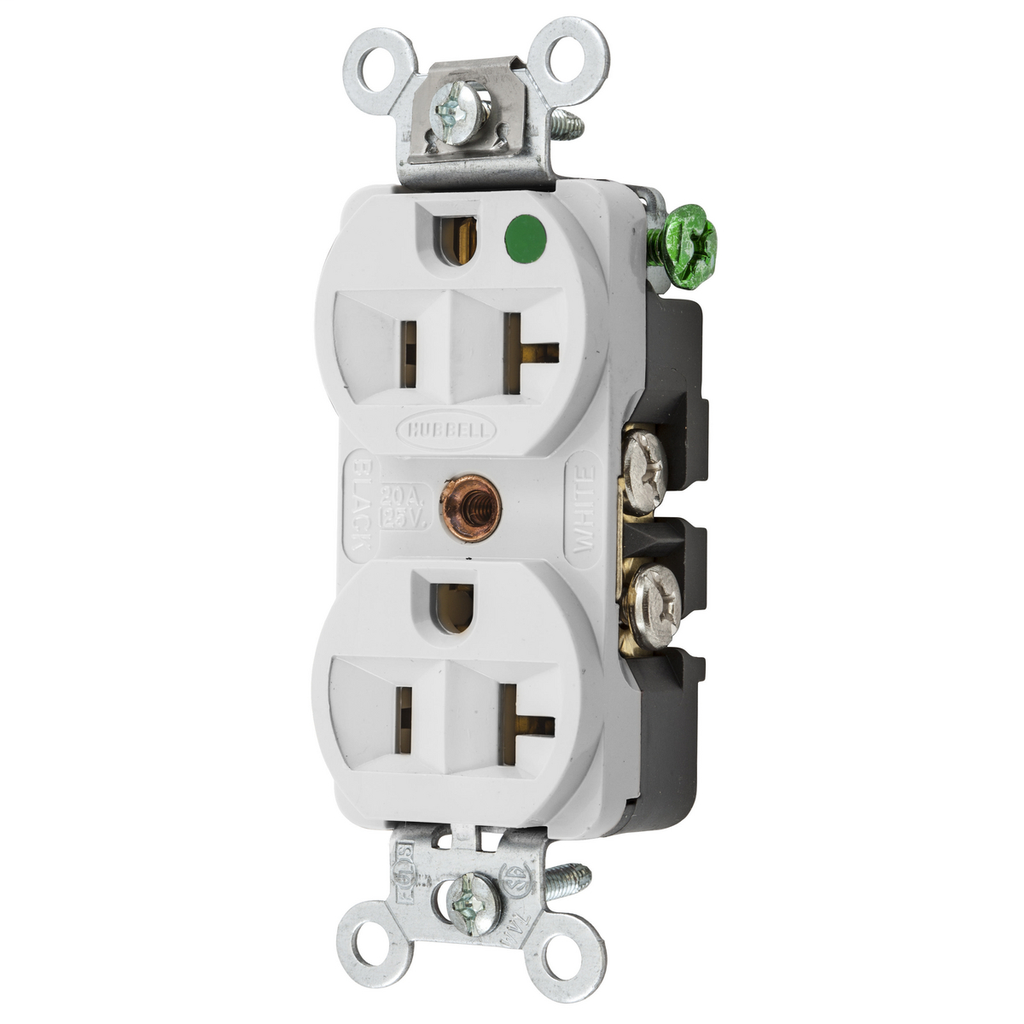

Hubbell Wiring Devices HBL8300HW 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Straight Blade Duplex Receptacle

$31.55/ea

In Stock | 46 available at 4 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Application: Slender/Compact Hospital Grade
Color: White
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum: 1
Item Type: Traditional Duplex
Material: Thermoplastic
Material - Mounting Hardware: Screw Mounting
Number Of Poles: 2-Pole
OEM Brand Name: Hubbell Wiring Device-Kellems
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series: Hospital Grade
Style: Slender/Compact
Type: Duplex Receptacle
UPC: 783585015910

Industry Standard(s): CSA Certified, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
Nema Rating: 5-20R

UPC	78358501591
GTiN	00783585015910
Length	3.28 in
Width	1.33 in
Size	Slender/Compact
Color	White
Voltage	125 Volt
Type	Duplex Receptacle
Material	Thermoplastic
Conductor Size	14-12 AWG
Product Series	Hospital Grade
Applications	Slender/Compact Hospital Grade
Mounting Type	Screw, Flush
Height	1.05 in
Grade	Compact Hospital
Weight	0.25 lb
Wire Size	12-10 AWG
Connection Type	Back and Side Wire
Wattage	2000 Watt
Family Brand Name	Hubbell Wiring Device Kellems
Carton Qty	10
TC Connection	Back and Side Wired Screw Terminals
Current	20 A
Environmental Conditions	Indoor Dry Unless Protected by Additional Means
Number of Poles	2 Pole
Number of Wires	3-Wire Grounding
Sub Brand	Straight Blade Devices
Standard	C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength	Withstands 2,000V minimum
