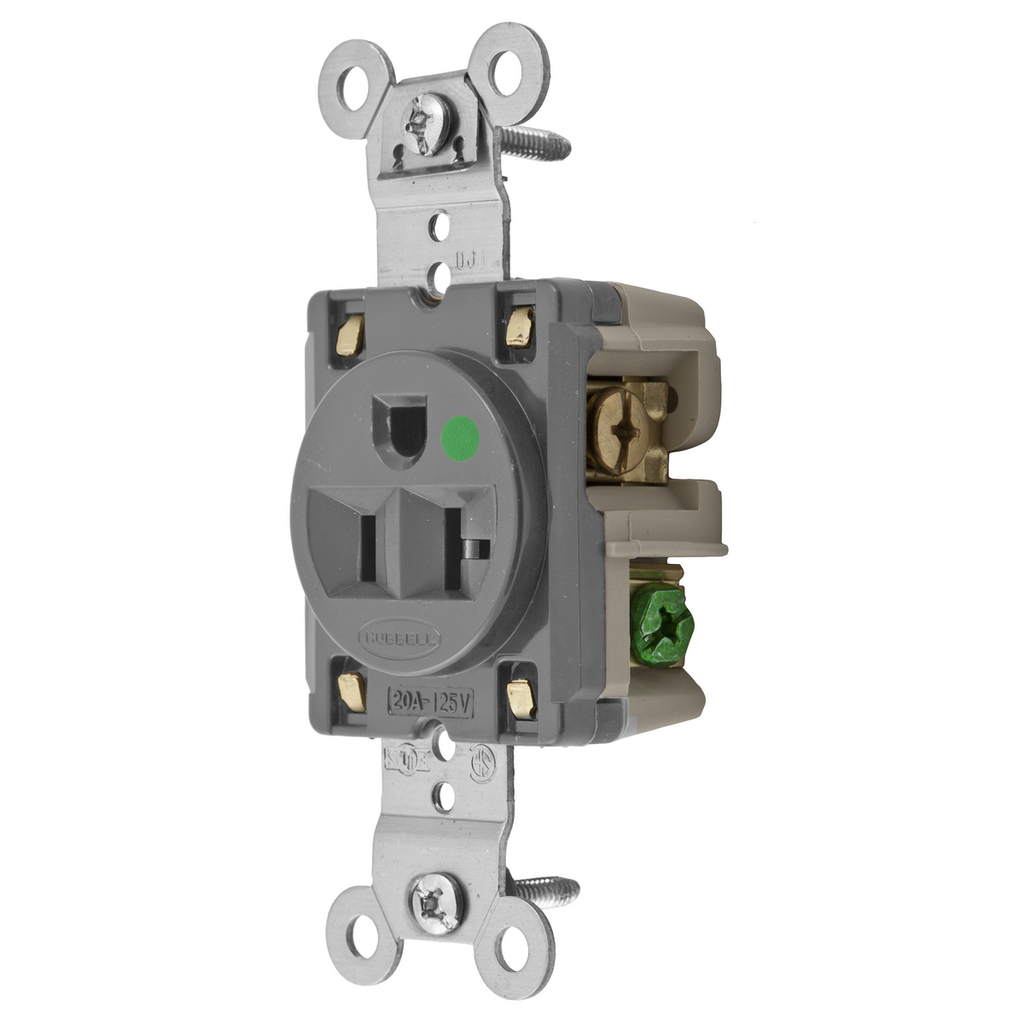

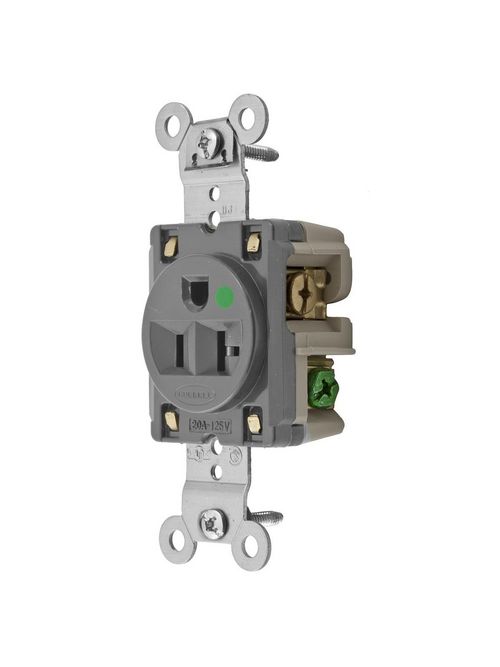

Hubbell Wiring Devices HBL8310GY 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Gray Single Straight Blade Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$32.76/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL8310GY
North Coast Part # 159109

Features

  • One-piece nickel-plated brass integral ground strap
  • Patented bypass contact design
  • Self Grounding

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.63 in x 1.19 in
  • Each - Height: 1.540 in
  • Each - Length: 4.160 in
  • Each - Width: 1.790 in
  • Height: 1.19 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Extra Heavy Duty Hospital Grade
  • Color: Gray
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.63 in x 1.19 in
  • Special Features: Self Grounding
  • Standard: Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
  • Type: Receptacle
  • Voltage Rating: 125 V
  • Wattage: 2500 W
  • Wire Size: #12 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.63 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358501630
Item Long Description Straight Blade Devices, Receptacles, Single, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Single Pack.
GTiN 00783585016306
Length 3.28 in
Width 1.63 in
Size 3.28 in x 1.63 in x 1.19 in
Color Gray
Voltage 125 Volt
Type Extra Heavy Duty
Material Thermoplastic/Composite
Conductor Size 14 - 12 AWG
Product Series Hospital Grade
Applications Extra Heavy Duty, Hospitals
Mounting Type Screw, Recessed/Flush
Height 1.19 in
Grade Hospital
Weight 0.2 lb
Wire Size 12-10 AWG
Connection Type Back and Side Wired
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Back and Side Wired Screw Terminals
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
