Manufacturer Hubbell / Kellems
Mfg Catalog # HBL8362ISA
North Coast Part # 65382

Features

  • High-impact nylon face resists breakage
  • Automatic grounding clip attached to bridge
  • Power-on indicator light verifies instantly that power is available
  • Distinctive surge symbol for visual identification of surge suppression receptacle
  • Standard Product

Specifications

  • Color: Ivory
  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Each - Height: 1.800 in
  • Each - Length: 4.300 in
  • Each - Width: 2.300 in
  • Industry Standard(s): CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
  • Performance: Electrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs) Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Decorator Duplex with Light and Alarm
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Frequency Rating: 60 Hz
  • Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
  • Outlet: Straight Blade
  • Phase: Single Phase
  • Response Time: 5
  • Special Features: Standard Product
  • Standard: CSA Certified to Specification C22.2 No. 42; Listed to UL Standards 498 Receptacles; UL Listed File E2186
  • Type: Duplex
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358506051

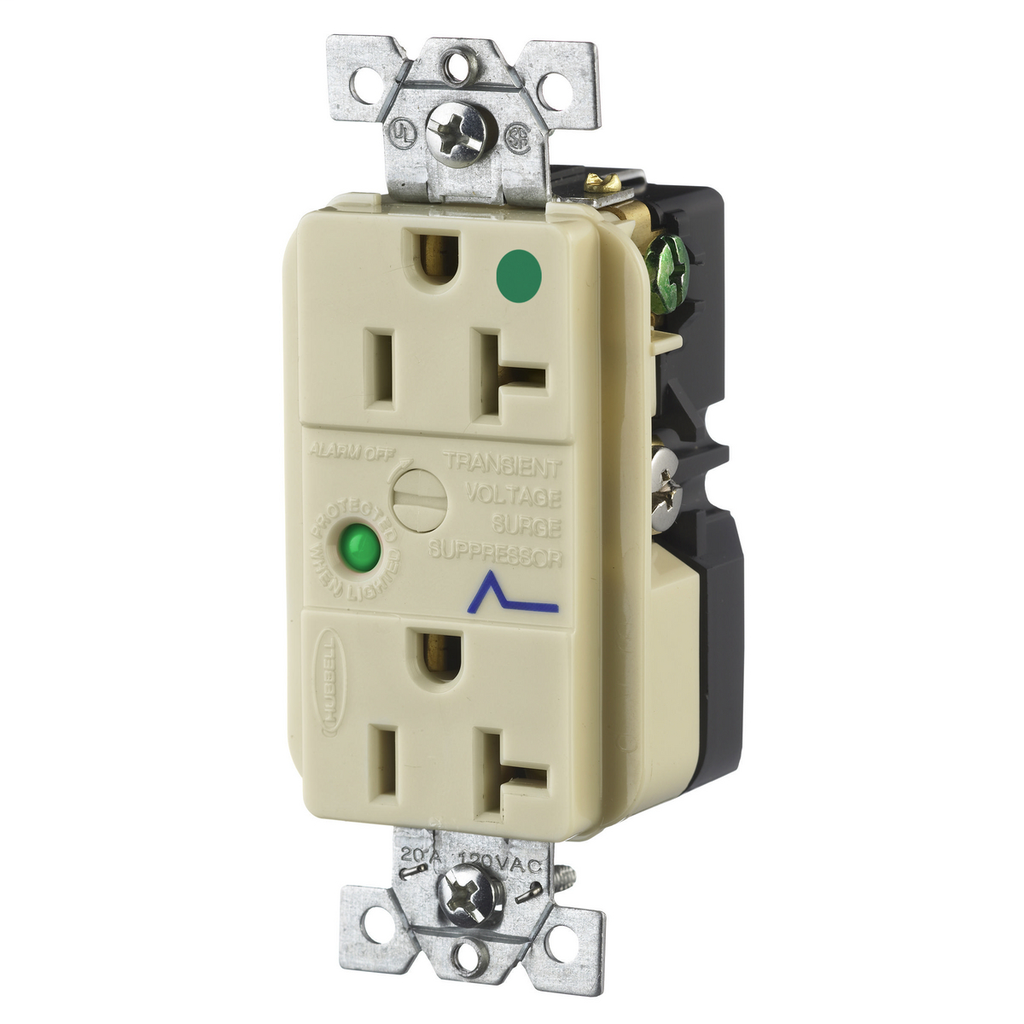

Item Long Description Surge Protective Devices, SPIKESHIELD Hospital Grade Surge Suppression Receptacle, Duplex, 20A 125V, 5-20R, Ivory
GTiN 00783585060514
Length 4.300 in
Width 2.300 in
Size Standard
Color Ivory
Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Voltage 125 Volt
Type Duplex
Material Composite
Product Series Hospital Grade
Applications Decorator Duplex with Light and Alarm
Height 1.800 in
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 20 A
Response Time 5
Sub Brand SpikeShield
Standard C22.2 No. 42,CSA,File E2186,UL,UL Standards 498 Receptacles
Class Normal and Common Mode
Environmental Conditions Indoor Dry Unless Protected By Additional Means
