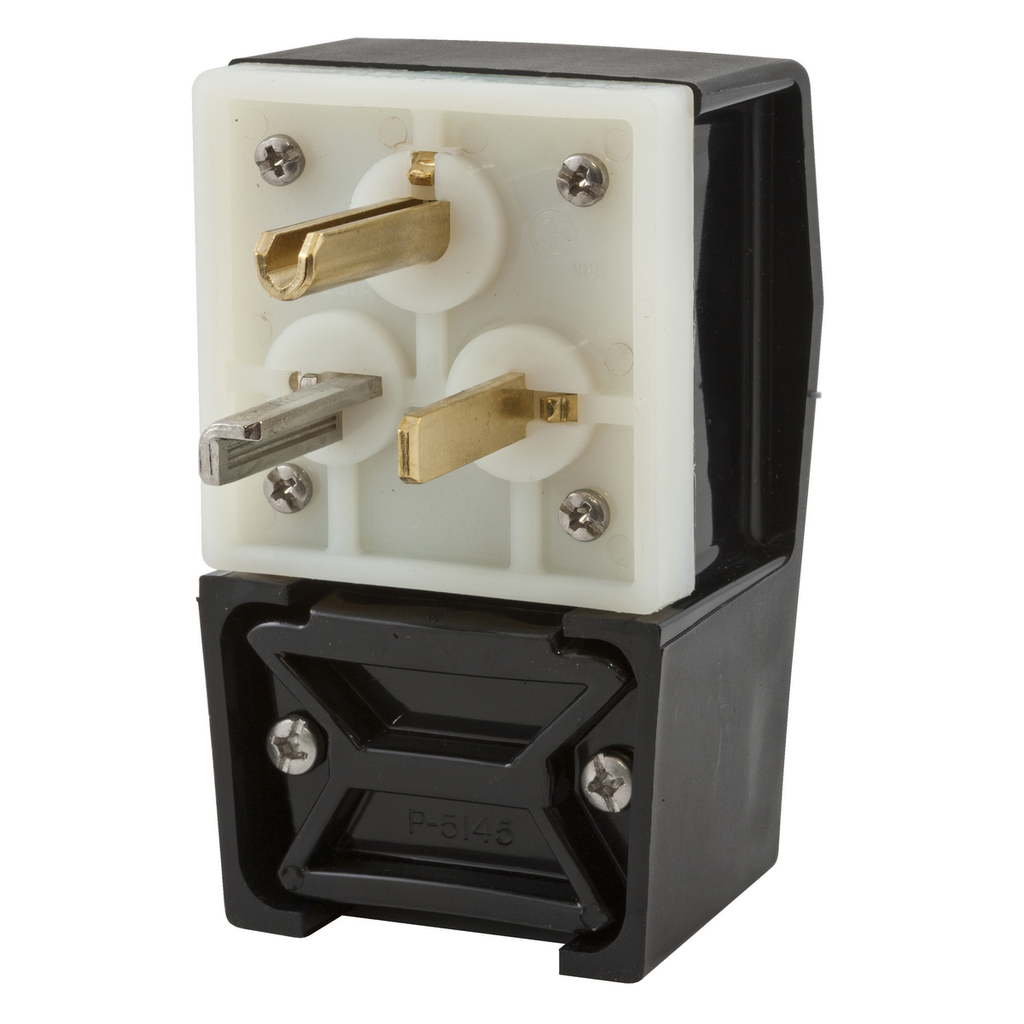

Hubbell Wiring Devices HBL9309 30 Amp 125 Volt 2-Pole 3-Wire NEMA 5-30P Black Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$93.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9309
North Coast Part # 66359

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 4.34 in x 2.75 in x 1.88 in
  • Each - Height: 2.548 in
  • Each - Length: 4.788 in
  • Each - Width: 2.858 in
  • Height: 1.88 in
  • Horsepower - Maximum: 2
  • Length: 4.34 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#4 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Color: Black
  • NEMA Rating: 5-30P
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Size: 4.34 in x 2.75 in x 1.88 in
  • Type: Plug
  • Voltage Rating: 125 V
  • Wattage: 3750 W
  • Wire Size: #12 AWG to #4 AWG
  • Voltage Rating Description: 125 V
  • Width: 2.75 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358501522
Item Long Description Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 125V, 5-30P, Black, Single Pack.
GTiN 00783585015224
Length 4.34 in
Width 2.75 in
Size 4.34 in x 2.75 in x 1.88 in
Color Black
Voltage 125 Volt
Type Insulgrip, Standard Sized, Angled, 4 Position
Material Composite
Conductor Size 12-6 AWG
Cord Type Portable
Applications Industrial/Commercial
Mounting Type Surface
Height 1.88 in
Weight 0.55 lb
Wire Size 12-4 AWG
Wattage 3750 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Yes
TC Connection Terminal Screws
Current 30 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Insulgrip
