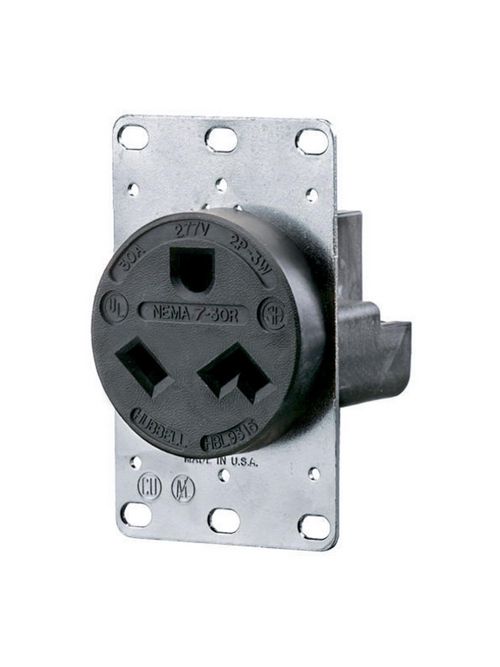

Hubbell Wiring Devices HBL9315 30 Amp 277 Volt 2-Pole 3-Wire NEMA 7-30R Black Straight Blade Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$49.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9315
North Coast Part # 66409

Features

  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • 30A
  • 277V AC
  • 2 Pole
  • 3 Wire Grounding

Specifications

  • Product Type: Flush-receptacles
  • Color: Black
  • Receptacle Style: Single
  • Face Shape: Traditional
  • Standard: NEMA
  • Amperage: 30A
  • Voltage: 277V AC
  • Poles and Wires: 2 Pole, 3-Wire Grounding
  • Wiring Method: Back and Side
  • Hospital Grade ?: No
  • Receptacle Grade: Heavy Duty Spec Grade
  • Face Style: Finder Groove
  • NEMA No.: 7-30R
  • Horsepower: 3
  • Type: 2 Pole, 3 Wire, Grounding
  • Rating: 30A, 277V
  • Certification: UL, CSA, Fed Spec
  • Terminal Screw Material: Plated Steel
  • Ground Screw Material: Plated Steel
  • Top Material: Phenolic
  • Base Material: Phenolic
  • Power Contacts Material: Brass
  • Mounting Strap Material: .062" (1.5) Plated Steel
  • Mounting Screw Material: Steel-Zinc Plated
  • Box Terminals Material: Brass
  • Dielectric Voltage: Withstands 2,000V minimum.
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
  • Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
  • Terminal Accommodation: #10-#4 AWG copper stranded or solid conductor only.
  • Product Identification: Ratings are a permanent part of the device.
  • Flammability: UL 94 V0.
  • Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
  • Weight in LBs: 0.450

NEMA Configuration

Color

Product Type

Ordering Information

  • Device Color: Black

Listings

  • UL Listed File E2186
  • CSA Certified
  • NEMA WD-6 Compliant

Performance

Electrical

  • Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • Terminal Accommodation: #12 AWG through #4 AWG copper wire only
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA

Environmental

  • Flammability: UL 94 V-0
  • IP Suitability: IP20
  • Operating Temperatures: Maximum continuous 75°C; minimum -40°C (w/o impact)

Product Drawings / Installation Instructions

Product

Overview

UPC 78358501551
Item Long Description Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 277V AC, 7-30R, Black, Single Pack.
GTiN 00783585015514
Size 3.28 in x 2.25 in x 2.23 in
Color Black
Operating Temperature -40 C
Voltage 277 Volt
Type Receptacle
Material Thermoplastic
Applications Heavy Duty
Wire Size 12-4 AWG
Wattage 8310 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired Screw Terminals
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Wire Count 3
NEMA 7-30R
