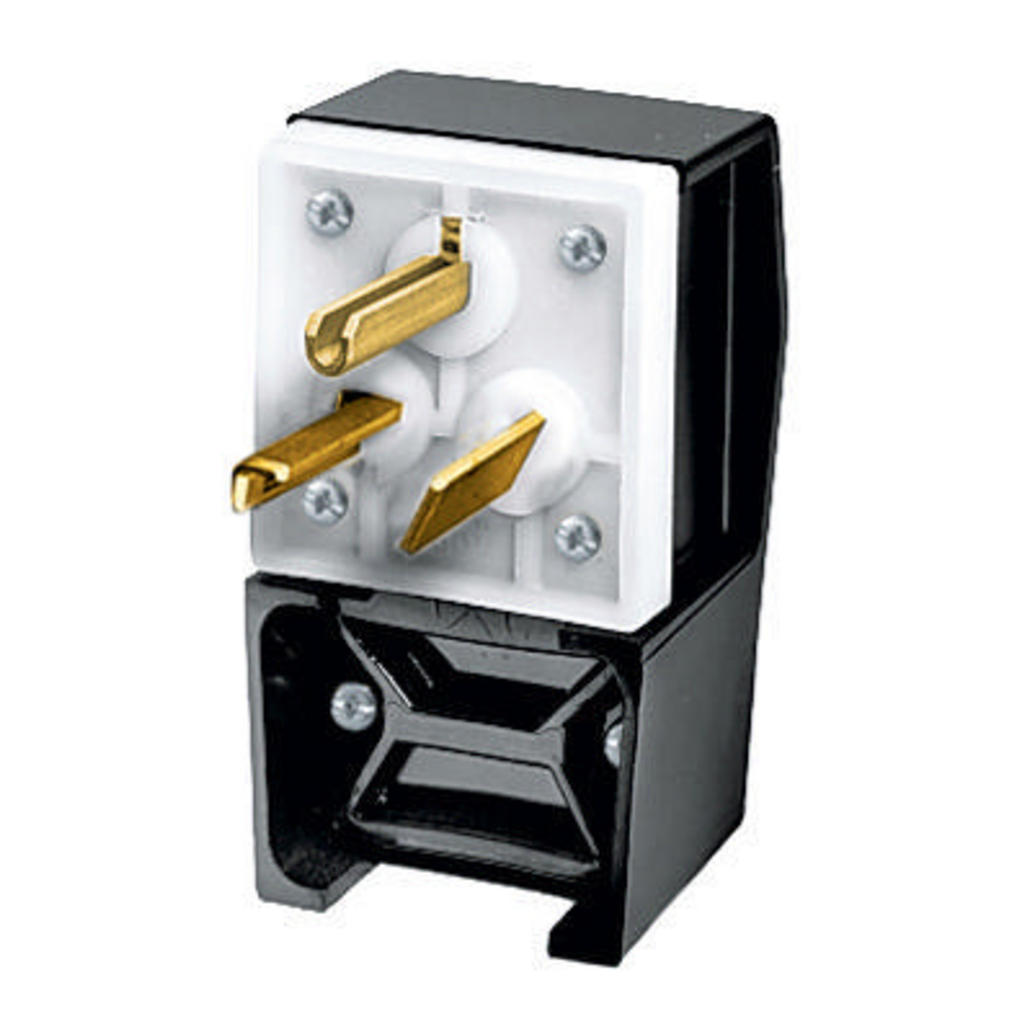

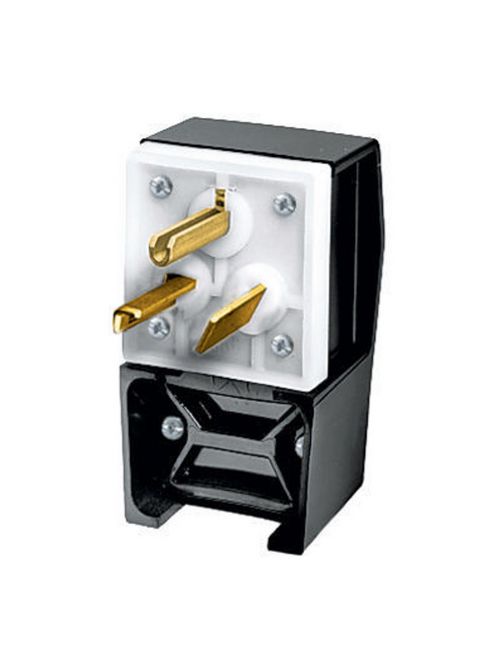

Hubbell Wiring Devices HBL9319 30 Amp 277 VAC 2-Pole 3-Wire NEMA 7-30P Black Nylon Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$104.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9319
North Coast Part # 66466

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 4.34 in x 2.75 in x 1.88 in
  • Each - Height: 2.548 in
  • Each - Length: 4.788 in
  • Each - Width: 2.858 in
  • Height: 1.88 in
  • Horsepower - Maximum: 3
  • Industry Standard(s): UL Listed To UL498 File E1706, CSA Certified To C22.2 No. 42 File 280
  • Length: 4.34 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#4 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Color: Black
  • NEMA Rating: 7-30P
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Size: 4.34 in x 2.75 in x 1.88 in
  • Standard: UL Listed To UL498 File E1706, CSA Certified To C22.2 No. 42 File 280
  • Type: Plug
  • Voltage Rating: 277 V
  • Wattage: 8310 W
  • Wire Size: #12 AWG to #4 AWG
  • Voltage Rating Description: 277 V AC
  • Width: 2.75 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358501552
Item Long Description Straight Blade Devices, Male Plug, Nylon, 4- Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 277V AC, 7-30P, Black, Single Pack.
GTiN 00783585015521
Length 4.34 in
Width 2.75 in
Size 4.34 in x 2.75 in x 1.88 in
Color Black
Voltage 277 Volt
Type Plug
Material Composite,Thermoplastic
Cord Type All Portable
Applications Industrial/Commercial
Height 1.88 in
Weight 0.55 lb
Wire Size 12-4 AWG
Wattage 8310 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard C22.2 No. 42 File 280,CSA,UL,UL498 File E1706
Environmental Conditions Indoor Dry unless protected by additional means
