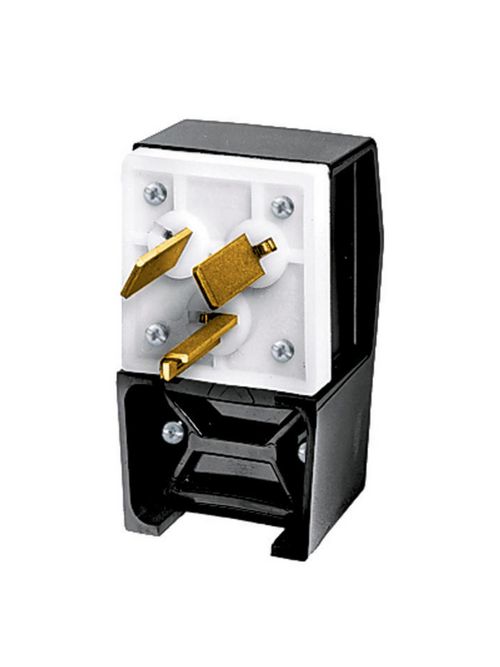

Hubbell Wiring Devices HBL9333 30 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-30P Black/White Nylon Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$70.48/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9333
North Coast Part # 66609

Specifications

General

  • Color: Black
  • Cord Range: 0.625"-1.187"
  • Horsepower - Maximum: 2
  • Material: Thermoplastic/Composite
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-2 | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12-#4 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Type: Plug
  • UPC: 783585015422

Dimensions

  • Dimensions: 4.34 in x 2.75 in x 1.88 in
  • Height: 1.88 in
  • Length: 4.34 in
  • Weight: 0.55 lb
  • Width: 2.75 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 V | 250 V
  • Voltage Rating Description: 125/250 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #4 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed To UL498 File E1706, CSA Certified To C22.2 No. 42 File 280
  • Nema Rating: 10-30P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501542
GTiN 00783585015422
Length 4.34 in
Width 2.75 in
Size 4.34 in x 2.75 in x 1.88 in
Color Black
Voltage 125 Volt
Type Standard Sized, Angled, 4-Position
Material Nylon
Cord Type Portable
Applications Industrial and Commercial
Height 1.88 in
Weight 0.55 lb
Wire Size 12-4 AWG
Wattage 7500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 30 A
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Insulgrip
Conductor Size 12-4 AWG
Mounting Type Cord
Standard C22.2 No. 42 File 280,CSA,UL,UL498 File E1706
Environmental Conditions Indoor Dry unless protected by additional means
