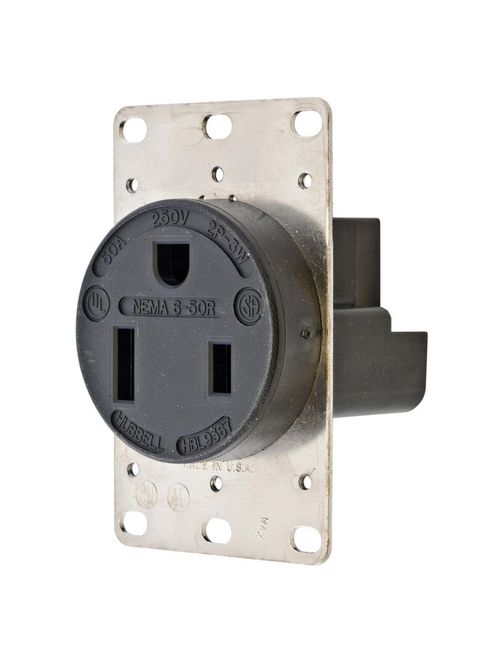

Hubbell Wiring Devices HBL9367 50 Amp 250 Volt 2-Pole 3-Wire NEMA 6-50R Black Straight Blade Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$50.12/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9367
North Coast Part # 66853

Features

  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Standard

Specifications

  • Country of Origin: PR
  • Current / Amperage Rating: 50 A
  • Dimensions: 3.28 in x 2.25 in x 2.23 in
  • Each - Height: 2.418 in
  • Each - Length: 3.978 in
  • Each - Width: 2.418 in
  • Height: 2.23 in
  • Horsepower - Maximum: 3
  • Industry Standard(s): UL, CSA, Fed Spec
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Amperage Rating: 50 A
  • Application: Heavy Duty
  • Color: Black
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 6-50R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire Grounding
  • Phase: Single Phase
  • Size: 3.28 in x 2.25 in x 2.23 in
  • Special Features: Standard
  • Standard: UL, CSA, Fed Spec
  • Type: Receptacle
  • Voltage Rating: 250 V
  • Wattage: 12500 W
  • Wire Size: #12 AWG to #4 AWG
  • Voltage Rating Description: 250 V
  • Width: 2.25 in

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585015279
Length 3.28 Inch
Finish Matte
Width 2.418 in
Size Standard
Color Black
Voltage 250 Volt
Type Heavy Duty
Material Thermoplastic
Conductor Size 10-4 AWG
Applications Heavy Duty
Mounting Type Screw, Flush
Height 2.23 Inch
Weight 0.45 lb
Wire Size 12-4 AWG
Connection Type Back and Side Wire
Wattage 12500 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired Screw Terminals
Current 50 A
Blade Dimensions 57.3 mm W x 56.8 mm D x 93.7 mm H
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Straight Blade Devices
Product UPC 78358501527
Standard CSA,Fed Spec,UL
Dielectric Strength Withstands 2,000V minimum
Country of Origin Puerto Rico
