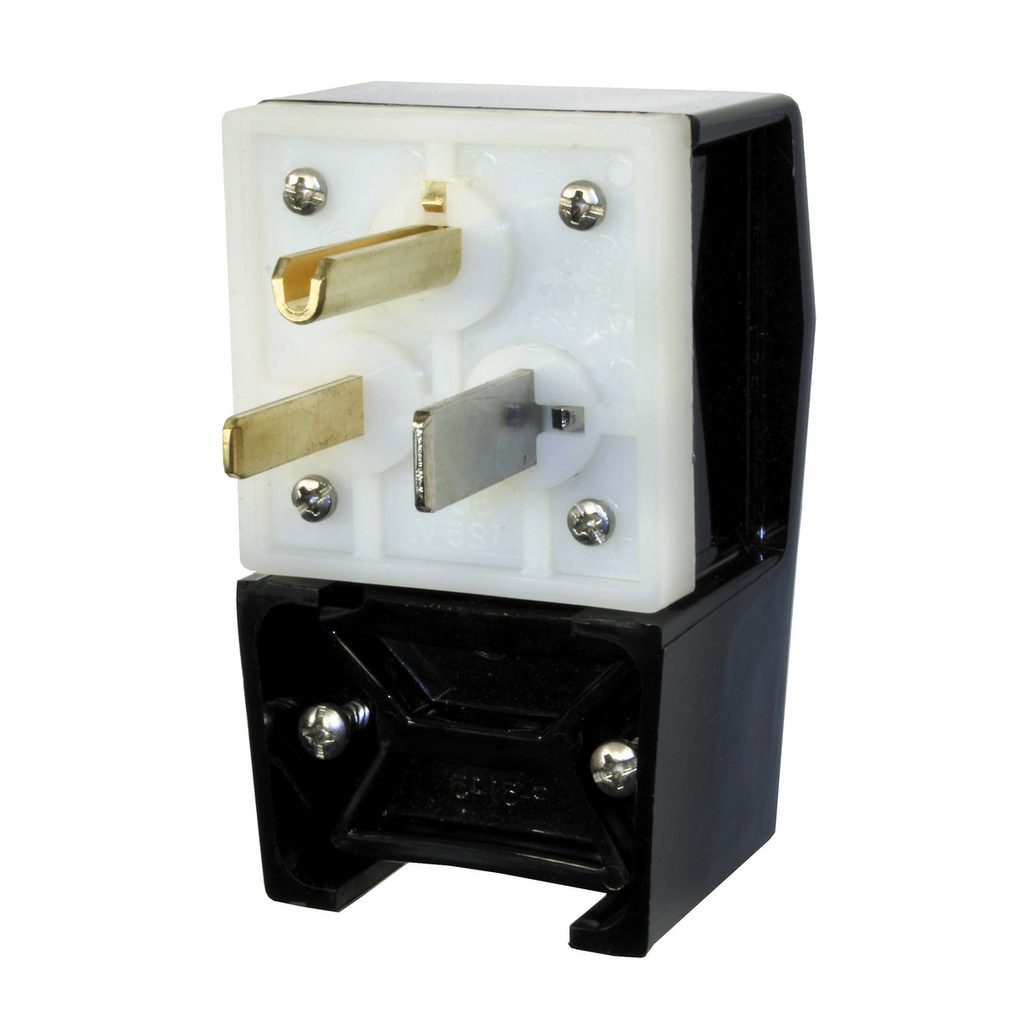

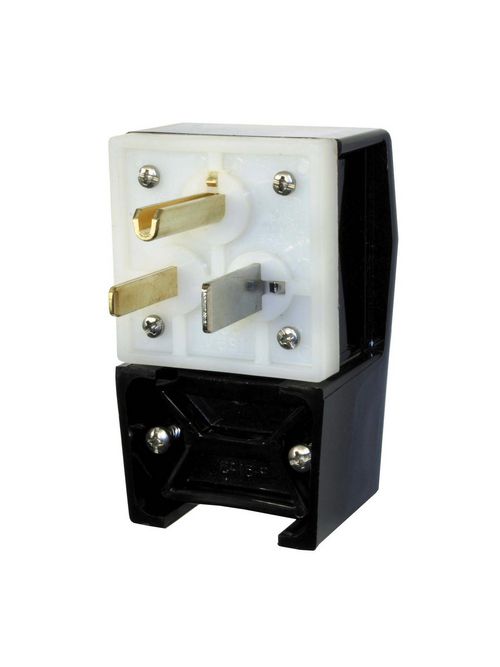

Hubbell Wiring Devices HBL9368 50 Amp 250 Volt 2-Pole 3-Wire NEMA 6-50P Black Straight Blade Angle Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$100.04/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9368
North Coast Part # 66886

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 50 A
  • Dimensions: 4.34 in x 2.75 in x 1.88 in
  • Each - Height: 2.548 in
  • Each - Length: 4.788 in
  • Each - Width: 2.858 in
  • Height: 1.88 in
  • Horsepower - Maximum: 3
  • Industry Standard(s): UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
  • Length: 4.34 in
  • Show Add To ProjectList: Yes
  • Amperage Rating: 50 A
  • Color: Black
  • NEMA Rating: 6-50P
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Size: 4.34 in x 2.75 in x 1.88 in
  • Standard: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
  • Type: Plug
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 V
  • Width: 2.75 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358501528
Item Long Description Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 50A 250V, 6-50P, Black, Single Pack.
GTiN 00783585015286
Length 4.34 in
Width 2.75 in
Size Standard Sized
Color Black/White
Voltage 250 Volt
Type Insulgrip, Standard Sized, Angled, 4 Position
Material Composite
Conductor Size 12-4 AWG
Cord Type Portable
Applications Industrial/Commercial
Mounting Type Surface
Height 1.88 in
Weight 0.55 lb
Wire Size 12-4 AWG
Wattage 12500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Yes
TC Connection Terminal Screws
Current 50 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Insulgrip
Standard C22.2 No. 42 File 280,CSA,UL,UL498 File E1706
