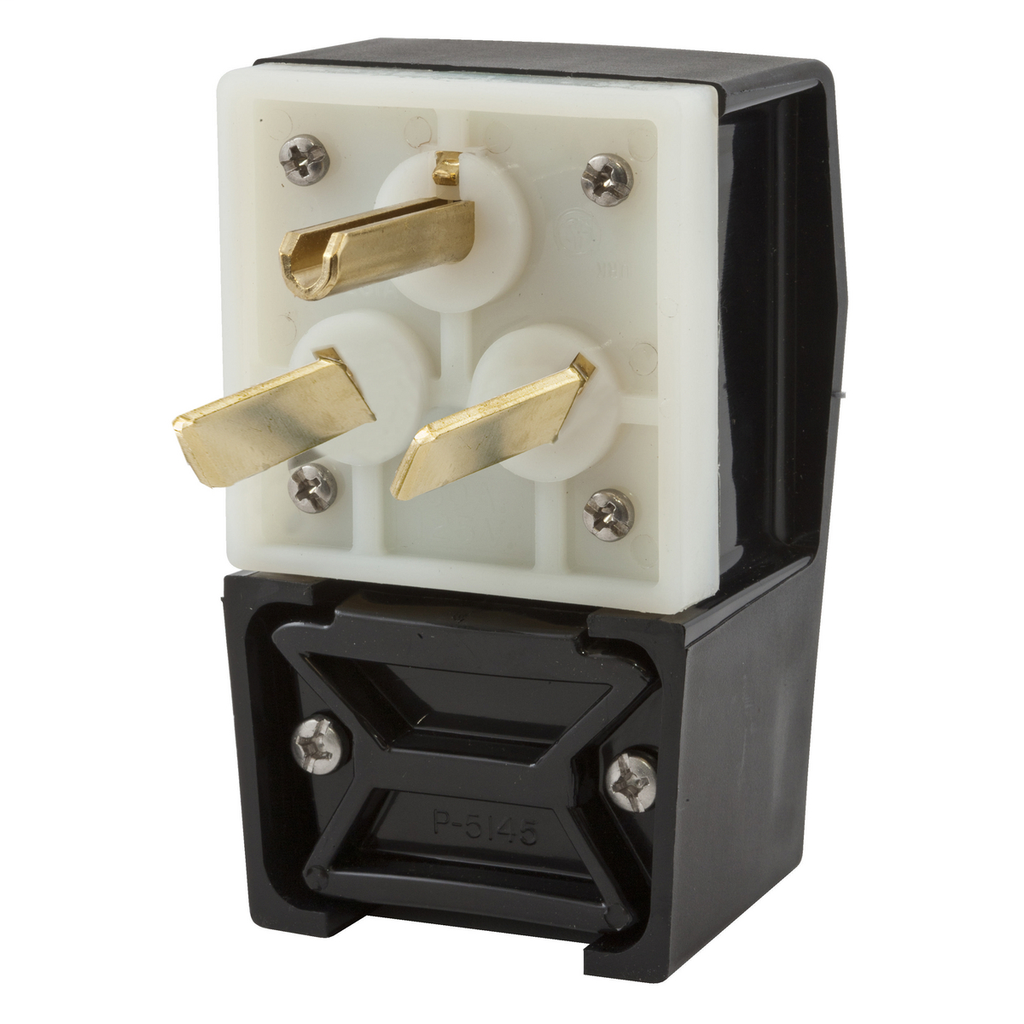

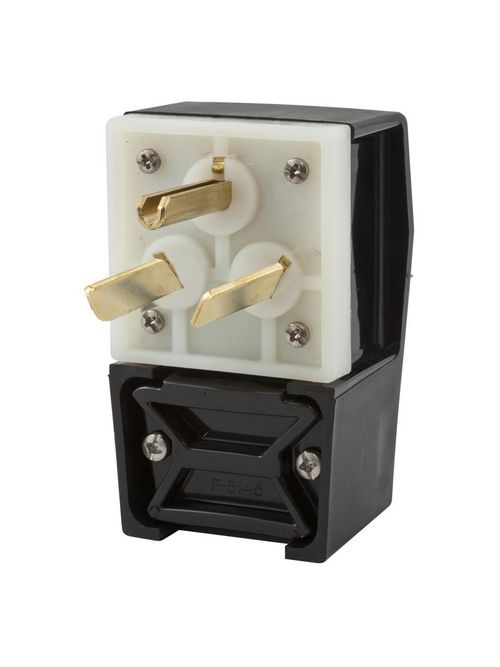

Hubbell Wiring Devices HBL9379 50 Amp 277 VAC 2-Pole 3-Wire NEMA 7-50P Black Nylon Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$112.10/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9379
North Coast Part # 66981

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 50 A
  • Dimensions: 4.34 in x 2.75 in x 1.88 in
  • Each - Height: 2.548 in
  • Each - Length: 4.788 in
  • Each - Width: 2.858 in
  • Height: 1.88 in
  • Horsepower - Maximum: 2
  • Length: 4.34 in
  • Show Add To ProjectList: Yes
  • Amperage Rating: 50 A
  • Color: Black
  • NEMA Rating: 7-50P
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Size: 4.34 in x 2.75 in x 1.88 in
  • Type: Plug
  • Voltage Rating: 277 V
  • Voltage Rating Description: 277 VAC
  • Width: 2.75 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Categories

Overview

UPC 78358501554
Item Long Description Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 50A 277V AC, 7-50P, Black, Single Pack.
GTiN 00783585015545
Length 4.34 in
Width 2.75 in
Size Standard Sized
Color Black/White
Voltage 277 Volt
Type Insulgrip, Right Angle, 4-Position
Cord Type Portable
Applications For Commercial and Industrial use
Height 1.88 in
Weight 0.55 lb
Wire Size 12-4 AWG
Wattage 13850 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 50 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Material Plastic
Conductor Size 12-4 AWG
Mounting Type Cord
