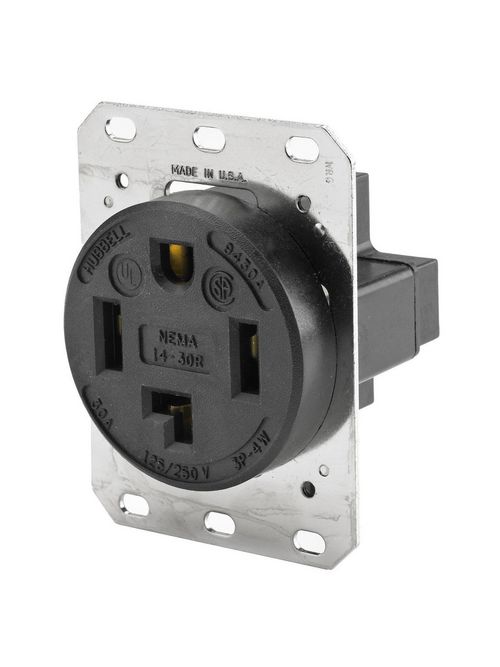

Hubbell Wiring Devices HBL9430A 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-30R Black Straight Blade Receptacle
Product image thumbnail 0
Product image thumbnail 1
$101.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9430A
North Coast Part # 209576

Features

  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts

Specifications

General

  • Application: Heavy Duty
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 2
  • Item Type: Single
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - UL 94 V-0 | Environmental - IP Suitability - IP20 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Type: Receptacle
  • UPC: 783585015293

Dimensions

  • Dimensions: 3.28 in x 2.75 in x 2.44 in
  • Display Size: Standard Sized Product
  • Height: 2.44 in
  • Length: 3.28 in
  • Weight: 0.65 lb
  • Width: 2.75 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V | 250 V
  • Voltage Rating Description: 125/250 V
  • Wattage: 7500 W

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #12 AWG to #4 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA | NEMA® WD-6 Compliant | UL Listed File E2186
  • Nema Rating: 14-30R

Logistics

  • Carton Quantity: 5

Overview

UPC 78358501529
GTiN 00783585015293
Length 3.28 in
Finish Matte
Width 2.75 in
Size Standard
Color Black
Voltage 250 Volt
Type Heavy Duty
Material Thermoplastic
Conductor Size 10-4 AWG
Applications Heavy Duty
Mounting Type Screw, Flush
Height 2.44 in
Weight 0.65 lb
Wire Size 12-4 AWG
Connection Type Back and Side Wire
Wattage 7500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Back and Side Wired Screw Terminals
Current 30 A
Blade Dimensions 69.9 mm W x 61.9 mm D x 93.7 mm H
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 3 Pole
Number of Wires 4-Wire Grounding
Sub Brand Straight Blade Devices
Standard CSA,File E2186,NEMA WD-6,UL
Dielectric Strength Withstands 2,000V minimum
