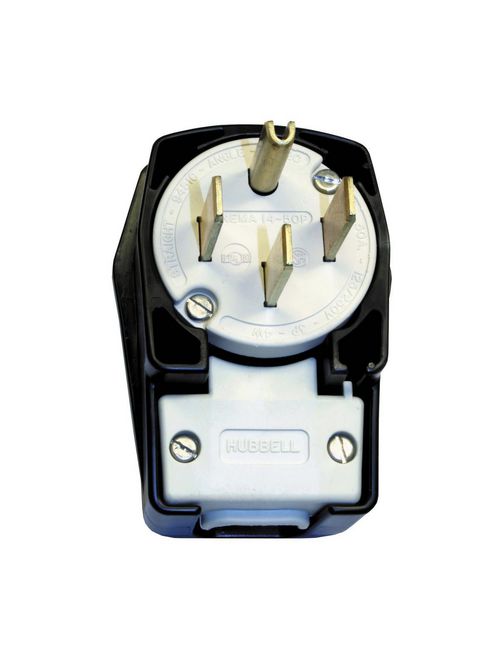

Hubbell Wiring Devices HBL9452C 50 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-50P Black Nylon Straight Blade Plug
$120.49/ea
In Stock | 4 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9452C
North Coast Part # 211290

Specifications

General

  • Color: Black
  • Cord Range: 0.625"-1.310"
  • Horsepower - Maximum: 3
  • Material: Nylon
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Type: Plug
  • UPC: 783585015330

Dimensions

  • Dimensions: 4.5 in x 3.38 in x 2.37 in
  • Height: 2.37 in
  • Length: 4.5 in
  • Weight: 0.8 lb
  • Width: 3.38 in

Electrical Ratings

  • Amperage Rating: 50 A
  • Current / Amperage Rating: 50 A
  • Current Rating: 50 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 V | 250 V
  • Voltage Rating Description: 125/250 V

Conductor Related

  • Number Of Wires: 4-Wire

Certifications and Compliance

  • Industry Standard(s): UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
  • Nema Rating: 14-50P

Logistics

  • Carton Quantity: 5

Overview

UPC 78358501533
GTiN 00783585015330
Length 4.5 in
Width 3.38 in
Size Standard Sized
Color Black/White
Voltage 125 Volt
Type Insulgrip, Standard Sized, Angled, 4 Position
Material Composite
Conductor Size 12-4 AWG
Cord Type Portable
Applications Industrial/Commercial
Mounting Type Surface
Height 2.37 in
Weight 0.8 lb
Wire Size 12-4 AWG
Wattage 12,500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
Grounding Yes
TC Connection Terminal Screws
Current 50 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Insulgrip
Standard C22.2 No. 42 File 280,CSA,UL,UL498 File E1706
