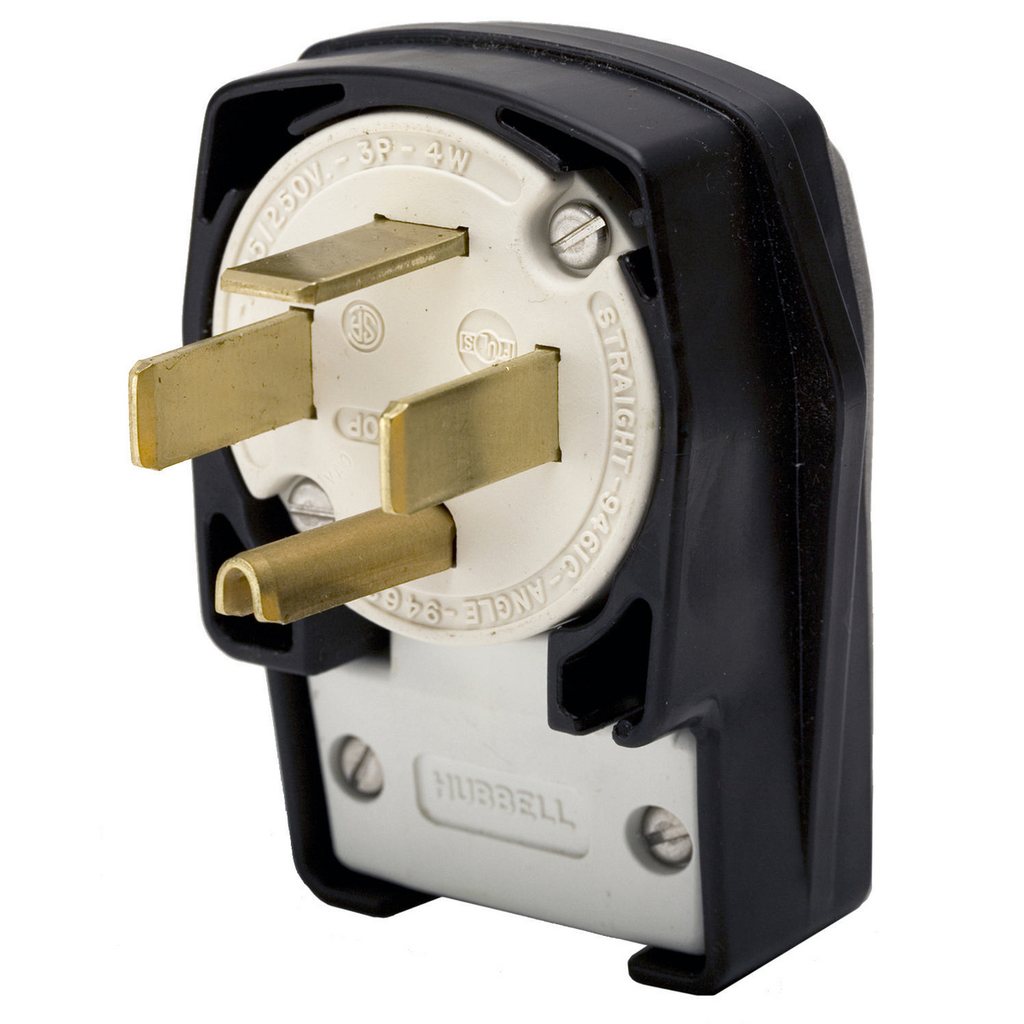

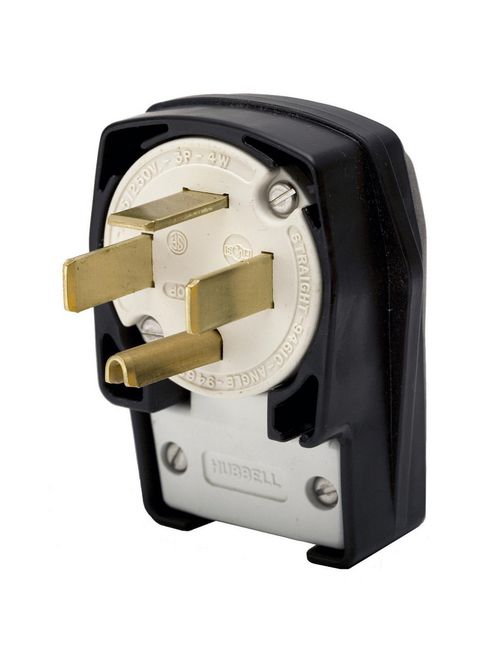

Hubbell Wiring Devices HBL9462C 60 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-60P Black Nylon Straight Blade Angle Plug
$140.94/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL9462C
North Coast Part # 212446

Specifications

General

  • Color: Black
  • Cord Range: 0.625"-1.310"
  • Horsepower - Maximum: 3
  • Material: Nylon
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Type: Plug
  • UPC: 783585015361

Dimensions

  • Dimensions: 3.38 in x 4.5 in x 2.37 in
  • Height: 2.37 in
  • Length: 3.38 in
  • Weight: 0.85 lb
  • Width: 4.5 in

Electrical Ratings

  • Amperage Rating: 60 A
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 V | 250 V
  • Voltage Rating Description: 125/250 V

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #12 AWG to #4 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed To UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 Requirements, Certified To CSA, C22.2, No. 42 File 285
  • Nema Rating: 14-60P

Logistics

  • Carton Quantity: 5

Overview

UPC 78358501536
GTiN 00783585015361
Length 3.38 in
Width 4.5 in
Size Standard Sized
Color Black/White
Voltage 250 Volt
Type Insulgrip
Material Nylon
Cord Type All Portable
Applications Industrial/Commercial
Height 2.37 in
Weight 0.85 lb
Wire Size 12-4 AWG
Wattage 15k Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Terminal Screws
Current 60 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Guide RTRT Fed Spec WC596G,Meets WD-6,No. 42 File 285,UL,UL 498 File E2186
