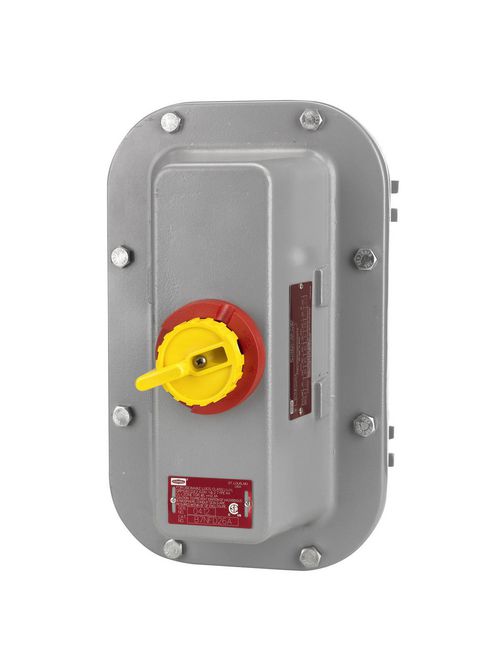

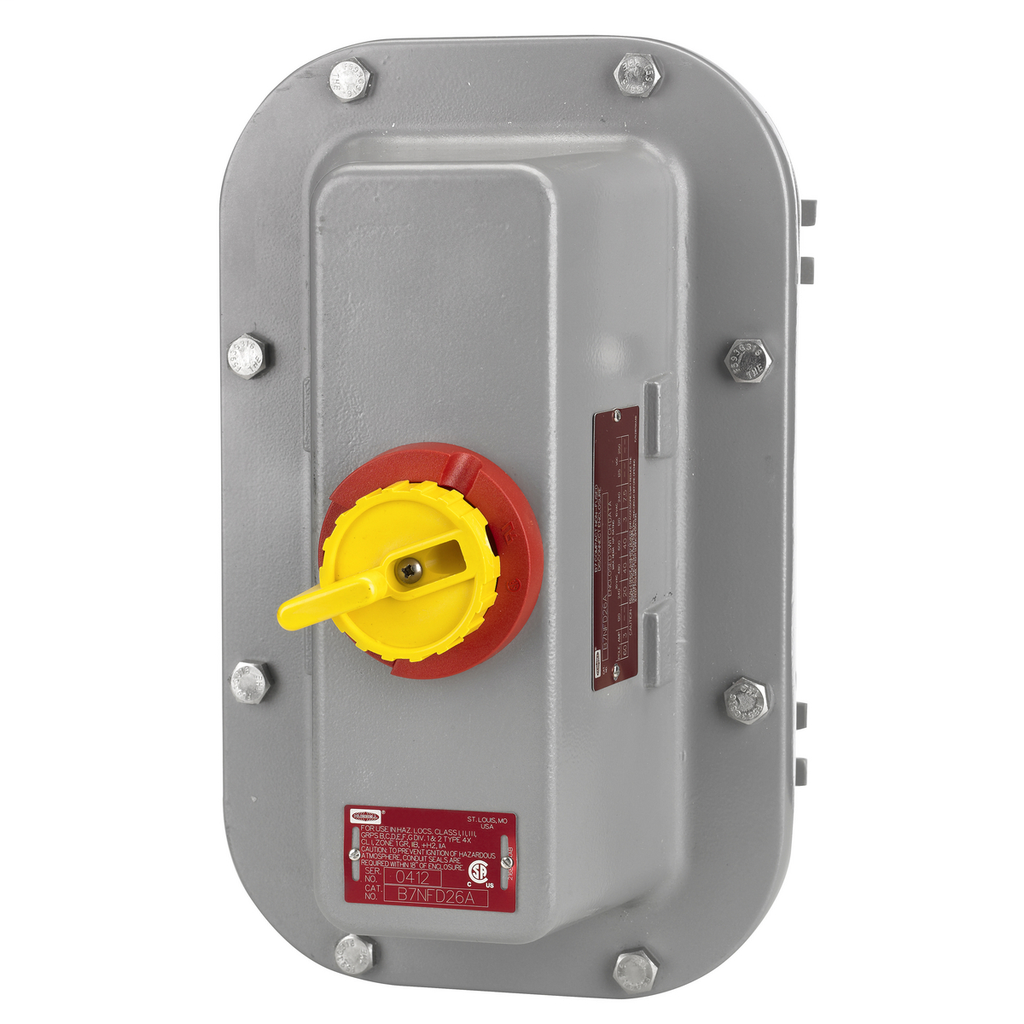

HWDK HBLB7NFD26AA NONFUSED HAZ LOC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,413.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLB7NFD26AA
North Coast Part # 1017921

Features

  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Large visible rotary handle with “On-Off” indicator
  • Rotary handle style operating mechanism with lockout provision

Specifications

  • Color: Gray
  • Country of Origin: US
  • Current / Amperage Rating: 60 A
  • Dimensions: 13.06 in x 8.13 in x 7.81 in
  • Each - Height: 10.900 in
  • Each - Length: 14.900 in
  • Each - Width: 10.400 in
  • Height: 7.81 in
  • Horsepower - Maximum: 40
  • Industry Standard(s): UL98 Certified
  • Length: 13.06 in
  • Show Add To ProjectList: Yes
  • Amperage Rating: 60 A
  • Size: 13.06 in x 8.13 in x 7.81 in
  • Standard: UL98 Certified
  • Type: Switch with Aux Contact
  • Width: 8.13 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358524263
Item Long Description Disconnect Switches, Non Fused, Hazardous Location, 60A 600V AC, 3-Pole with Aux Contact
GTiN 00783585242637
Length 13.06 in
Width 8.13 in
Size 13.06 in x 8.13 in x 7.81 in
Color Gray
Operating Temperature Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Type Switch with Aux Contact
Material Aluminum
Product Series Disconnect Switch
Applications Extra Heavy Duty Industrial
Height 7.81 in
Wattage 36 kW
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Actuator Lever
Contact Configuration Two Position
Current 60 A
Contact Rating 60A
Number of Poles 3 Pole
Enclosure Metallic
Operating Cycles 6k
Sub Brand Circuit-Lock
Standard UL98
Voltage 600 Volt
Environmental Conditions Indoors or Outdoors or Hazardous Atmosphere
Action Snap
