HCI HBLDFBN SINGLEPOLE, DOUBLE FEMA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$68.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLDFBN
North Coast Part # 543863

Features

  • Standard Product

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 400 A
  • Each - Height: 1.600 in
  • Each - Length: 4.700 in
  • Each - Width: 1.600 in
  • Industry Standard(s): UL 498 And UL1691
  • Performance: Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
  • Show Add To ProjectList: Yes
  • Amperage Rating: 400 A
  • Application: High Ampacity
  • Color: Brown
  • Insulation: Insulated Body
  • Number of Pins: 1) In, 1) Out
  • Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Special Features: Standard Product
  • Standard: UL 498 And UL1691
  • Type: Gender Reversing
  • Wattage: 360000
  • Voltage Rating Description: 600V AC/DC

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358500339

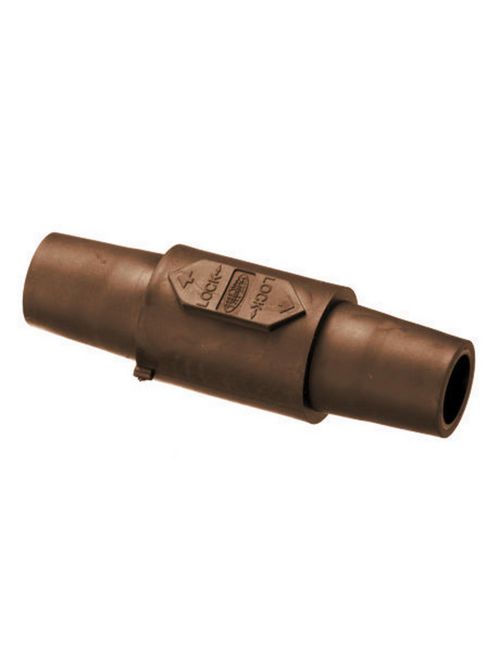

Item Long Description Heavy Duty Products, Single Pole Devices, Industrial Grade, Double Female, Coupler, 400A 600V AC/DC, Single Conductor, Pre-Wired, Brown
GTiN 00783585003399
Length 4.700 in
Width 1.600 in
Color Brown
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Gender Reversing
Material Brass,Elastomer
Product Series Series 16
Applications High Ampacity
Height 1.600 in
Wattage 360000 Watt
Number of Pins 1) In, 1) Out
Family Brand Name Hubbell Wiring Device Kellems
Current 400 A
Sub Brand Single Pole
Standard UL 498,UL1691
Voltage 250/600 Volt
