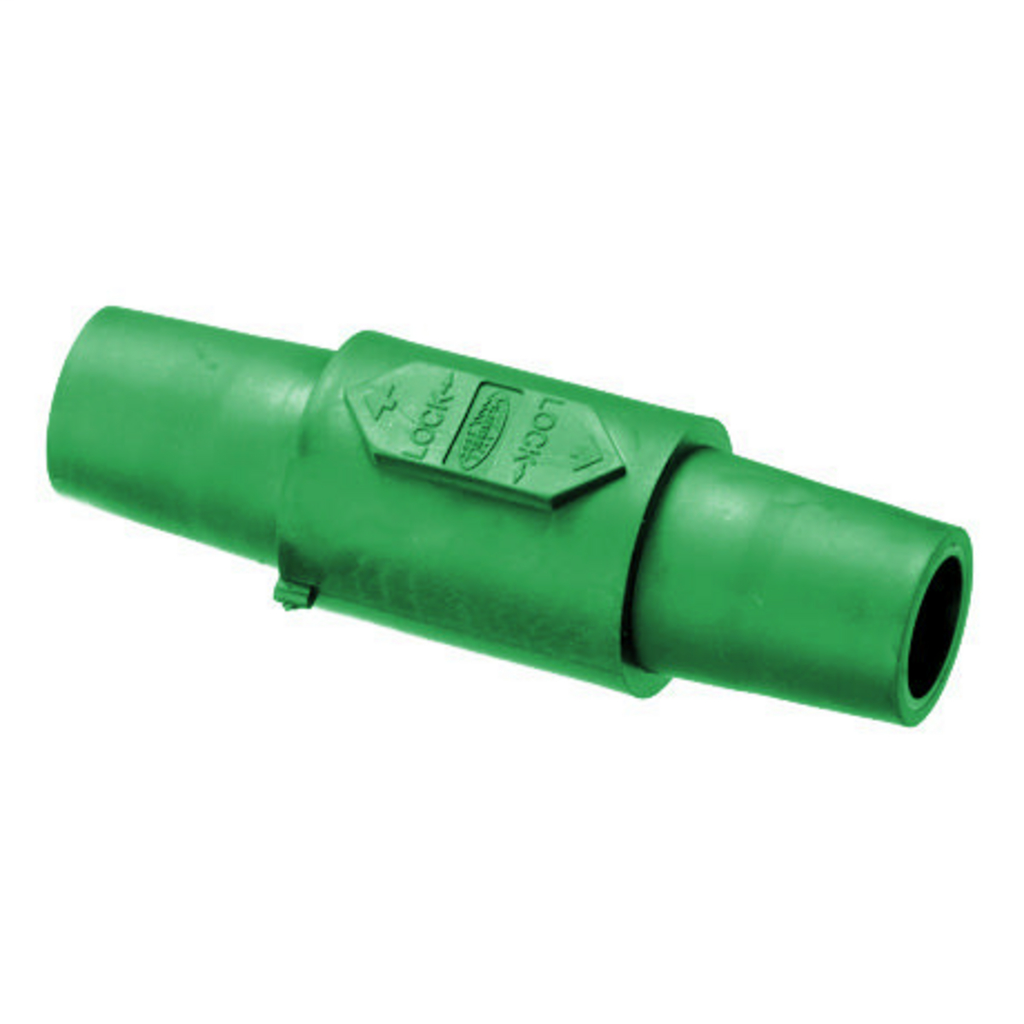

Hubbell Wiring Devices HBLDFGN 1-Pole Green Double Female Connector
$64.48/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLDFGN
North Coast Part # 543867

Specifications

General

  • Application: High Ampacity
  • Color: Green
  • Insulation: Insulated Body
  • Item Type: Gender Reverser
  • Material: Brass and Elastomer
  • Number Of Pins: 1) In, 1) Out
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Performance: Electrical - Amperage Rating - 400A Maximum | Electrical - Voltage Ratings - 600V AC Maximum | 250V DC Maximum | Mechanical - Product Identification - Ratings are a permanent part of the device
  • Series: Series 16
  • Style: Double Female
  • Type: Gender Reversing
  • UPC: 783585003337

Electrical Ratings

  • Amperage Rating: 400 A
  • Current / Amperage Rating: 400 A
  • Current Rating: 400 A
  • Voltage Rating Description: 600V AC/DC
  • Wattage: 360000

Certifications and Compliance

  • Industry Standard(s): UL 498 And UL1691

Logistics

  • Carton Quantity: 10

Overview

UPC 78358500333
GTiN 00783585003337
Length 5.000 in
Width 1.600 in
Color Green
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Gender Reversing
Material Brass,Elastomer
Product Series Series 16
Applications High Ampacity
Height 1.200 in
Wattage 360,000 Watt
Number of Pins 1) In, 1) Out
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Current 400 A
Sub Brand Single Pole
Standard UL 498,UL1691
Voltage null
