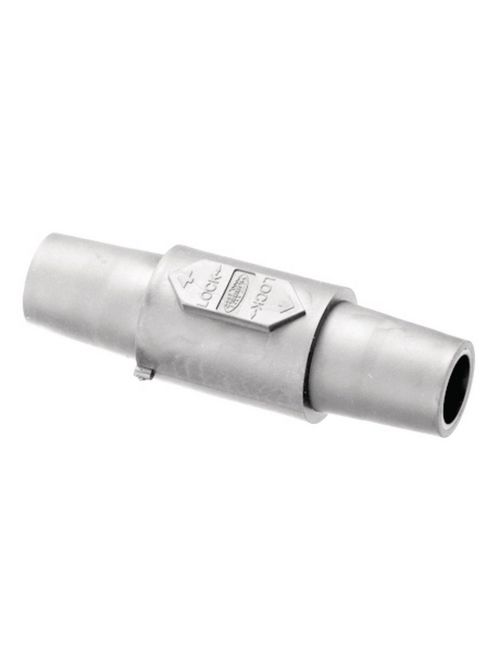

Hubbell Wiring Devices HBLDFW 1-Pole White Double Female Connector
Product image thumbnail 0
Product image thumbnail 1
$66.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLDFW
North Coast Part # 543868

Specifications

General

  • Application: High Ampacity
  • Color: White
  • Insulation: Insulated Body
  • Item Type: Gender Reverser
  • Material: Brass and Elastomer
  • Number Of Pins: 1) In, 1) Out
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Performance: Electrical - Amperage Rating - 400A Maximum | Electrical - Voltage Ratings - 600V AC Maximum | 250V DC Maximum | Mechanical - Product Identification - Ratings are a permanent part of the device
  • Series: Series 16
  • Style: Double Female
  • Type: Gender Reversing
  • UPC: 783585002798

Electrical Ratings

  • Amperage Rating: 400 A
  • Current / Amperage Rating: 400 A
  • Current Rating: 400 A
  • Voltage Rating Description: 600V AC/DC
  • Wattage: 360000

Certifications and Compliance

  • Industry Standard(s): UL 498 And UL1691

Logistics

  • Carton Quantity: 10

Overview

UPC 78358500279
GTiN 00783585002798
Length 4.800 in
Width 2.000 in
Color White
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Gender Reversing
Material Brass,Elastomer
Product Series Series 16
Applications High Ampacity
Height 1.500 in
Wattage 360000 Watt
Number of Pins 1) In, 1) Out
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Current 400 A
Sub Brand Single Pole
Standard UL 498,UL1691
Voltage 250/600 Volt
