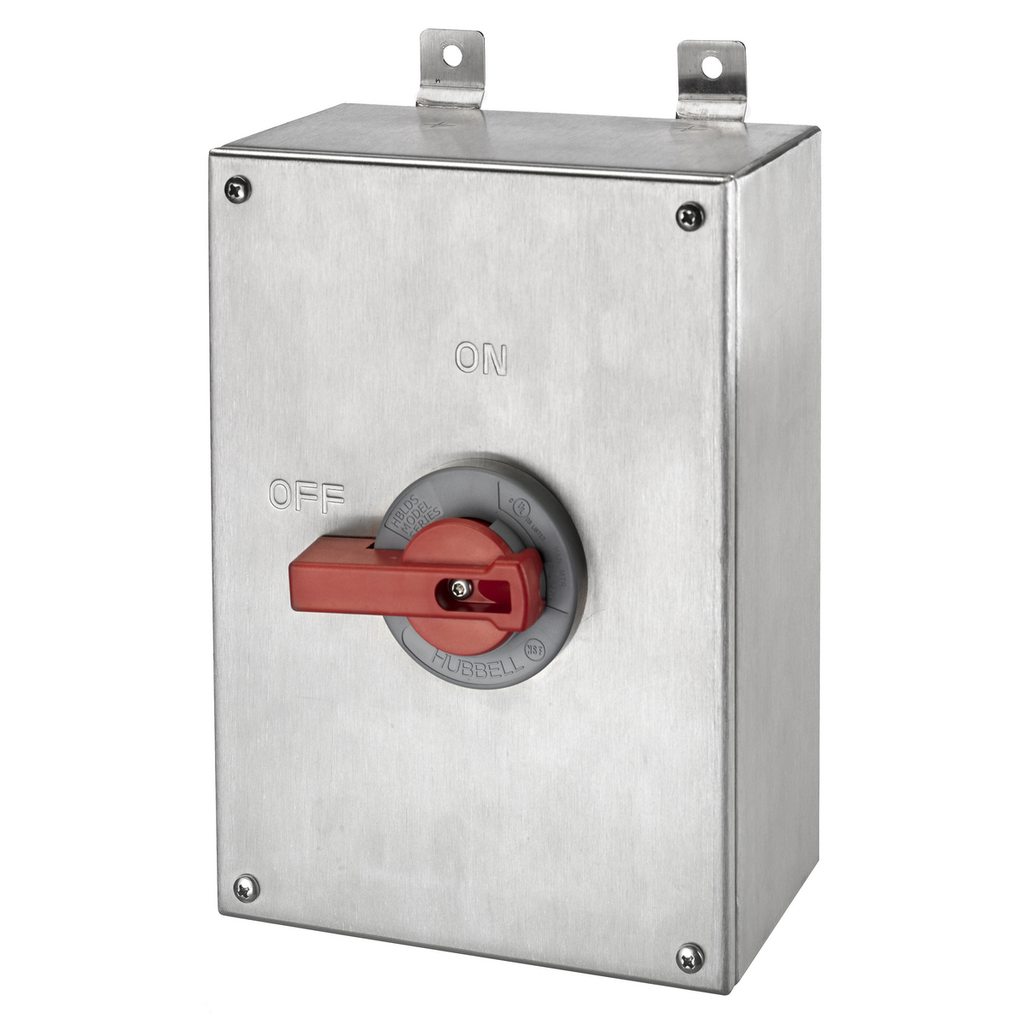

HWDK HBLDS10SS DISCONNECT, 100A UNF
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,362.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLDS10SS
North Coast Part # 1160701

Features

  • Molded-in conduit opening and field installed hub
  • Internal frame automatically bonds all grounds
  • Reversible interior accommodates top or bottom conduit opening

Performance

  • Environmental - Flammability - UL94-5VA and V0 Classification
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
  • Electrical - Dielectric Voltage - Withstands 3000V AC minimum
  • Mechanical - Product Identification - Identification and ratings are part of external label
  • Mechanical - Impact Resistance - In accordance with UL 746C
  • Environmental - UV Resistance - All materials are UV stabilized
  • Electrical - Max. Working Voltage - 600V AC RMS
  • Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact
  • Mechanical - Mounting - Stainless Steel - Feet are fixed
  • Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions

Industry Standard(s)

  • UL Listed

Specifications

  • Amperage Rating: 100 A
  • Application: Labelless
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Dielectric Strength: Withstands 3000V AC minimum
  • Enclosure Type: Type 4X, IP69k
  • Height: 5.39 in
  • Length: 11.63 in
  • Minimum Order Quantity: 1 EA
  • Mounting Method: Feet are fixed
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • SAP Material Group 5: A10
  • Series: Non-Fused
  • Style: Heavy Duty
  • Type: Disconnect Switches
  • Width: 7.3 in
  • EU RoHS Indicator: Yes
  • Each - Length: 13.600 in
  • Each - Height: 7.800 in
  • Each - Width: 9.100 in
  • Enclosure: Type 4X, IP69k
  • Size: 11.63 in x 7.3 in x 5.39 in
  • Standard: UL Listed

Overview

UPC 78358537258
GTiN 00783585372587
Length 11.63 in
Width 7.3 in
Size 11.63 in x 7.3 in x 5.39 in
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Type Disconnect Switches
Product Series Fused,Non
Applications Labelless
Height 5.39 in
Wattage 60000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Actuator Lever
Contact Configuration Two Position
Current 100 A
Contact Rating 100A
Number of Poles 3 Pole
Enclosure Type 4X, IP69k
Operating Cycles 6k
Sub Brand Circuit-Lock
Voltage 600 Volt
Material Composite
Environmental Conditions NEMA 4X
Action Snap
