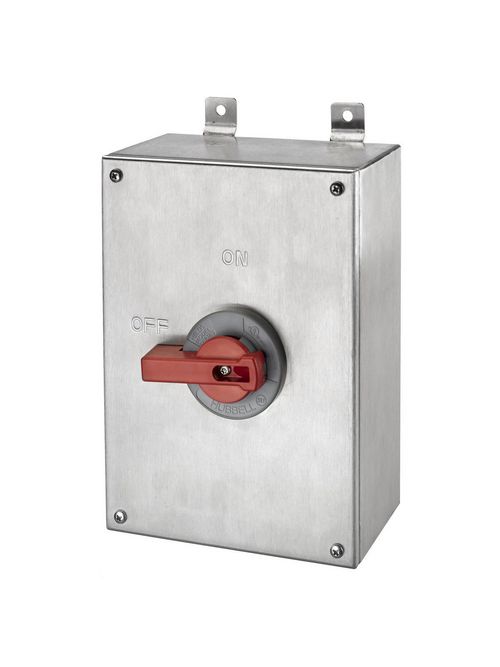

HWDK HBLDS10SSAC DISCONNECT, 100A U
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,435.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLDS10SSAC
North Coast Part # 879135

Features

  • Molded-in conduit opening and field installed hub
  • Internal frame automatically bonds all grounds
  • Reversible interior accommodates top or bottom conduit opening

Specifications

  • Country of Origin: PL
  • Current / Amperage Rating: 100 A
  • Dimensions: 11.63 in x 7.3 in x 5.39 in
  • Each - Height: 7.800 in
  • Each - Length: 13.500 in
  • Each - Width: 9.100 in
  • Height: 5.39 in
  • Industry Standard(s): UL Listed
  • Ingress Protection: IP69K
  • Length: 11.63 in
  • Mounting Method: Feet are fixed
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Amperage Rating: 100 A
  • Application: Labelless
  • Enclosure: Type 4X, IP69k
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 11.63 in x 7.3 in x 5.39 in
  • Standard: UL Listed
  • Type: Disconnect Switches
  • Width: 7.3 in
  • Current Rating: 100 A
  • Dielectric Strength: Withstands 3000V AC minimum
  • Phase: Three Phase
  • Enclosure Type: Type 4X, IP69k
  • Series: Non-Fused
  • Style: Heavy Duty

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585372594
Length 11.63 Inch
Width 7.3 in
Size 11.63 in x 7.3 in x 5.39 in
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Type Non-Reversing
Product Series Fused,Non
Applications Labelless
Height 7.8 Inch
Wattage 60000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Actuator Lever
Contact Configuration Two Position
Current 100 A
Contact Rating 100A
Number of Poles 3 Pole
Enclosure Type 4X, IP69k
Operating Cycles 6k
Sub Brand Circuit-Lock
Product UPC 78358537259
Voltage 600 Volt
Material Composite
Environmental Conditions NEMA 4X
Action Snap
Country of Origin Poland
