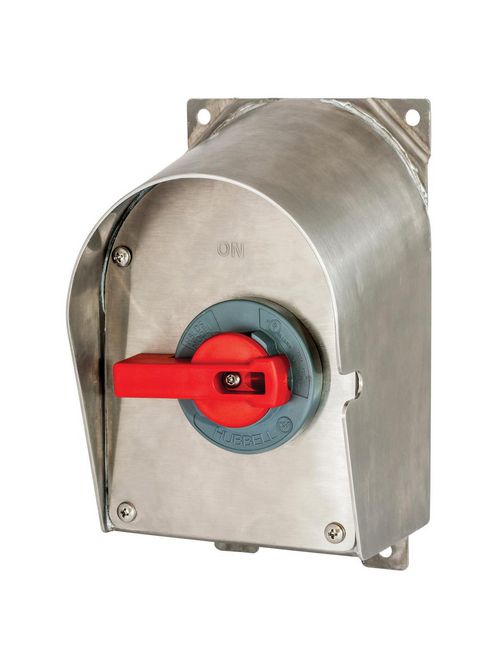

Hubbell Wiring Devices HBLDS6SSR 60 Amp Stainless Steel Unfused Disconnect Switch Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,534.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLDS6SSR
North Coast Part # 1097250

Features

Performance

  • Mechanical - Product Identification - Identification and ratings are part of external label
  • Environmental - UV Resistance - All materials are UV stabilized
  • Mechanical - Impact Resistance - In accordance with UL 746C
  • Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact
  • Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Electrical - Dielectric Voltage - Withstands 3000V AC minimum
  • Electrical - Max. Working Voltage - 600V AC RMS
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
  • Environmental - Flammability - UL94-5VA and V0 Classification
  • Mechanical - Mounting - Stainless Steel - Feet are fixed

Specifications

  • Amperage Rating: 60 A
  • Application: Labelless
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Dielectric Strength: Withstands 3000V AC minimum
  • Enclosure Type: Type 4X, IP69k
  • Height: 6.1 in
  • Length: 11.41 in
  • Minimum Order Quantity: 1 EA
  • Mounting Method: Feet are fixed
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • SAP Material Group 5: A10
  • Series: Non-Fused
  • Style: Heavy Duty
  • Type: Disconnect Switches
  • Width: 7.66 in
  • EU RoHS Indicator: Contact Manufacturer
  • Each - Length: 9.200 in
  • Each - Height: 7.600 in
  • Each - Width: 13.300 in

Overview

UPC 78358554160
GTiN 00783585541600
Length 11.41 in
Width 13.300 in
Size 11.41 in x 7.66 in x 6.1 in
Type Standard, Unfused, Sloped Top
Product Series Fused,Non
Applications For Motor Starting without Overload Protection
Height 6.1 in
Temperature Rating -40 C
Family Brand Name Hubbell Wiring Device Kellems
Number of Phases 3 Phase
Enclosure Type Type 4X, IP69k
Power Rating 36,000 W
TC Connection Pressure Screw Terminals
Current 60 A
Number of Poles 3 Pole
Sub Brand Motor Disconnects
Mounting Type Screw
Connection Type Pressure Screw
Housing Material Stainless Steel
Load Rating 36000 W
Voltage 600 Volt
