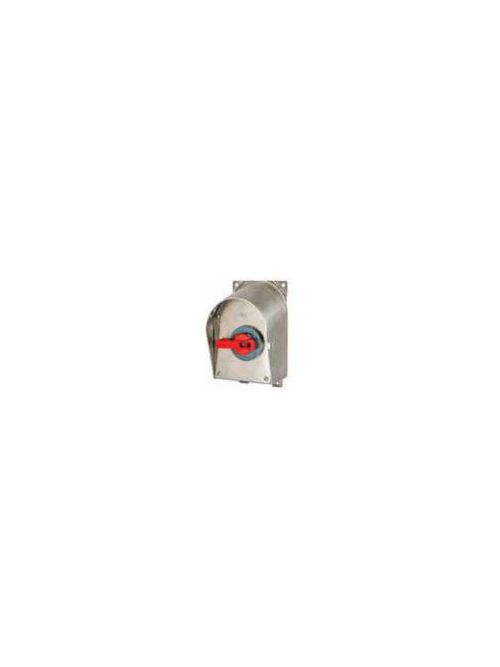

Hubbell Wiring Devices HBLDS6SSRAC 60 Amp Stainless Steel Sloped Top Unfused Disconnect Switch Enclosure with Auxiliary Contact
Product image thumbnail 0
Product image thumbnail 1
$1,599.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLDS6SSRAC
North Coast Part # 1830953

Features

Performance

  • Environmental - UV Resistance - All materials are UV stabilized
  • Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact
  • Electrical - Max. Working Voltage - 600V AC RMS
  • Mechanical - Impact Resistance - In accordance with UL 746C
  • Mechanical - Product Identification - Identification and ratings are part of external label
  • Electrical - Dielectric Voltage - Withstands 3000V AC minimum
  • Environmental - Flammability - UL94-5VA and V0 Classification
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
  • Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Mechanical - Mounting - Stainless Steel - Feet are fixed

Specifications

  • Amperage Rating: 60 A
  • Application: Labelless
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Dielectric Strength: Withstands 3000V AC minimum
  • Enclosure Type: Type 4X, IP69k
  • Height: 6.1 in
  • Length: 11.41 in
  • Minimum Order Quantity: 1 EA
  • Mounting Method: Feet are fixed
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • SAP Material Group 5: A10
  • Series: Non-Fused
  • Style: Heavy Duty
  • Type: Disconnect Switches
  • Width: 7.66 in
  • EU RoHS Indicator: Contact Manufacturer
  • Each - Length: 12.495 in
  • Each - Height: 4.245 in
  • Each - Width: 10.185 in

Overview

UPC 78358554161
GTiN 00783585541617
Length 11.41 in
Width 10.185 in
Size 11.41 in x 7.66 in x 6.1 in
Type Disconnect Switches
Product Series Fused,Non
Applications Labelless
Height 4.245 in
Temperature Rating Minimum Continuous -40 Deg C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Number of Phases 3 Phase
Enclosure Type Type 4X, IP69k
Power Rating 36,000 W
TC Connection Pressure Screw Terminals
Current 60 A
Number of Poles 3 Pole
Sub Brand Motor Disconnects
Voltage 600 Volt
