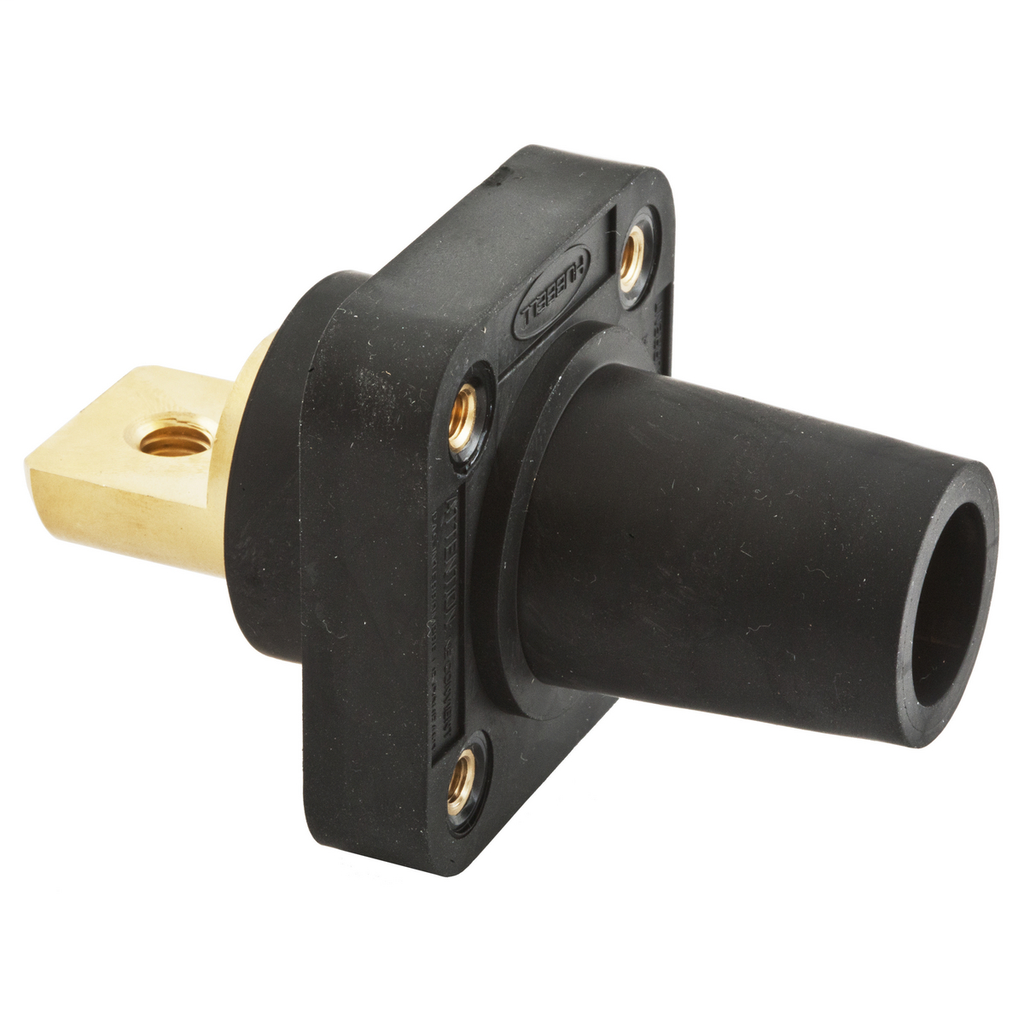

HWDK HBLFRBBK SINGLEPOLE, 300/400A
$42.74/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLFRBBK
North Coast Part # 1019400

Specifications

General

  • Application: High Ampacity Connections
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Flanged Single
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 1-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage Rating - 400A Maximum | Electrical - Voltage Ratings - 600V AC Maximum | 250V DC Maximum | Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 | Mechanical - Product Identification - Ratings are a permanent part of device | Mechanical - Terminal Accommodation - #4 to 4/0 AWG
  • Series: Series 16
  • Style: Bus Bar Mount Female
  • Type: Receptacle
  • UPC: 783585192635

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 400 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 400 A
  • Current Rating: 400 A
  • Phase: Single Phase
  • Voltage Rating Description: 600V AC/DC
  • Wattage: 240000

Conductor Related

  • Wire Size: #4 AWG to #4/0 AWG

Certifications and Compliance

  • Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70 | UL and cUL Listed | UL Enclosure Types 3R, 4X, 12
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 25

Overview

UPC 78358519263
GTiN 00783585192635
Length 3.600 in
Width 2.400 in
Size Standard Sized Product
Color Black
Type Receptacle
Material Thermoplastic
Product Series Series 16
Applications High Ampacity Connections
Height 2.400 in
Wire Size 4-0000 AWG
Wattage 240,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Screw Terminals
Current 400 A
Number of Poles 1 Pole
Sub Brand Single Pin Female
Standard 12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Voltage null
Environmental Conditions Indoor Dry Unless Protected By Additional Means
