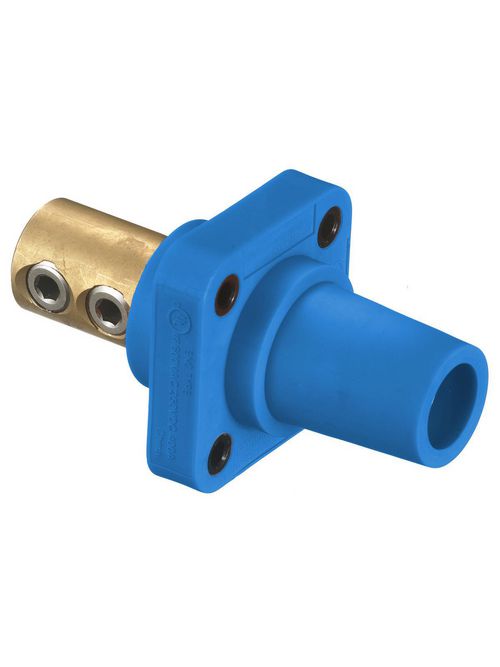

Hubbell Wiring Devices HBLFRBL 400 Amp 1-Pole Blue Double Set Screw Female Cam Type Receptacle
Product image thumbnail 0
Product image thumbnail 1
$55.12/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBLFRBL
North Coast Part # 599526

Specifications

General

  • Application: High Ampacity Connections
  • Color: Blue
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Panel Mount Receptacle
  • Material: Elastomer / Elastomeric
  • Material - Mounting Hardware: Threaded Thru-Hole
  • Number Of Poles: 1-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage Rating - 400A Maximum | Electrical - Voltage Ratings - 600V AC Maximum | 250V DC Maximum | Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 | Mechanical - Product Identification - Ratings are a permanent part of device | Mechanical - Terminal Accommodation - #4 to 4/0 AWG
  • Series: Series 16
  • Style: Female Double Set Screw
  • Type: Receptacle
  • UPC: 783585112602

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 400 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 400 A
  • Current Rating: 400 A
  • Phase: Single Phase
  • Voltage Rating Description: 600V AC/DC
  • Wattage: 240000

Conductor Related

  • Number Of Wires: 1-Wire
  • Wire Size: #4 AWG to #4/0 AWG

Certifications and Compliance

  • Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70 | UL and cUL Listed | UL Enclosure Types 3R, 4X, 12
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 10

Overview

UPC 78358511260
GTiN 00783585112602
Length 5.000 in
Width 2.800 in
Size Standard Sized Product
Color Blue
Type Panel Mount
Material Elastomer/Composite
Conductor Size 4-4/0 AWG
Product Series Series 16
Applications High Ampacity Connections
Mounting Type Threaded Through-Hole
Height 2.400 in
Wire Size 4-0000 AWG
Wattage 240000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 400 A
Number of Poles 1 Pole
Number of Wires 1
Sub Brand Single Pin Female
Standard 12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Voltage 250 VDC/600 VAC
Environmental Conditions Indoor Dry Unless Protected By Additional Means
